- Page 1 OPERATION MANUAL SERIES MODEL MTe55 RAMMER (HONDA GXE2.0S 2.4 HP ELECTRIC MOTOR) Revision #1 (12/15/22) THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.
- Page 2 @ www.discount-equipment.com Select an option below to find your Equipment We sell worldwide for the brands: Genie, Terex, JLG, MultiQuip, Mikasa, Essick, Whiteman, Mayco, Toro Stone, Diamond Products, Generac Magnum, Airman, Haulotte, Barreto, Power Blanket, Nifty Lift, Atlas Copco, Chicago Pneumatic, Allmand, Miller Curber, Skyjack, Lull,...
-
Page 3: Proposition 65 Warning
PROPOSITION 65 WARNING PAGE 2 — MTe55 RAMMER • OPERATION MANUAL — REV. #1 (12/15/22) -
Page 4: Table Of Contents
Transporting And Lifting ......... 14 Inspection ............15-16 Operation ............17-18 Maintenance ............19 Troubleshooting ............. 20 NOTICE Specifications and part numbers are subject to change without notice. PAGE 4 — MTe55 RAMMER • OPERATION MANUAL — REV. #1 (12/15/22) -
Page 5: Safety Information
COULD result in DEATH or SERIOUS INJURY. CAUTION Indicates a hazardous situation which, if not avoided, COULD result in MINOR or MODERATE INJURY. NOTICE Addresses practices not related to personal injury. MTe55 RAMMER • OPERATION MANUAL — REV. #1 (12/15/22) — PAGE 5... - Page 6 „ ALWAYS store equipment properly when it is not being used. Equipment should be stored in a clean, dry location out of the reach of children and unauthorized personnel. PAGE 6 — MTe55 RAMMER • OPERATION MANUAL — REV. #1 (12/15/22)
- Page 7 „ DO NOT lift machine to unnecessary heights. „ ALWAYS tie down equipment during transport by securing the equipment with rope. „ Never allow any person or animal to stand underneath the equipment while lifting. MTe55 RAMMER • OPERATION MANUAL — REV. #1 (12/15/22) — PAGE 7...
-
Page 8: Specifications
41 - 86 °F (5 - 30 °C) Operating Temperature Range 41 - 104 °F (5 - 40 °C) Storage Temperature Range 23 - 86 °F (-5 - 30 °C) PAGE 8 — MTe55 RAMMER • OPERATION MANUAL — REV. #1 (12/15/22) -
Page 9: Noise And Vibration Emissions
Environment by equipment for use outdoors. Products are tested for hand/arm vibration (HAV) level in accordance with European Directives 2002/44/EC and EN500-4 and ISO 5349-1:2001, ISO 5349-2:2001. MTe55 RAMMER • OPERATION MANUAL — REV. #1 (12/15/22) — PAGE 9... -
Page 10: Dimensions
DIMENSIONS Table 6. Dimensions Reference Measurement 13.78 in (350 mm) 28.15 in (715 mm) 40.94 in (1040 mm) 13.39 in. (340 mm) 10.43 in. (265 mm) PAGE 10 — MTe55 RAMMER • OPERATION MANUAL — REV. #1 (12/15/22) -
Page 11: General Information
The rammer creates strong impact force to the ground by its own weight and the jumping motion of foot. Before starting the MTe55 Tamping Rammer, identify and understand the function of the controls. MTe55 RAMMER • OPERATION MANUAL — REV. #1 (12/15/22) — PAGE 11... -
Page 12: Components

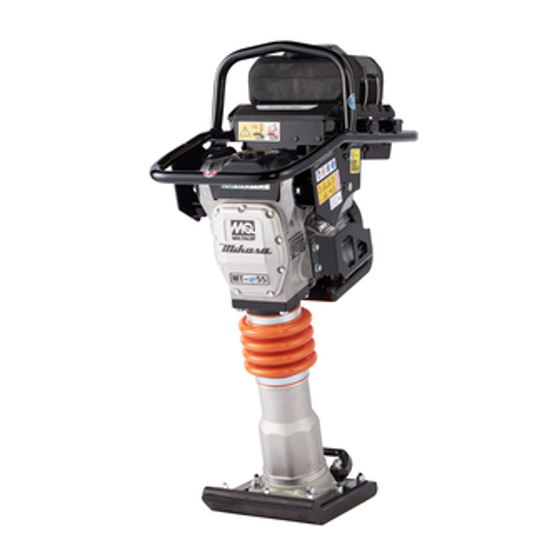

COMPONENTS Control Panel Figure 1. MTe55 Rammer PAGE 12 — MTe55 RAMMER • OPERATION MANUAL — REV. #1 (12/15/22) - Page 13 13. Oil Inlet Plug — Used to fill rammer with oil. 14. Motor Guard — Protects motor. 15. Motor —Three-phase brushless DC Power Unit. 16. Handle — To operate rammer, GRIP handle assembly firmly on both sides. MTe55 RAMMER • OPERATION MANUAL — REV. #1 (12/15/22) — PAGE 13...
-
Page 14: Transporting And Lifting
3. Using straps, secure rammer to truck bed. Figure 4. Rammer Lifting (Forklift/Crane) LIFTING HANDLE LIFTING HANDLE Figure 3. Loading Rammer Onto Truck Bed PAGE 14 — MTe55 RAMMER • OPERATION MANUAL — REV. #1 (12/15/22) -
Page 15: Inspection
Winter +40° F to +15° F SAE 30 3. Push down the battery pack and hook the battery Below +15° F SAE 10W-30 fastener to it (Figure 7). MTe55 RAMMER • OPERATION MANUAL — REV. #1 (12/15/22) — PAGE 15... - Page 16 6. Connect the power cable to the battery connector of the battery pack (Figure 8). 7. After attaching the battery pack, make sure the battery hook and fastener are securely attached. PAGE 16 — MTe55 RAMMER • OPERATION MANUAL — REV. #1 (12/15/22)
-
Page 17: Operation
4. The rammer is designed to advance while tamping. Figure 9. Rammer Operating Position Table 8. Speed Stages Number of Pushes Speed (Speed Change Button) None (Start) Rated Once Twice Medium Thrice Rated MTe55 RAMMER • OPERATION MANUAL — REV. #1 (12/15/22) — PAGE 17... - Page 18 2. The DC Power Unit stops and the POWER indicator turns off. CAUTION You can also stop the DC Power unit by pressing the POWER button, but it may take some time to stop. PAGE 18 — MTe55 RAMMER • OPERATION MANUAL — REV. #1 (12/15/22)
-
Page 19: Maintenance
5. Keep away from direct sunlight and rain. 6. Put a cover on the machine to avoid exposure to dirt. Figure 11. Oil Drain Plug MTe55 RAMMER • OPERATION MANUAL — REV. #1 (12/15/22) — PAGE 19... -
Page 20: Troubleshooting
Correct quantity of oil. Clutch slips? Correct or replace. DC Power Unit starts normally, but tamping stroke is not stable or it does not tamp. Spring failure? Replace. Bearing failure? Replace. PAGE 20 — MTe55 RAMMER • OPERATION MANUAL — REV. #1 (12/15/22) - Page 21 @ www.discount-equipment.com Select an option below to find your Equipment We sell worldwide for the brands: Genie, Terex, JLG, MultiQuip, Mikasa, Essick, Whiteman, Mayco, Toro Stone, Diamond Products, Generac Magnum, Airman, Haulotte, Barreto, Power Blanket, Nifty Lift, Atlas Copco, Chicago Pneumatic, Allmand, Miller Curber, Skyjack, Lull,...
