DigitaLinx DL-HD70LS-TX Installation Manual

Slim 70m hdmi with ir extender set transmitter/receiver

Download this manual

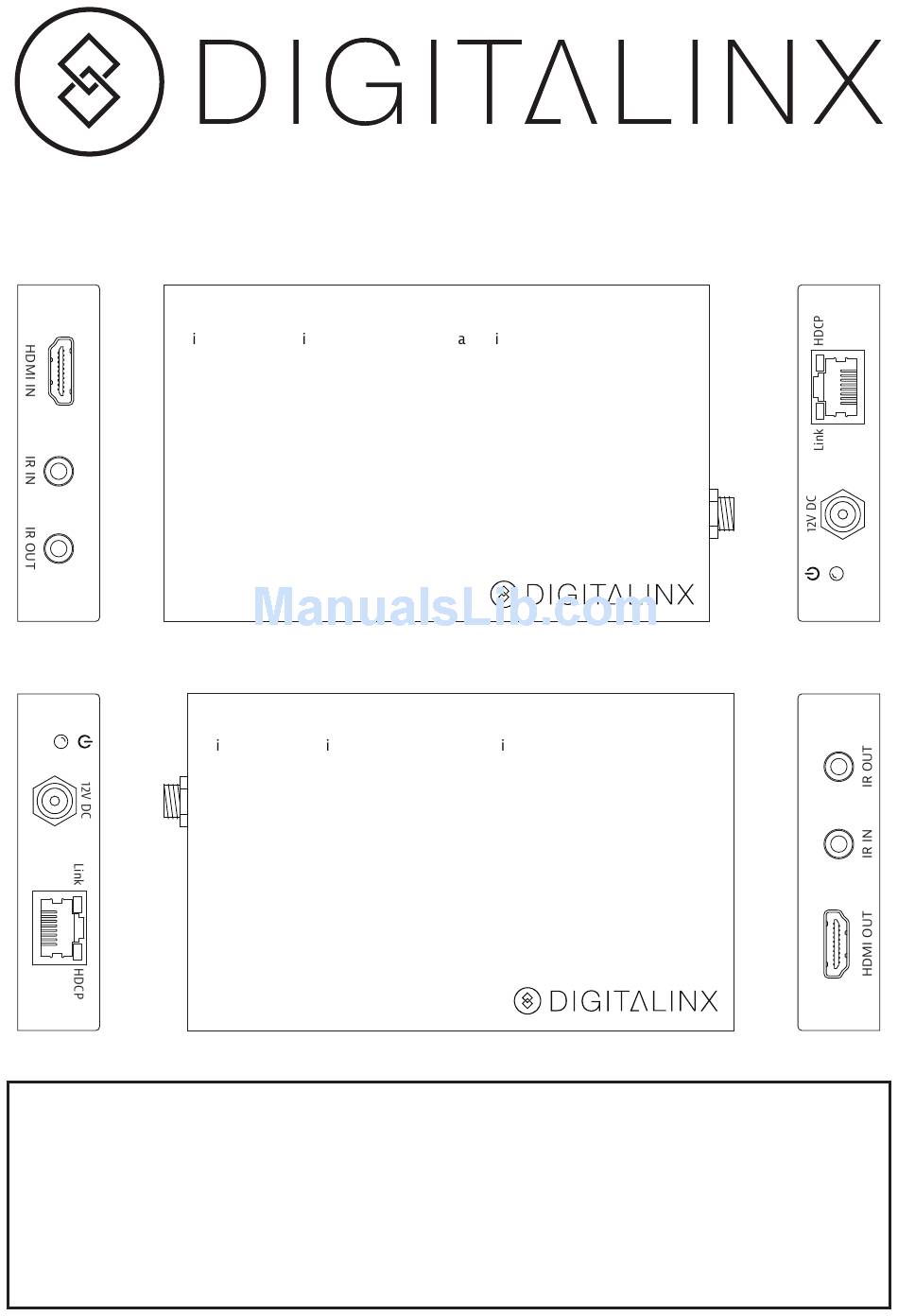

DL-HD70LS Installation Guide

DL-HD70LS-TX

Sl m 70m HDMI w th IR Extender Set - Tr nsm tter

Important notice:

•

Do not attempt to disassemble or alter the housing. There are no user-serviceable parts

inside the unit. Doing so will void your warranty.

•

To minimize the possibility of equipment damage from electrostatic discharge (ESD), all

source and destination equipment must be powered off during installation.

•

Do not connect the device to a telecommunication outlet wired to unrelated equipment.

Doing so may damage the unit or any connected equipment. Ensure all connected twisted pair

cabling is straight-through (point-to-point).

•

Allow proper ventilation to reduce the risk of thermal failure.

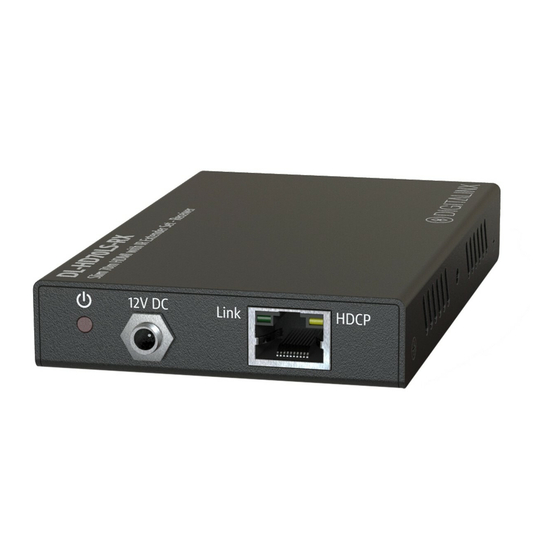

DL-HD70LS-RX

Sl m 70m HDMI w th IR Extender Set - Rece ver

Need help?

Do you have a question about the DL-HD70LS-TX and is the answer not in the manual?

Page 1 DL-HD70LS Installation Guide DL-HD70LS-TX Sl m 70m HDMI w th IR Extender Set - Tr nsm tter DL-HD70LS-RX Sl m 70m HDMI w th IR Extender Set - Rece ver Important notice: • Do not attempt to disassemble or alter the housing. There are no user-serviceable parts inside the unit.
Page 2: Transmitter Connections
Transmitter Connections HDMI Input S de Tw sted P r Output S de 12V DC HDCP HDMI IN IR IN IR OUT HDMI Input IR Input IR Output Power Indicator 12V DC Input Twisted Pair Output with Link and HDCP Status Indicators Receiver Connections Tw sted P r Input S de HDMI Output S de...
Page 3 The DigitaLinx DL-HD70LS extender set transmits HDMI (1080p, 4Kx2K (UHD) & 3D), including HDCP 2.2, and bidirectional IR up to 70 meters away using a single solid core, shielded Category 5e twisted pair cable. Built-in surge protection helps ensure hassle-free and robust installations. The 12 volt power supply is secured with a screw-on connector to prevent the power from being accidentally disconnected.
Page 4: Technical Specifications
Technical Specifications Supported Audio and Video Maximum Video Compatibility 70 m: Deep Color 36/30/24 Bit at 1080p 40 m: Deep Color 48 Bit at 1080p, 3D, and 4k x 2k (UHD) Video Compliance HDMI, HDCP, and CEC (Consumer Electronics Control) Embedded Audio Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio...
