DL-HD70 Quick Install Guide
For complete owners manual go to www.libav.com or use a QR reader to access the
Important noti ce:
• Do not att empt to disassemble or alter the housing. There are no user-serviceable parts
inside the unit. Doing so will void your warranty.
• To minimize the possibility of equipment damage from electrostati c discharge (ESD), all source and desti nati on
equipment must be powered off during installati on.
• Do not connect the device to a telecommunicati on outlet wired to unrelated equipment. Doing so may
damage the unit or any connected equipment. Ensure all connected twisted pair cabling is straight-through (point-
to-point).
• Allow proper venti lati on to reduce the risk of thermal failure.
This guide is for quick installati on only.
manual via QR code below.
Scan QR Code with your Smart-phone or Tablet

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL-HD70 and is the answer not in the manual?

Questions and answers

Related Manuals for DigitaLinx DL-HD70

Summary of Contents for DigitaLinx DL-HD70

  • Page 1 DL-HD70 Quick Install Guide This guide is for quick installati on only. For complete owners manual go to www.libav.com or use a QR reader to access the manual via QR code below. Scan QR Code with your Smart-phone or Tablet Important noti ce: •...

  • Page 2: Product Overview

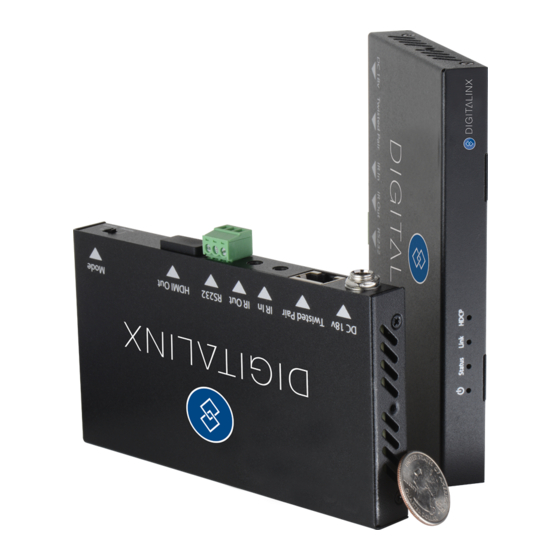

    The DL-HD70 is sold only as a set. The individual transmitter and receiver are not compatible with other HDBaseT devices due to proprietary PoE circuitry. Package Contents •...

  • Page 3: Transmitt Er View

    Front Panel Diagnosti c LEDs: The DL-HD70 provides four blue LEDs to indicate the current operati ng status and to assist troubleshooti ng an installati on. Power: Solid, the DL-HD70 extender is receiving power from the power supply or from the remote extender via Category 6 cabling.

  • Page 4: Receiver View

    Front Panel Diagnosti c LEDs: The DL-HD70 provides four blue LEDs to indicate the current operati ng status and to assist troubleshooti ng an installati on. Power: Solid, the DL-HD70 extender is receiving power from the power supply or from the remote extender via Category 6 cabling.
  • Page 5 8. Power on attached audio/video devices. Passing IR Signals: The DL-HD70 is capable of passing IR signals between 33 and 55 KHz. To prevent damage to any of the electronics, the extenders should be powered off while inserting or removing any IR components. Inserting an IR transmitter into the IR IN port may damage the IR circuit for that extender.

  • Page 6: Cabling Requirements

    Cabling Requirements HDBaseT Cabling To ensure proper performance of the DL-HD70, it is recommended that you use solid core, shielded Category 6 F/UTP cabling at a minimum. Category 5e F/UTP may perform well but may not support power over HDBaseT reliably.

  • Page 7: Technical Specifications

    Technical Specifications Supported Audio and Video Maximum Video Compatibility 70 m: Deep Color 36/30/24 Bit at 1080p 40 m: Deep Color 48 Bit at 1080p, 3D, and 4k x 2k (UHD) Video Compliance HDMI 2.0, HDCP 2.2, and CEC (Consumer Electronics Control) Embedded Audio Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio IR Carrier Frequency Range...
  • Page 8 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8898 or email us at supportlibav@libav.com www.libav.com is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
