DL-UHDRC70 Quick Install Guide
For complete owners manual go to www.libav.com or use a QR code reader to ac-
Important noti ce:
•
Do not att empt to disassemble or alter the housing. There are no user-serviceable parts
inside the unit. Doing so will void your warranty.
•
To minimize the possibility of equipment damage from electrostati c discharge (ESD), all source and desti nati on
equipment must be powered off during installati on.
•
Do not connect the device to a telecommunicati on outlet wired to unrelated equipment. Doing so may
damage the unit or any connected equipment. Ensure all connected twisted pair cabling is straight-through (point-
to-point).
•
Allow proper venti lati on to reduce the risk of thermal failure.
This guide is for quick installati on only.
cess the manual via QR code below.
Scan QR Code with your Smart-phone or Tablet

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL-UHDRC70 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DigitaLinx DL-UHDRC70

Summary of Contents for DigitaLinx DL-UHDRC70

  • Page 1 DL-UHDRC70 Quick Install Guide This guide is for quick installati on only. For complete owners manual go to www.libav.com or use a QR code reader to ac- cess the manual via QR code below. Scan QR Code with your Smart-phone or Tablet Important noti ce: •...

  • Page 3: Product Overview

    HDMI chipsets. The DL-UHDRC70 is sold only as a set. The individual transmitt er and receiver are not compati ble with other HDBaseT devices due to proprietary PoE circuitry.

  • Page 4: Front/Rear Panel

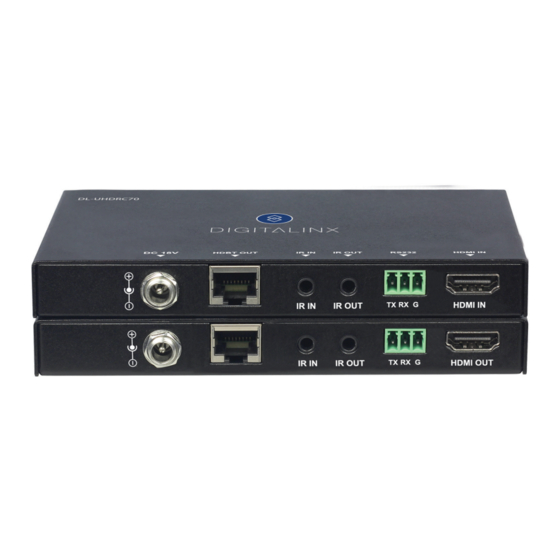

    DL-UHDRC70 Quick Guide Front / Rear Panel DC18V - Locking DC 18V power connector HDBaseT In/Out - Connects transmitt er and receiver together; supports PoC / bi-directi onal power IR IN/OUT (TRANSMITTER) - Connects IR receiver / emitt er to control devices via IR IR IN/OUT (RECEIVER) - Connects IR receiver / emitt er to control devices via IR RS232 - Serial control pass through port;...
