- Page 1 DL-HD50C Quick Start Guide Included Accessories • Installation Guide • Wideband IR Tx/Rx cable • (2) 5V1A DC Power Supply Adaptors...

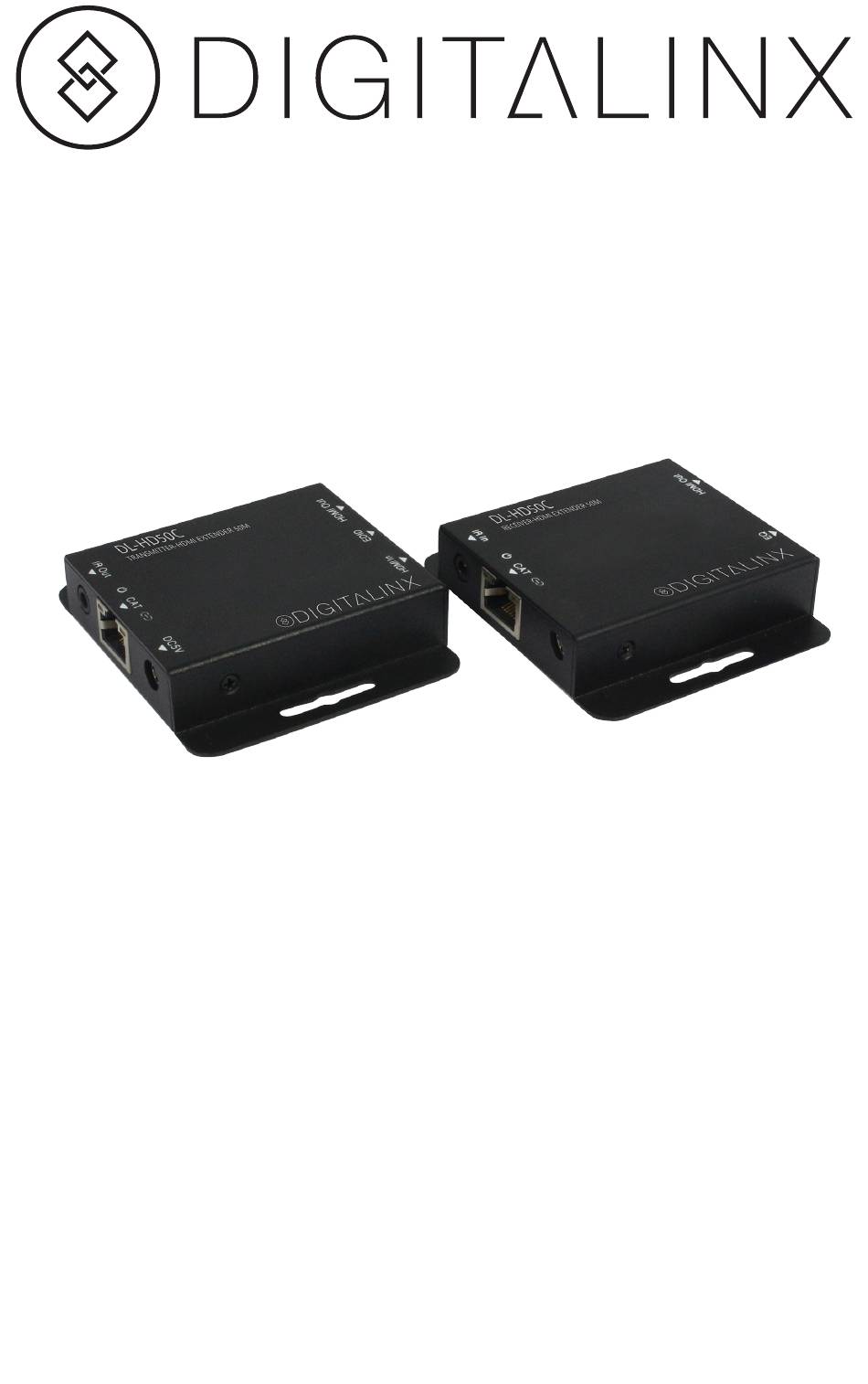

- Page 2 The DigitaLinx DL-HD50C is an HDMI Extender over Single Cat6 with IR up to a distance of 164ft/50m. The DL-HD50C features EDID management, which allows and encourages source and display “handshake” for seamless integration. Deep color video, 1080p High Definition resolution, DTS-HD or Dolby TrueHD audio are supported with this extender.
- Page 3 Receiver. For power, plug both the Transmitter and Receiver unit with the included power supplies to power the entire DL-HD50C circuit IR in: Connect to the IR Receiver for IR signal reception. Ensure that remote being used is within the direct line-of-sight of the IR receiver.
-
Page 4: Technical Specifications
Technical Specifications Supported Audio and Video Video Bandwidth Single-link 165Mhz [ 4.95Gbps] Video Support 480i/480p/720p/1080i/1080p@60 Embedded Audio Support Surround Sound (up to 7.1 ch) or stereo digital audio Transmission Range HD [1080p 24-bit color] – up to 50m [164ft] Input TMDS Signal 3.3 volts Input DDC Signal 5.0 volts/P-P...
