Fig. 17
Outlet box
Hanger
bracket
Fig. 18
Outlet box
Hanger
bracket
Fig. 19
POWER LINES 120V
GREEN
GROUND
WIRING
BOX
GROUND TO
MOUNTING
BRACKET
OR DOWNROD
FAN
WH
WH
LIGHT
Screws
Ceiling canopy
Canopy ring
Screws
Canopy
Canopy ring

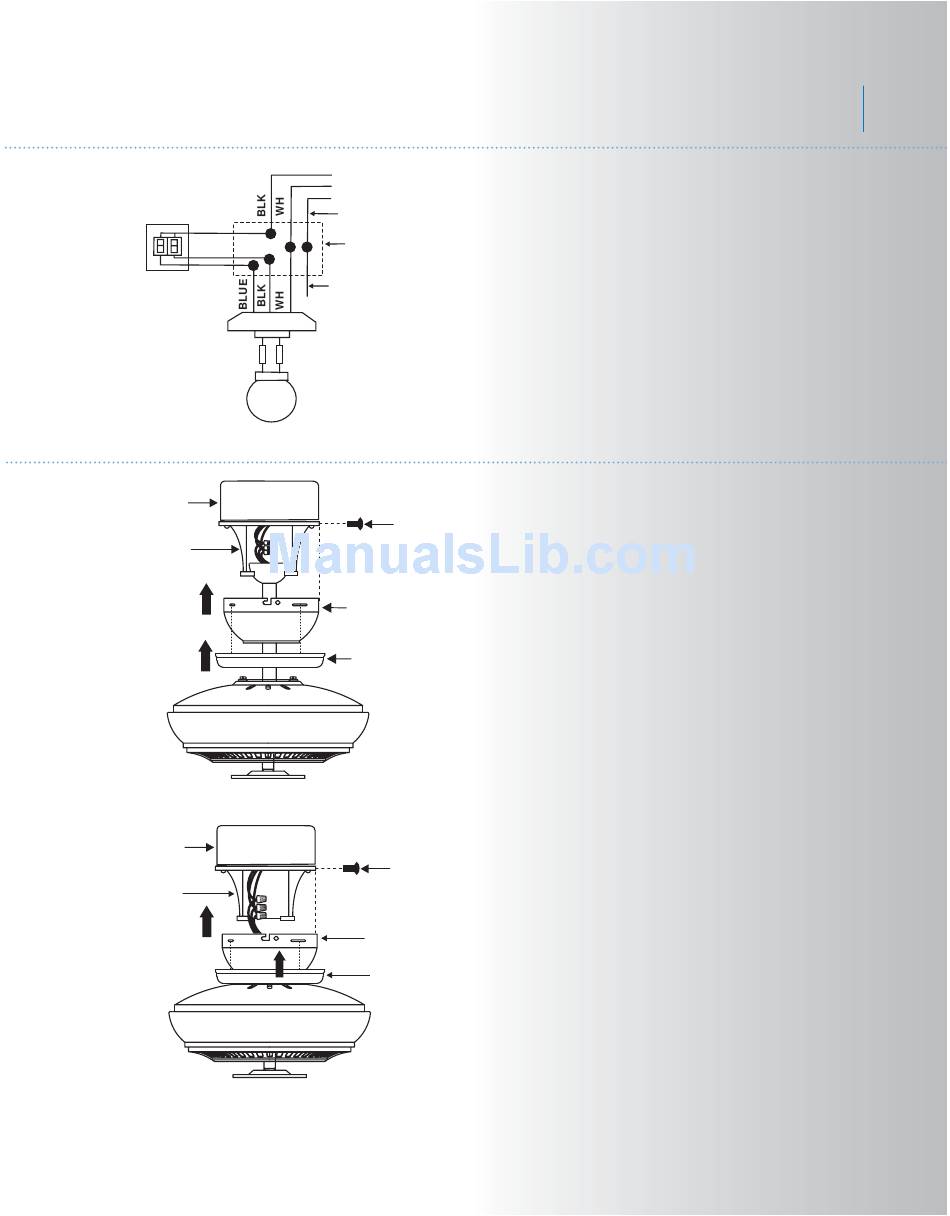

Figures 16 and 17 illustrate the wiring
connections for optional wall control (The wire
color out of wall control may vary, see wall
control's installation manual for correct wire
connections.)
WARNING: TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, OR OTHER PERSONAL
INJURY. MOUNT FAN ONLY ON AN
OUTLET BOX OR SUPPORTING SYSTEM
MARKED ACCEPTABLE FOR FAN
SUPPORT.
8. FINISHING THE INSTALLATION
STANDARD CEILING INSTALLATION
Slide canopy up to the ceiling as shown in Fig.
18. Make sure you place the wires safely into
the outlet box. Secure the canopy to the
hanger bracket with the four screws with your
fan. Raise canopy ring up against canopy and
secure it to canopy until snug.
CLOSE-TO-CEILING INSTALLATION
Remove the fan from the hook on the hanger
bracket. Secure the canopy to the hanger
bracket as shown in Fig. 19 with four screws
included with your fan. Secure the canopy to
the hanger bracket with the four screws with
your fan. Raise canopy ring up against canopy
and secure it to canopy until snug.
