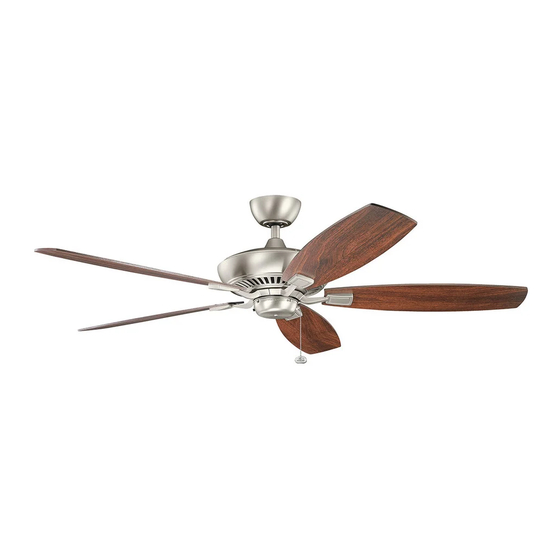

- Page 1 Canfield A Kichler ® Select ™ ceiling fan Kichler ® Lighting 7711 East Pleasant Valley Road P.O. Box 318010 Cleveland, Ohio 44131-8010 Instruction Manual Customer Service 866.558.5706 8:30 AM to 5:00 PM EST, Monday - Friday...
-
Page 2: Safety Rules
1. SAFETY RULES 1. To reduce the risk of electric shock, insure 8. Avoid placing objects in the path of the electricity has been turned off at the circuit blades. breaker or fuse box before beginning. 9. To avoid personal injury or damage to the 2. -
Page 3: Tools And Materials Required
Canfield 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (5) Canopy & Ceiling mounting bracket Ball/downrod assembly Coupling cover Fan motor assembly... -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing UL (cUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building structure. -
Page 5: Hanging The Fan
Canfield 5. HANGING THE FAN Ceiling REMEMBER to turn off the power before you mounting begin. bracket To properly install your ceiling fan, follow the Canopy steps below. Step 1. Remove the decorative canopy Canopy cover bottom cover from the canopy by turning the Fig. - Page 6 Step 7. Slip the coupling cover, canopy cover and canopy onto the downrod. Downrod Thread the hanger ball onto the downrod, insert the cross pin through the downrod and Canopy tighten. Now tighten the set screw. (Fig. 9) Canopy cover Step 8.
-
Page 7: Installation Of Safety Support
Canfield 6. INSTALLATION OF SAFETY SUPPORT (required for Canadian installation ONLY) A safety support cable is provided to help prevent the ceiling fan from falling. Step 1. Attach the provided wood screw and Hanger bracket Attach safety cable washers to the ceiling joist next to the to ceiling joist with screw and washer mounting bracket but do not tighten. -
Page 8: Finishing The Installation
WARNING: TO REDUCE THE RISK OF FIRE, POWER LINES 120V ELECTRIC SHOCK, OR OTHER PERSONAL GREEN INJURY. MOUNT FAN ONLY ON AN OUTLET GROUND BOX OR SUPPORTING SYSTEM MARKED WIRING LIGHT ACCEPTABLE FOR FAN SUPPORT. GROUND TO MOUNTING BRACKET OR DOWNROD BLUE LIGHT Fig. -
Page 9: Attaching The Fan Blades
Canfield 9. ATTACHING THE FAN BLADES CAUTION: Remove the five rubber shipping blocks attached to the face of the motor. These blocks keep the motor from shifting during shipping and MUST be removed during installation. Step 1. Attach a blade to a blade bracket using the screws and fiber washers provided. -
Page 10: Installing The Switch Housing
11. INSTALLING THE SWITCH HOUSING NOTE: Before continuing installation, confirm that the power is still turned off at the main circuit breaker or by removing the correct fuse. Turning the power off using a wall switch is not sufficient to prevent electrical shock. Step 1. - Page 11 Canfield 12. OPERATING INSTRUCTIONS Turn on the power and check the operation of your fan. The pull chain controls the fan speed as follows: 1. 3-speed pull chain- it controls the fan speed as follows: 1 pull- High, 2 pulls- Medium, 3 pulls- Low, and 4 pulls- Off.
-
Page 12: Troubleshooting
13. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. Fan sounds noisy. 1. Make sure all motor housing screws are snug. 2.
