Designed to coordinate with a popular Kichler Lighting collection.
Includes our Hand Held
Remote Control System
Instruction Manual

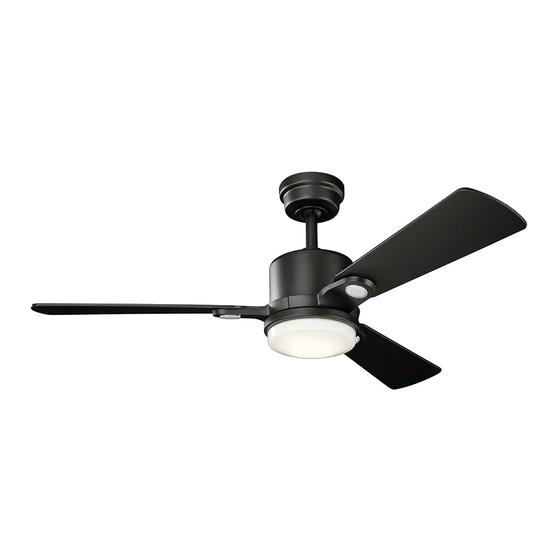

Celino
TM
A Kichler
®
Décor
™
ceiling fan
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kichler Lighting Celino
Summary of Contents for Kichler Lighting Celino
- Page 1 Celino A Kichler ® Décor ™ ceiling fan Designed to coordinate with a popular Kichler Lighting collection. Includes our Hand Held Remote Control System Kichler ® Lighting 7711 East Pleasant Valley Road P.O. Box 318010 Cleveland, Ohio 44131-8010 Instruction Manual Customer Service 866.558.5706...
-
Page 2: Safety Rules
1. SAFETY RULES 1. To reduce the risk of electric shock, insure 10. Do not use water or detergents when electricity has been turned off at the circuit cleaning the fan or fan blades. A dry dust breaker or fuse box before beginning. cloth or lightly dampened cloth will be suitable for most cleaning. -
Page 3: Tools And Materials Required
Celino 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (3) Canopy & Ceiling mounting bracket... -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing UL (cUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building structure. -
Page 5: Hanging The Fan
Celino 5. HANGING THE FAN Ceiling mounting REMEMBER to turn off the power before you bracket begin. To properly install your ceiling fan, follow the Canopy steps below. Canopy cover Step 1. Remove the decorative canopy bottom Fig. 5 cover from the canopy by turning the cover counter clockwise. - Page 6 Step 8. Slip the coupling cover, canopy cover and canopy onto the downrod. Hanger ball Downrod Thread the hanger ball onto the downrod, insert the cross pin through the downrod and Canopy tighten. Now tighten the set screw. (Fig. 9) Canopy cover Step 9.
-
Page 7: Installation Of Safety Support
Celino 6. INSTALLATION OF SAFETY SUPPORT (for Canadian Installation ONLY) A safety support cable is provided to help prevent the ceiling fan from falling, please Ceiling mounting install it as follows. Attach safety cable bracket to ceiling joist with screw and washer Step 1. -
Page 8: Finishing The Installation
Connect the black wire from the fan to the black wire marked "TO MOTOR L" on the receiver. Connect the white wire from the fan to the white wire marked "TO MOTOR N" on Outlet box the receiver. Connect the blue wire from the fan to the blue wire marked "FOR LIGHT"... -
Page 9: Attaching The Fan Blades
Celino 9. ATTACHING THE FAN BLADES CAUTION: Remove the five rubber shipping blocks attached to the face of the motor. These blocks keep the motor from shifting during shipping and MUST be removed during installation. Step 1. Attach the blade to a blade bracket... -
Page 10: Installing The Light Bulbs And Glass Shade
11. INSTALLING THE LIGHT FIXTURE NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box. Step 1. Loosen the three mounting screws on the inside of the light fixture. Hold the light plate close to the light fixture and connect the white wires from the light plate and the fan. -
Page 11: Installing The Battery
Celino 13. INSTALLING THE BATTERY Install a 9 volt battery included with the Hand Held Transmitter. (Fig. 20) Note: To prevent damage to the transmitter, remove these batteries if not used for long periods of time (months). Battery Battery cover Fig. - Page 12 Reverse switch NOTE: Turn fan off by Hand Held Remote Control System and let blades come to a complete stop before manually activating the reverse switch. Speed settings for warm or cool weather depend on factors such as the room size. Ceiling height, number of fans and so on.
- Page 13 Celino 15. INSTALLING THE TRANSMITTER WALL BRACKET Screws 1. Choose a location for the Transmitter Wall Pocket. Any location within 30 feet from the ceiling fan remote control receiver is required. Choose a flat location, using the wall pocket as a guide, mark the wall anchor locations.
-
Page 14: Troubleshooting
16. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. 3. Make sure the batteries are installed properly. Positive (+) side facing out. 4.
