6. INSTALLATION OF SAFETY SUPPORT

(for Canadian Installation ONLY)
An additional safety support is provided to
prevent the fan from falling fan). Place the end
of cable through the loop of ceiling support
cable. Pull as much cable through loop as
possible. Feed end of cable into clamp hole
and fi rmly tighten screw (Fig. 14). Cut off
excess safety cable. Secure the safety cable
to the ceiling joist with screw and washer.

7. MAKE THE ELECTRIC CONNECTIONS

Remember to disconnect the power.
Follow the steps below to connect the fan to
your household wiring. Use the wire
connecting nuts supplied with your fan.
Secure the connectors with electrical tape.
Make sure there are no loose strands or
connections.
Step 1 Connect the fan supply (black) wire and
light supply (blue) wire to the black household
supply wire as shown in Figure 15.
Step 2. Connect the neutral fan (white) wire to
the white neutral household wire.
Step 3 Connect the fan ground wire (green) to
the household ground wire.
Step 4 After connecting the wires, spread
them apart so that the green and white wires
are on one side of the outlet box and the black
and the blue wires are on the other side.
Step 5 Turn the connecting nuts upward and
push the wiring into the outlet box.

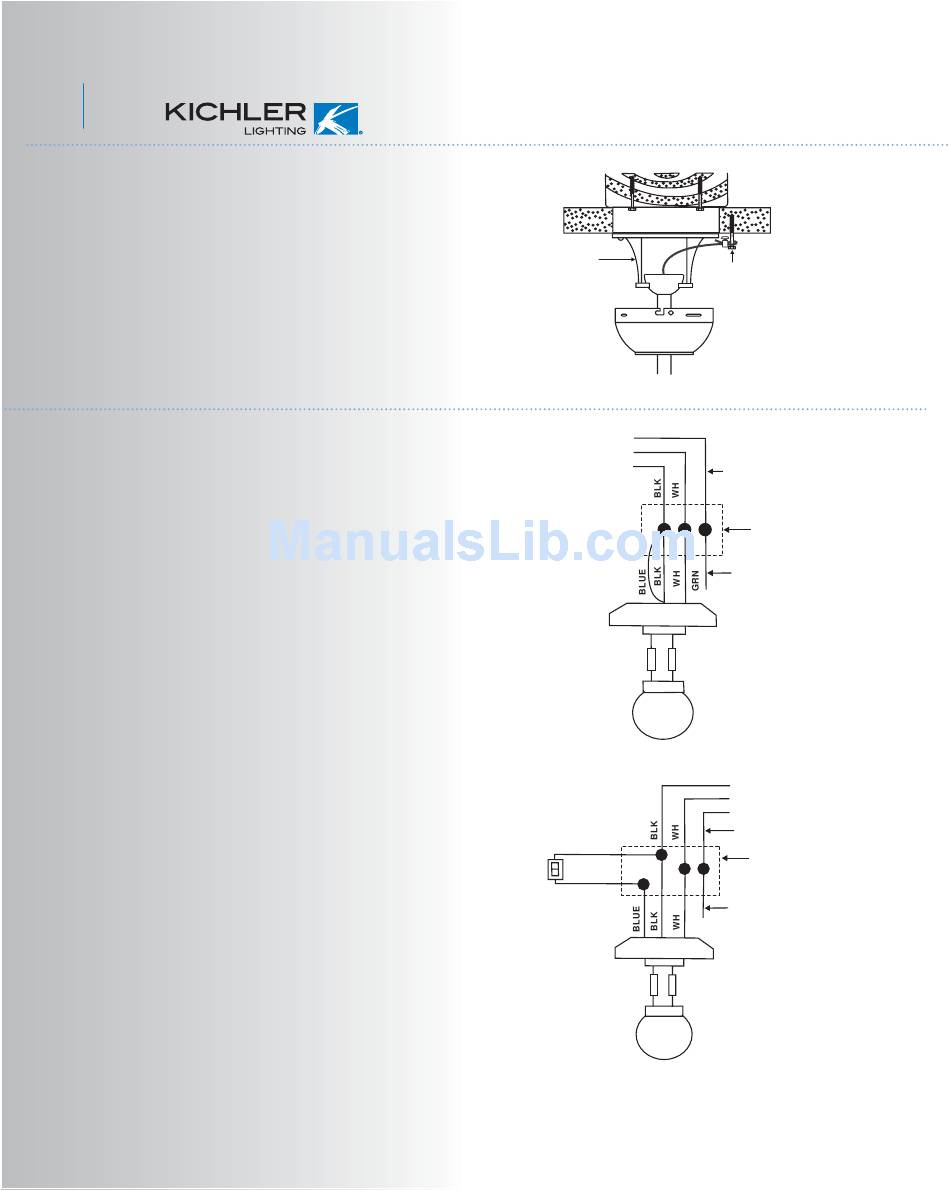

Hanger bracket
Fig. 14
Power lines 120v
BLUE WH
BLK
WH
Fig. 15
Light
switch
BLUE WH
BLK
WH
Fig. 16
Attach safety cable
to ceiling joist with
screw and washer
Green ground
Wiring
box
Ground to
mounting
bracket
or downrod
FAN
LIGHT
Power lines 120v
Green ground
Wiring
box
Ground to
mounting
bracket
or downrod
FAN
LIGHT
