5. HANGING THE FAN

REMEMBER to turn off the power. Follow the
steps below to hang your fan properly. NOTE:
This ceiling fan is supplied with two types of
hanging assemblies; the standard ceiling
installation using the downrod with ball and
socket mounting and the "close-to-ceiling"
installation. The "close-to-ceiling" installation is
recommended in rooms with less than 8-foot
ceilings or in areas where additional space is
desired from the floor to the fan blades. When
using the standard 6" downrod, the distance
from the ceiling to the bottom of the fan blades
will be approximately 10 inches. The "close-to-
ceiling" installation reduce this distance to 8-
inches. Once you have selected which
mounting system you will use, proceed with
the following instructions. Where necessary,
each section of the instructions will note the
different procedures to follow for the two types
of mounting.

STANDARD CEILING INSTALLATION

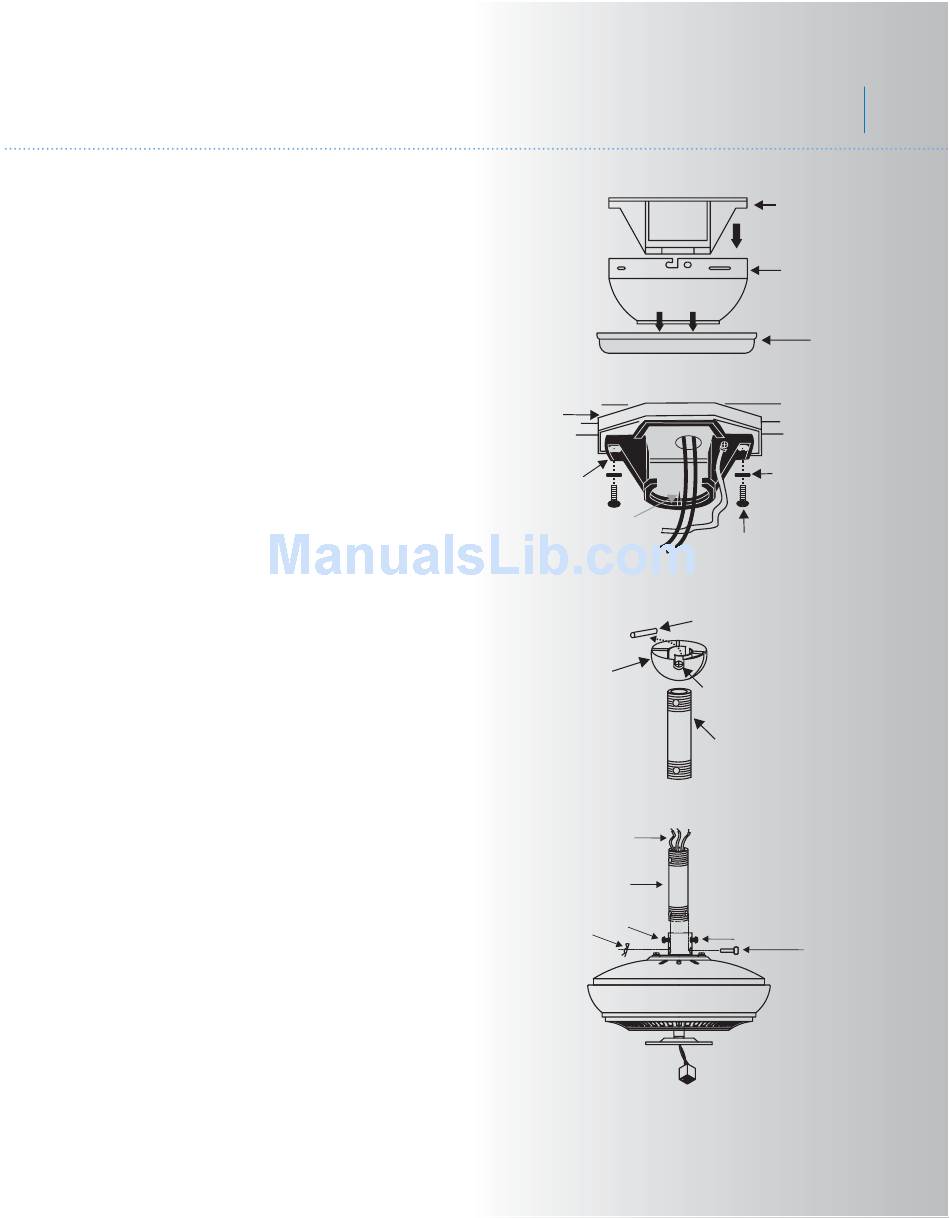

1. Remove the canopy ring from the canopy.
(Fig. 5)
2. Remove the hanger bracket from the canopy
by loosening the four screws on the top of the
canopy. Remove the two non-slotted screws
and loosen the slotted screws. This will enable
you to remove the hanger bracket. (Fig. 5)
Step 3. Secure the hanger bracket to the
ceiling outlet box using screws and washers
included with your outlet box. (Fig. 6)
Step 4. Remove hanger ball from downrod
assembly by loosening set screws, removing
the cross pin, and sliding ball off rod. (Fig. 7)
Step 5. Loosen the two set screws and
remove the hitch pin and lock pin from the top
coupling of the motor assembly. (Fig. 8)
Step 6. Carefully feed the fan wires up through
the downrod. Thread the downrod into the
coupling until the Hitch pin holes are aligned.
Next, replace the lock clip and hitch pin then
tighten the set screws. (Fig. 8)
