Kichler
®
Lighting
7711 East Pleasant Valley Road
P.O. Box 318010
Cleveland, Ohio 44131-8010
Customer Service
866.558.5706
8:30 AM to 5:00 PM EST,
Monday - Friday
Includes our Basic Function
CoolTouch
Control System
TM
Looks permanent, but goes wherever you go!
U.S. Patent Pending
Instruction Manual

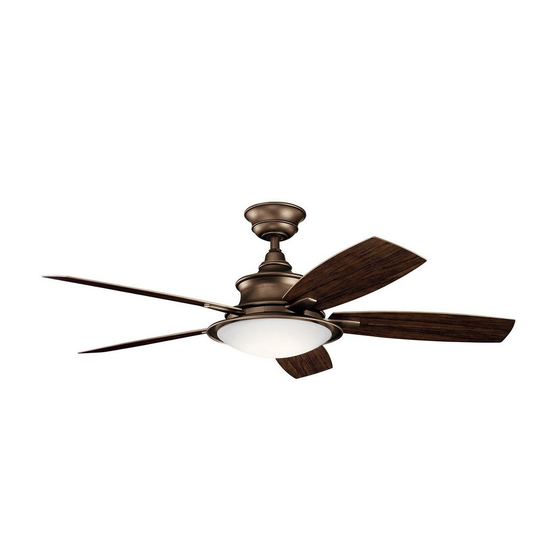

Cameron
TM
A Kichler
®
Outdoor
™
ceiling fan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cameron and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kichler Lighting Cameron

Summary of Contents for Kichler Lighting Cameron

  • Page 1 Cameron A Kichler ® Outdoor ™ ceiling fan Includes our Basic Function CoolTouch Control System Looks permanent, but goes wherever you go! U.S. Patent Pending Kichler ® Lighting 7711 East Pleasant Valley Road P.O. Box 318010 Cleveland, Ohio 44131-8010 Instruction Manual Customer Service 866.558.5706...

  • Page 2: Safety Rules

    1. SAFETY RULES 1. To reduce the risk of electric shock, insure 10. To avoid personal injury or damage to the fan and other items, be cautious when electricity has been turned off at the circuit breaker or fuse box before beginning. working around or cleaning the fan.

  • Page 3: Tools And Materials Required

    Cameron 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (5) Canopy & Ceiling mounting bracket...

  • Page 4: Mounting Options

    4. MOUNTING OPTIONS If there isn't an existing UL (cUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building structure.

  • Page 5: Hanging The Fan

    Cameron 5. HANGING THE FAN REMEMBER to turn off the power before you Ceiling mounting bracket begin. To properly install your ceiling fan, follow the Canopy steps below. Step 1. Remove the decorative canopy bottom Canopy cover cover from the canopy by turning the cover Fig.
  • Page 6 Step 8. Slip the coupling cover, canopy cover and canopy onto the downrod. Cross pin Hanger ball Hanger ball Thread the hanger ball onto the downrod, insert the cross pin through the downrod and Downrod tighten. Now tighten the set screw. (Fig. 9) Canopy Step 9.

  • Page 7: Installation Of Safety Support

    Cameron 6. INSTALLATION OF SAFETY SUPPORT (required for Canadian installation ONLY) A safety support cable is provided to help prevent the ceiling fan from falling, please install it as follows. Ceiling mounting Attach bracket safety cable Step 1. Attach the provided wood screw and...

  • Page 8: Finishing The Installation

    Connect the white wire from the fan to the white wire marked "TO MOTOR N" from the Outlet box receiver. Connect the blue wire from the fan to White (neutral) the blue wire marked "FOR LIGHT" from the Black (hot) receiver.

  • Page 9: Attaching The Fan Blades

    Cameron 9. ATTACHING THE FAN BLADES Step 1. Attach a blade to a blade bracket using the screws and rubber washers provided. (Fig.16) Make sure the blade is straight when set on the blade bracket. Tighten each mounting screw and then repeat this procedure for each blade.
  • Page 10 11. INSTALLING THE SOCKET PLATE NOTE: Before continuing installation, confirm that the power is still turned off at the main circuit breaker or by removing the correct fuse. Turning the power off using a wall switch is not sufficient to prevent electrical shock. Step 1.

  • Page 11: Installing The Batteries

    Cameron 13. INSTALLING THE BATTERIES Remove the battery compartment cover on the back of the CoolTouch™ Transmitter and insert both batteries provided. Make sure the + sign is facing up. Take care during this procedure NOT TO move the frequency dip switches inside this compartment.
  • Page 12 Speed settings for warm or cool weather depend on factors such as the room size. Ceiling height, number of fans and so on. Warm Weather Operation: Forward (counter clockwise) A downward airflow creates a cooling effect as shown in Fig. 23. This allows you to set your air conditioner on a warmer setting without affecting your general comfort.

  • Page 13: Installing The Cooltouch Control System Wall Plate

    Cameron ™ 15. INSTALLING THE COOLTOUCH CONTROL SYSTEM WALL PLATE Outlet box Switch Select a location to install your CoolTouch™ Wall plate Control System Transmitter. You can replace an existing wall switch or, install the transmitter on ANY flat surface.

  • Page 14: Troubleshooting

    17. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. 3. Make sure the transmitter batteries are installed properly. Positive (+) side facing out.
