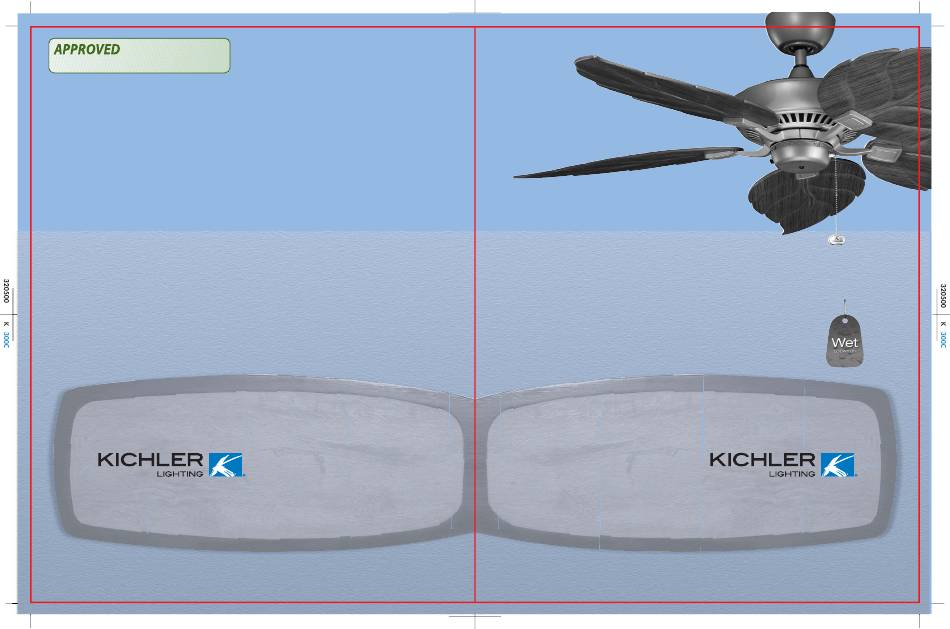

By Ted Collmar at 10:02 am, Jun 26, 2012
Kichler
®
Lighting
7711 East Pleasant Valley Road
P.O. Box 318010
Cleveland, Ohio 44131-8010
Customer Service
866.558.5706
8:30 AM to 5:00 PM EST,
Monday - Friday
TM
Canfield
Instruction Manual
TM
Climates
A Kichler
®
Select
™
ceiling fan
cUL Certified
for Wet Location
Advertisement
Table of Contents
Related Manuals for Kichler Lighting Select Canfield Climates
Summary of Contents for Kichler Lighting Select Canfield Climates
- Page 1 By Ted Collmar at 10:02 am, Jun 26, 2012 Canfield Climates A Kichler ® Select ™ ceiling fan cUL Certified for Wet Location Kichler ® Lighting 7711 East Pleasant Valley Road P.O. Box 318010 Cleveland, Ohio 44131-8010 Instruction Manual Customer Service 866.558.5706 8:30 AM to 5:00 PM EST, Monday - Friday...
-
Page 2: Safety Rules
1. SAFETY RULES 1. To reduce the risk of electric shock, insure 8. WARNING: Use only with light kit marked electricity has been turned off at the circuit "Suitable for Use in Wet Locations". breaker or fuse box before beginning. 8. -
Page 3: Tools And Materials Required
Canfield Climates 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Canopy & Ceiling mounting bracket Ball/downrod assembly Coupling cover Fan motor assembly... -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing UL (cUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building Outlet box structure. -
Page 5: Hanging The Fan
Canfield Climates 5. HANGING THE FAN REMEMBER to turn off the power before you Ceiling mounting bracket begin. To properly install your ceiling fan, follow the Canopy steps below. Step 1. Remove the decorative canopy Canopy cover bottom cover from the canopy by turning the Fig. - Page 6 Step 8. Slip the coupling cover, canopy cover and canopy onto the downrod. Cross pin Hanger ball Hanger ball Thread the hanger ball onto the downrod, insert the cross pin through the downrod and Downrod tighten. Now tighten the set screw. (Fig. 9) Canopy Step 9.
-
Page 7: Installation Of Safety Support
Canfield Climates 6. INSTALLATION OF SAFETY SUPPORT (required for Canadian installation ONLY) A safety support cable is provided to help prevent the ceiling fan from falling, please Ceiling mounting install it as follows. Attach bracket safety cable to ceiling joist Step 1. -
Page 8: Finishing The Installation
8. FINISHING THE INSTALLATION Step 1. Tuck all the connections neatly into the ceiling outlet box. Step 2. Slide the canopy up to the mounting Outlet box bracket and place one of the key hole slots over the mounting screw on the mounting Ceiling bracket. -
Page 9: Installing The Mounting Plate
Canfield Climates 10. INSTALLING THE MOUNTING PLATE Step 1. Loosen the two screws on the mounting ring attached to the motor shaft and "remove" and save the third screw. (Fig. 15) Step 2. Place the key hole slots on the mounting plate over the two screws previously loosened on the mounting ring. - Page 10 12. OPERATING INSTRUCTIONS Turn the power on and check the operation of your ceiling fan. The pull chain controls the 3 speeds of your ceiling fan as follows: 1 pull = High, 2 pulls = Medium, 3 pulls = Low and the 4th pull turns the motor off.
-
Page 11: Troubleshooting
Canfield Climates 13. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check that all fuses or circuit breakers are installed or in the ON position. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. Fan sounds noisy.
