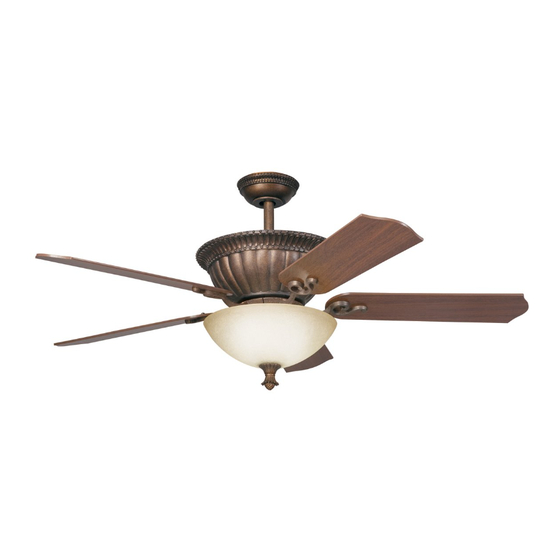

Kichler Lighting Larissa Instruction Manual

Decor ceiling fan
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Kichler
Lighting
®
7711 East Pleasant Valley Road
P.O. Box 318010
Cleveland, Ohio 44131-8010
Customer Service
866.558.5706
8:30 AM to 5:00 PM EST,
Monday - Friday
Designed to coordinate with a popular Kichler Lighting collection.
Includes our new
CoolTouch
Control System
TM
Looks permanent, but goes wherever you go!
U.S. Patent Pending
Instruction Manual
Larissa
TM
A Kichler
®
Décor
™
ceiling fan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Larissa and is the answer not in the manual?

Questions and answers

Related Manuals for Kichler Lighting Larissa

Summary of Contents for Kichler Lighting Larissa

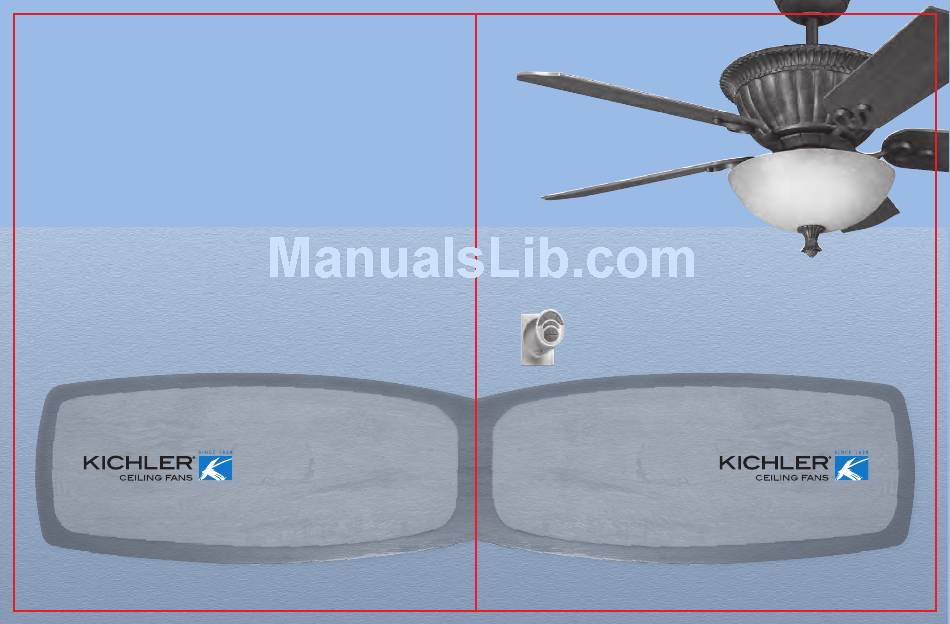

  • Page 1 Larissa A Kichler ® Décor ™ ceiling fan Designed to coordinate with a popular Kichler Lighting collection. Includes our new CoolTouch Control System Looks permanent, but goes wherever you go! U.S. Patent Pending Kichler Lighting ® 7711 East Pleasant Valley Road P.O.

  • Page 2: Safety Rules

    1. SAFETY RULES 1. To reduce the risk of electric shock, insure 8. Avoid placing objects in the path of the electricity has been turned off at the circuit blades. breaker or fuse box before beginning. 9. To avoid personal injury or damage to the 2.

  • Page 3: Tools And Materials Required

    Larissa 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (3) Hanger bracket and canopy Ball/downrod assembly (1) &...

  • Page 4: Mounting Options

    4. MOUNTING OPTIONS If there isn't an existing UL (CUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers Secure the outlet box directly to the building Outlet box structure.

  • Page 5: Hanging The Fan

    Larissa 5. HANGING THE FAN Hanger bracket REMEMBER to turn off the power. Follow the steps below to hang your fan properly: Step 1. Remove the decorative canopy bottom Ceiling cover from the canopy by turning the cover canopy counter clockwise. (Fig. 5)
  • Page 6 Step 7. Slip coupling cover, canopy cover and canopy onto downrod. Carefully reinstall hanger ball onto rod being sure that cross pin Downrod is in correct position, the set screw on hanger Canopy ball is tight and wires are not twisted. (Fig. 9) Step 8.

  • Page 7: Installation Of Safety Support

    Larissa 6. INSTALLATION OF SAFETY SUPPORT (for Canadian Installation ONLY) An additional safety support is provided to prevent the fan from falling. Secure the safety cable to the ceiling joist with screw and Hanger bracket Safety cable washer, as illustrated in Figure 11.

  • Page 8: Finishing The Installation

    Step 3. (Fig. 14) Receiver to House Supply Outlet box Wires Electrical Connections: Connect the black (hot) wire from the ceiling to the black White (neutral) Black (hot) wire marked "AC in L" from the receiver. Green or bare Connect the white(neutral) wire from the copper (ground) Black ("AC IN L") ceiling to the white wire marked "AC in N"...

  • Page 9: Attaching The Fan Blades

    Larissa 9. ATTACHING THE FAN BLADES Step 1 Attach the blade to the blade bracket using the screws, washers and fiber washers as shown in Figure 16. Start screw into bracket. Repeat for the two remaining screws. Step 2 Make sure the blade is straight and tighten each screw.

  • Page 10: Installing The Light Plate

    11. INSTALLING THE LIGHT PLATE NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box. Step 1. Loosen the 3 screws from the mounting plate. Step 2. Raise and hold the light kit close to the mounting plate.

  • Page 11: Installing The Battery

    Larissa 13. FAN WITHOUT LIGHT KIT (OPTIONAL) 1. Disassemble the switch housing from the light kit, you can keep the light kit for future use. 2. Attach the plastic plug to the switch housing. (Fig. 20) 3. Install the switch housing to the mounting plate with screws provided.
  • Page 12 15. OPERATING INSTRUCTIONS Restore power to ceiling fan and test for proper operation. , and buttons: These three buttons are used to set the fan speed as follows: = high speed = medium speed = low speed button: This button turns the fan off. The "...
  • Page 13 Larissa 16. INSTALLING THE COOLTOUCH CONTROL SYSTEM WALL PLATE Ou t l et b o x Sw i t c h To install the CoolTouch control system wall Wal l p l at e plate, you can select the following locations to fulfill your wall plate installation: 1.

  • Page 14: Troubleshooting

    18. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off. 3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
