Summary of Contents for Kichler Lighting Canfield Select

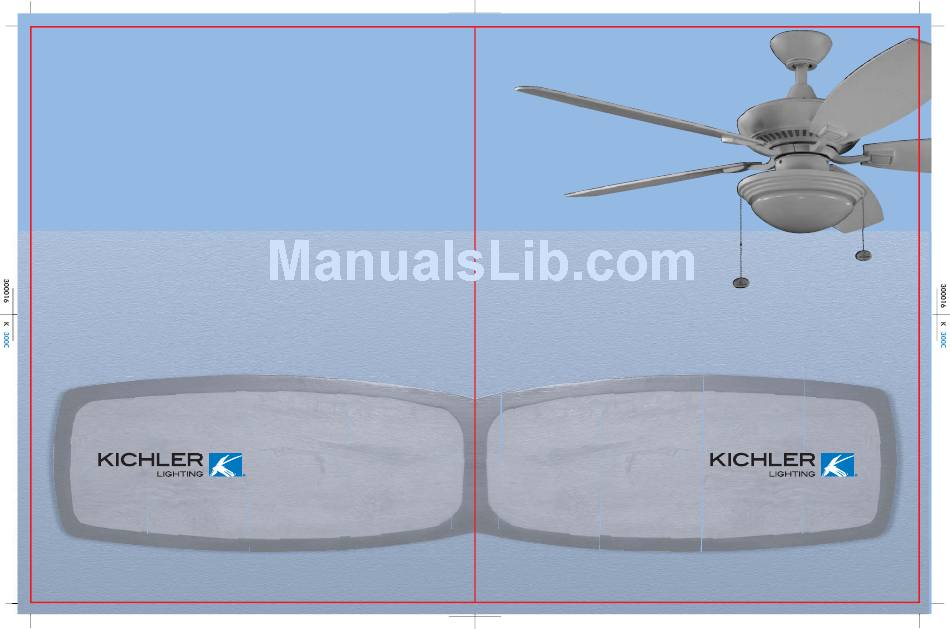

- Page 1 Canfield Select ® ™ A Kichler Select ceiling fan Kichler ® Lighting 7711 East Pleasant Valley Road P.O. Box 318010 Cleveland, Ohio 44131-8010 Instruction Manual Customer Service 866.558.5706 8:30 AM to 5:00 PM EST, Monday - Friday...
-
Page 2: Safety Rules
1. SAFETY RULES 1. To reduce the risk of electric shock, insure 10. Do not use water or detergents when electricity has been turned off at the circuit cleaning the fan or fan blades. A dry dust breaker or fuse box before beginning. cloth or lightly dampened cloth will be suitable for most cleaning. -
Page 3: Tools And Materials Required
52" Canfield Select 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (5) -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing UL (cUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building structure. -
Page 5: Hanging The Fan
52" Canfield Select 5. HANGING THE FAN Ceiling mounting REMEMBER to turn off the power before you bracket begin. Canopy To properly install your ceiling fan, follow the steps below. Canopy Step 1. Remove the decorative canopy bottom cover Fig. 5 cover from the canopy by turning the cover counter clockwise. - Page 6 Step 8. Slip the coupling cover, canopy cover and canopy onto the downrod. Hanger ball Thread the hanger ball onto the downrod, Downrod insert the cross pin through the downrod and tighten. Now tighten the set screw. (Fig. 9) Canopy Step 9.
-
Page 7: Installation Of Safety Support
52" Canfield Select 6. INSTALLATION OF SAFETY SUPPORT (for Canadian Installation ONLY) A safety support cable is provided to help prevent the ceiling fan from falling, please install it as follows. Ceiling mounting Attach bracket safety cable to ceiling joist Step 1. -
Page 8: Finishing The Installation
8. FINISHING THE INSTALLATION Step 1. Tuck all the connections neatly into the ceiling outlet box. Outlet box Ceiling Mounting Step 2. Slide the canopy up to ceiling and over Bracket the two screws on hanger bracket. Rotate Screws canopy clockwise, next, while holding the canopy with one hand, slide the canopy cover over the screws and rotate clockwise until tight. -
Page 9: Installing The Mounting Plate
52" Canfield Select 10. INSTALLING THE MOUNTING PLATE 1. Loosen the two screws on the mounting ring attached to the motor shaft and "remove" and save the third screw. (Fig. 15) 2. Place the key holes on the mounting plate... -
Page 10: Installing The Light Kit
12. INSTALLING THE LIGHT KIT 4. While holding the light kit assembly under your ceiling fan, push the square wire connectors together. One from the fan and one from the light fixture. NOTE: These connectors are color coded and will ONLY engage when the colored strips are matched (aligned). - Page 11 52" Canfield Select 14. OPERATING INSTRUCTIONS Turn the power on and check the operation of your ceiling fan. The "center" pull chain turns the light fixture On and Off. The "outside" pull chain controls the 3 speeds of your ceiling fan.
-
Page 12: Troubleshooting
15. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check that all fuses or circuit breakers are installed or in the ON position. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. Fan sounds noisy.
