6.7

MMA welding

6.7.1

PICO 162, PICO 162 MV

Item Symbol Description
1
2
6.7.1.1

Electrode holder connection

Caution: Risk of injury from crushing!
Suitable protective gloves should be worn when changing spent stick electrodes.
When pausing work, always place the electrode holder on an insulated surface.
• Insert cable plug of the electrode holder into either the "+" or "-" welding current connection socket and
lock by turning to the right.
Polarity depends on the instructions from the electrode manufacturer given on the electrode
packaging.
6.7.1.2

Connection for workpiece lead

• Insert cable plug of the workpiece lead into either the "+" or "-" welding current connection socket and
lock by turning to the right.
Polarity depends on the instructions from the electrode manufacturer given on the electrode
packaging.
Item No.: 099-002040-EWM01
1
0
Connection socket, "+" welding current
Workpiece lead or electrode holder connection
"-" Welding current connection socket
Electrode holder or workpiece lead connection

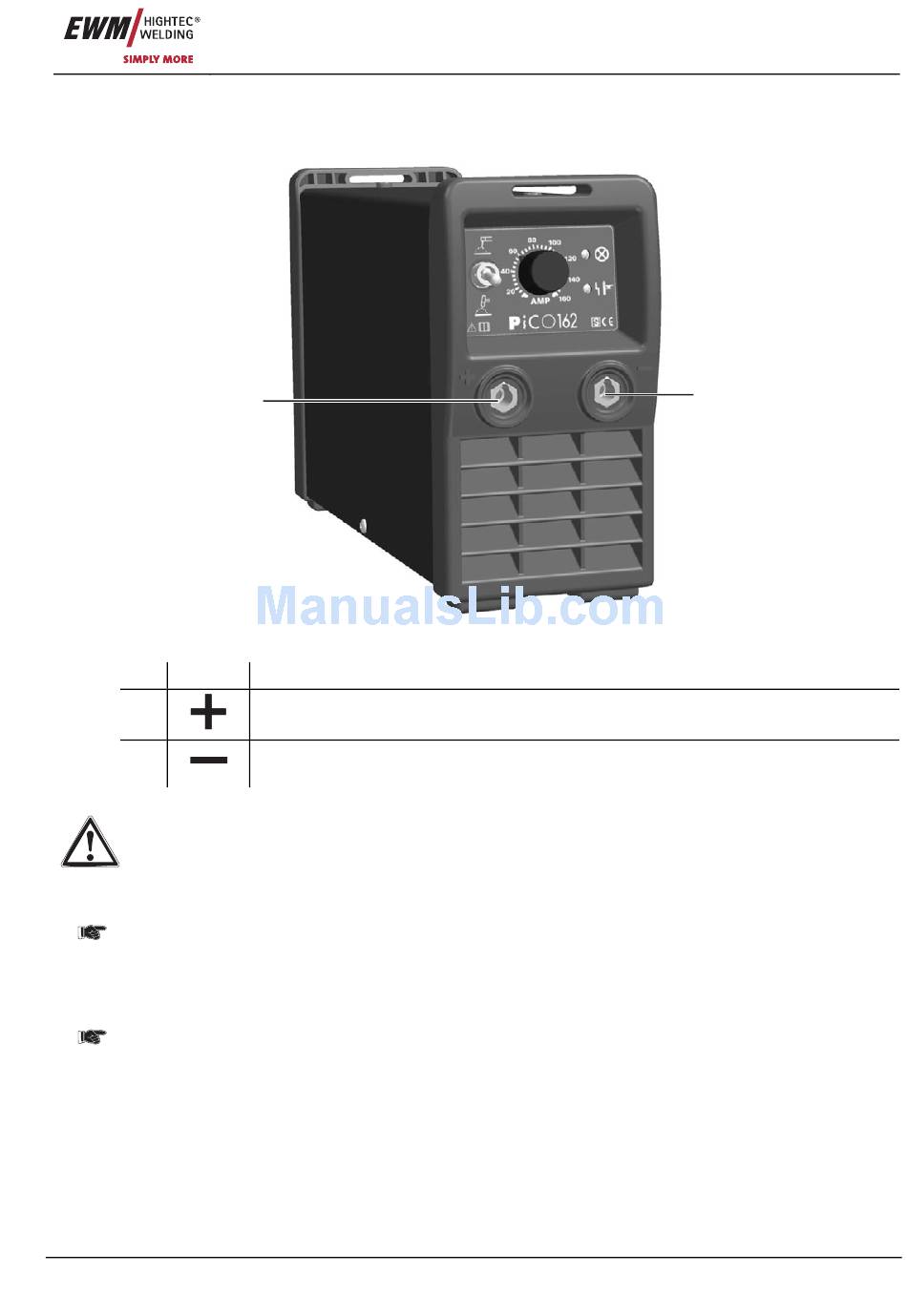

Figure 6-2
Commissioning
MMA welding
2
