Machine Description; Pico 162, Pico 162 Mv; Front View - EWM PICO 162 Operating Instructions Manual

4

Machine description

4.1

PICO 162, PICO 162 MV

4.1.1

Front view

Item Symbol Description
1
2
3
4
5
6
Item No.: 099-002040-EWM01
1
2
3
4
5
0
Carrying strap
Control / Operating elements (see chapter Function specification)
Connection socket, "+" welding current
Workpiece lead or electrode holder connection
Cooling air outlet
Machine feet
Connection socket, "-" welding current
• MMA welding: Electrode holder or workpiece lead connection
• TIG welding: Welding current lead connection for TIG welding torch

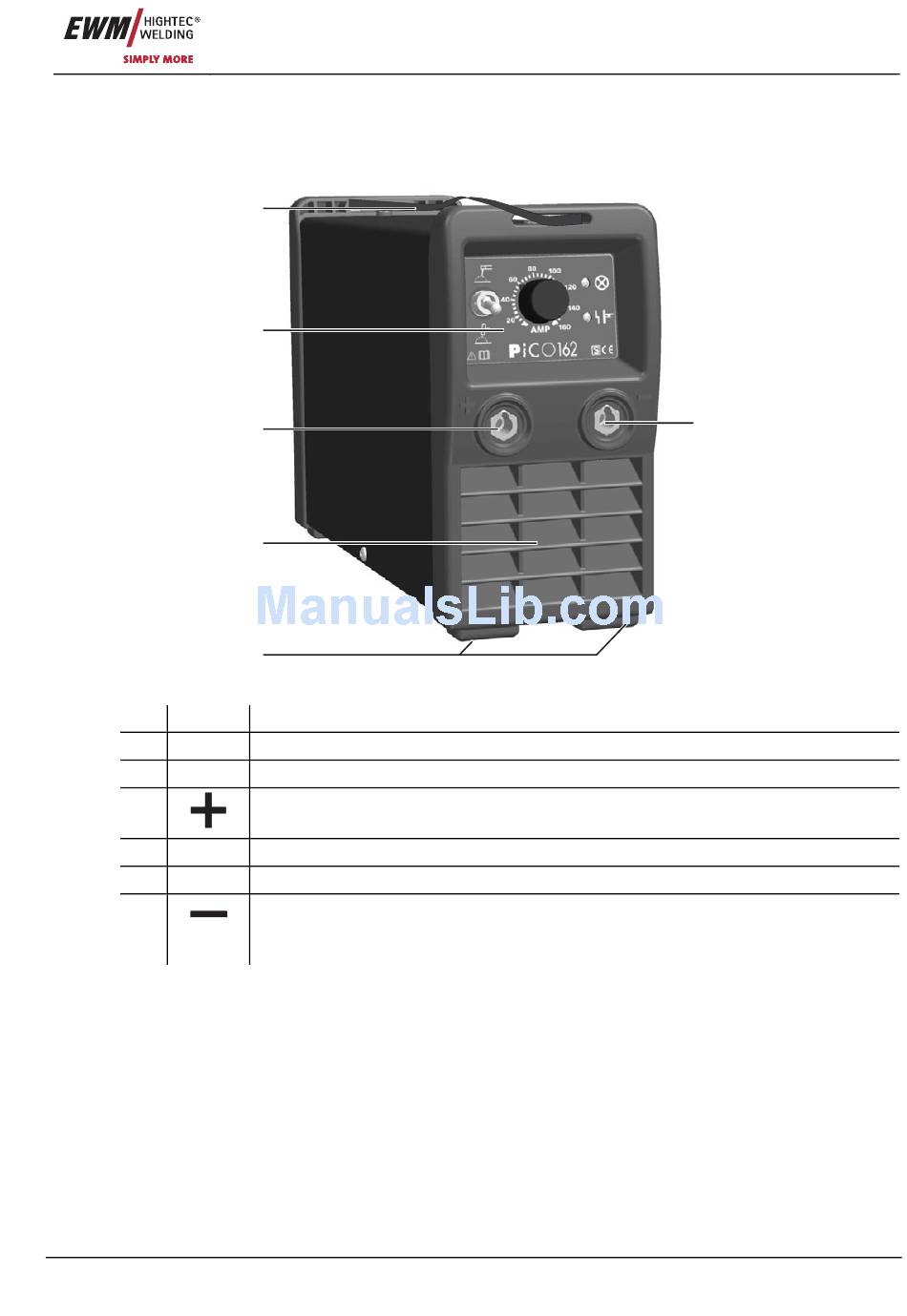

Figure 4-1
Machine description
PICO 162, PICO 162 MV
