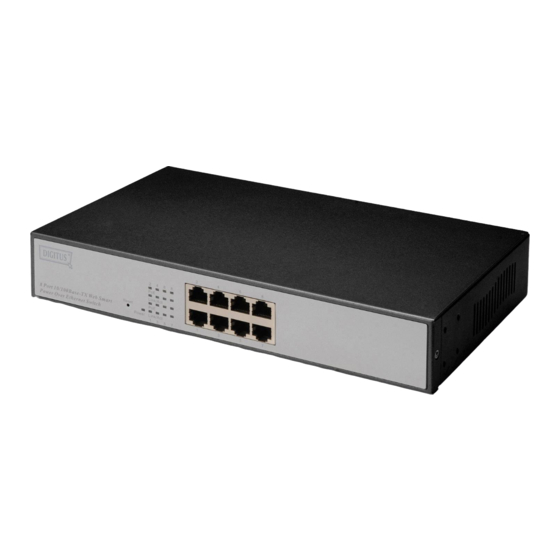

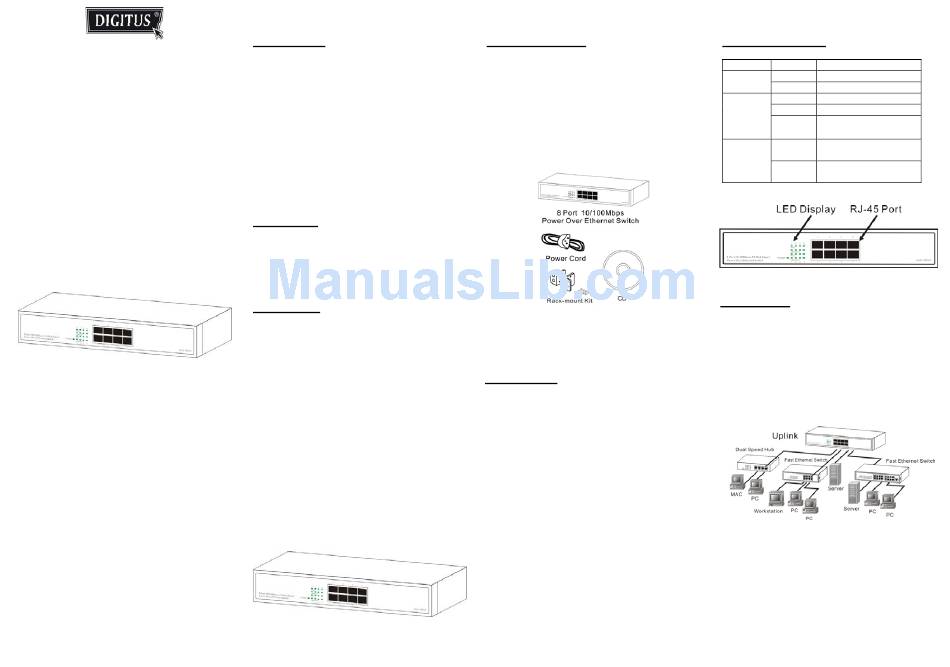

Digitus DN-95311 Quick Installation Manual

8-PORT POWER OVER ETHERNET
WEB SMART SWITCH
Quick Installation Guide
(DN-95311)

FCC Warning

This device has been tested and found to
comply with limits for a Class A digital device,
pursuant to Part 15 of FCC Rules. These
limits are designed to provide reasonable
protection against harmful interference when
the equipment is operated in a commercial
environment. This equipment generates
and radiates radio frequency energy and, if
not installed and used in accordance with the
user's manual, it may cause interference in
which case users will be required to correct
interference at their own expenses.

CE Warning

This is a Class A product. In a domestic
environment, this product may cause radio
interference in which case the user may be
required to take adequate measures.

Introduction

This switch provides 8 10/100M ports. It was
designed for easy installation and high
performance in an environment where traffic
is on the network and the number of users
increases continuously.
It consists of 8 PSE/PoE ports. That can solve
the limitation of the power outlet location and
offer the system designer a flexible solution to
locate the network device everywhere.
The compact rigid desktop size is specifically
designed for small to medium workgroups. It
can be installed where space is limited;
moreover, it provides smooth network
migration and easy upgrade the network
capacity.

Package Contents

Before you start to install this switch, please
verify your package that contains the following
items:
 One PoE Web Smart Fast Ethernet Switch
 One Power Cord
 One CD (User's Manual)
 19" Rack Mount Kit
Note: If any of these items is found missing or
damaged, please contact your local supplier
for replacement.

Key Features

 8 Port 10/100M Nway (Auto-negotiation)
Web Smart Switch
 8 PSE/PoE function ports
 Supporting the power Max. 15.4 W for each
PSE/PoE port
 Desktop size with metal case
 Can be installed in
a 483mm (19")
cabinet by rack-mount kits
 Auto-learn of networking configurations
 Auto-detect full/half-duplex modes for any port
 Dedicated full-duplex 200Mbps bandwidth
 Store-and-Forward switching methods
 IEEE 802.3x flow control for full-duplex and
back-pressure flow control for half-duplex
 Non-blocking & Non-head-of-line blocking
full wire speed forwarding
 Auto-MDI/MDI-X function for any port
 Smart plug & play

Front Panel (LEDs)

LED Status Description
Power On Power is on
Off Power is off
LINK/ACT On Connection established
Off No connection
Flashing Data is transmitting or
receiving
PoE On Port is linked to Power
Device
Off No Power Device is
connected

Connections

Switch/Hub to this 8 Port PoE Fast
Ethernet Switch
This switch provides automatic crossover
detection functionality for any port.
simple and friendly to up-link to another switch
without crossover cable.
It is
