- Page 1 8 Port Gigabit PoE Switch, 10 Inch, Unmanaged Manual DN-95317 Rev.2...
-
Page 2: Table Of Contents
Table of contents 1. Product Description ................3 2. Product Features ................3 3. Package Content ................4 4. Product Specifications................ 4 5. Hardware Description ................ 5... -
Page 3: Product Description

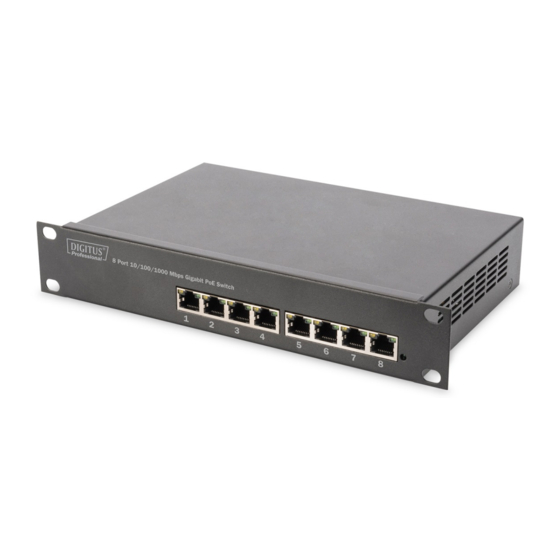

1. Product Description The DIGITUS Gigabit Ethernet PoE Switch with eight Power over Ethernet ports, offers your network significant improvement in terms of performance and efficiency. Thanks to PoE support, you only need a single (network) cable for power and data transfer. This switch makes it much easier to connect devices such as access points, network cameras, and IP telephones, and requires far less cabling than alternatives. -
Page 4: Package Content
3. Package Content 8-Port Gigabit Switch Manual AC Power cable 4. Product Specifications Item Description Summarize Fixed port 8x 10/100/1000Base-TX ports LED Indicators PWR, PoE, Link/Act LED 100V~240V AC, 50/60Hz (for power adapter) Input voltage 48VDC (for switch) 10BASE-TX: UTP category 5, 5e cable Network Media 100BASE-TX: UTP category 5, 5e cable... -
Page 5: Hardware Description
8 10/100/1000Base-TX ports PoE port All 8 PoE ports IEEE802.3af, IEEE802.3at, PoE Standard per port 15.4W, max 30W Pin assignment V - (RJ45 Pin1, 2), V+ (RJ45 Pin 3, 6) 5. Hardware Description The Front Panel The front panel consists of LED Indications. LED Indicators Figure 1. - Page 6 RJ-45 Ports (Auto MDI/MDIX) 8 auto-sensing ports of 10Base-T, 100Base-TX or 1000Base-TX connections. All ports can support Power over Ethernet to power devices. Remark: MDI means connecting to another Hub or Switch while MDIX means connecting to a workstation or PC. Therefore, Auto MDI/MDIX means that you can connect to another Switch or workstation without changing pin-to-pin or crossover cabling.
- Page 7 This is a Class A product. In home environment, this product may cause radio interference. In this case, the user may be required to take appropriate measures. Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
