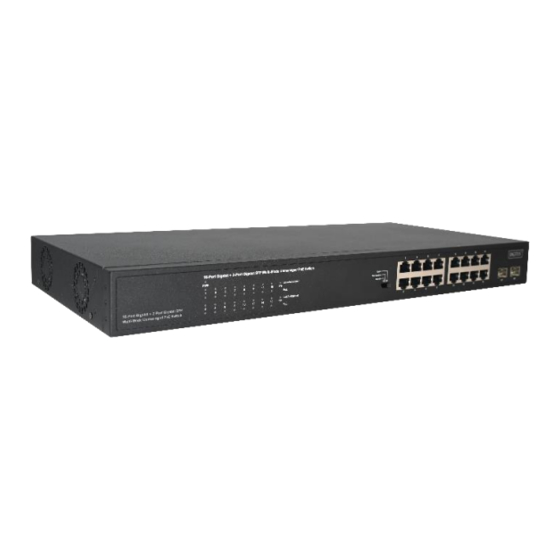

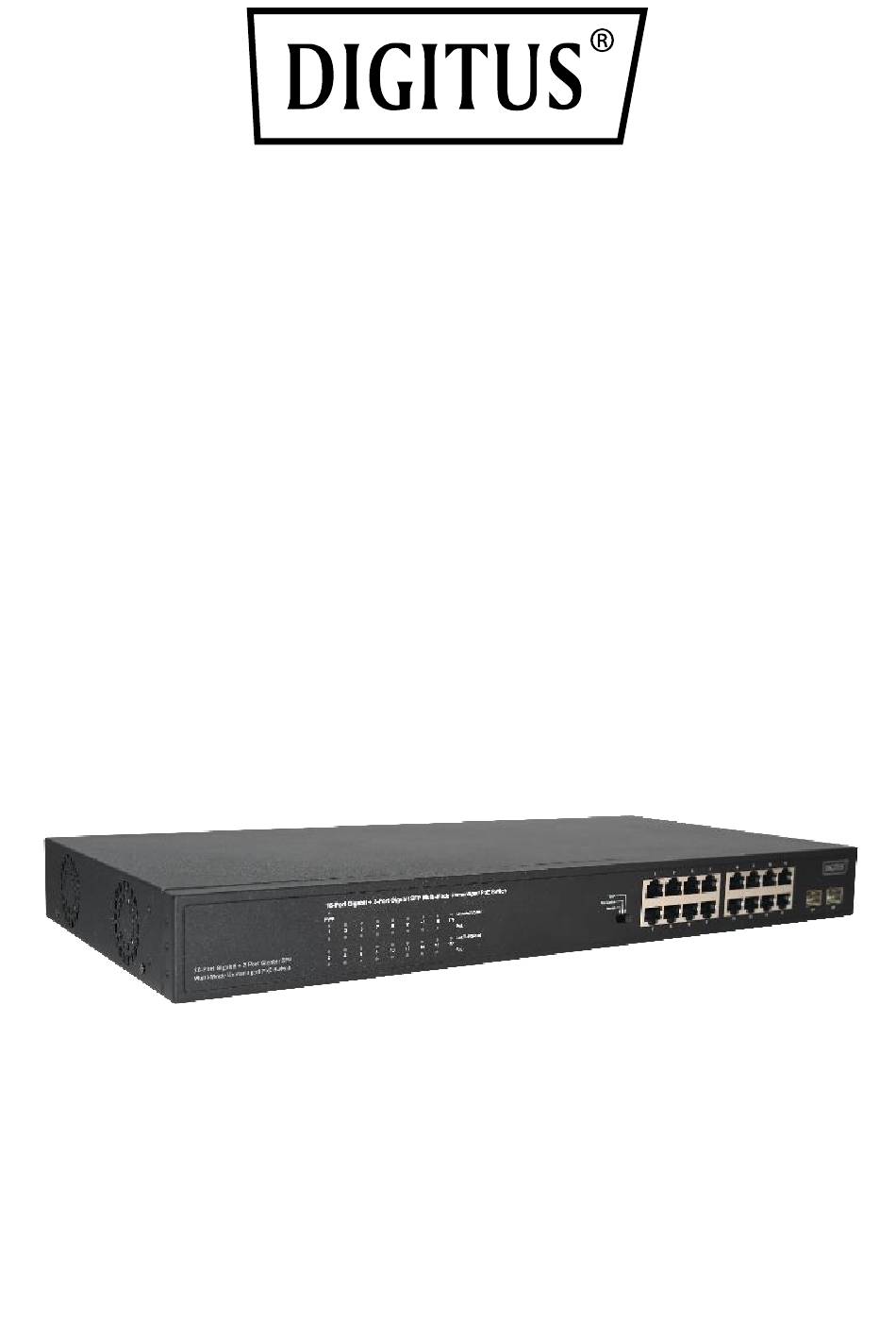

- Page 1 16 Port Gigabit PoE Switch, 19 Inch, Unmanaged, 2 SFP Uplink Quick Installation Guide DN-95347-1...
-
Page 2: Package Contents
1. Introduction The DIGITUS 16-Port Gigabit Rack mount Switch with sixteen Power over Ethernet ports and two additional SFP Fiber Port, offers your network significant improvement in terms of performance and efficiency. Thanks to PoE support, you only need a single (network) cable for power and data transfer. -
Page 3: Specifications
4. Specifications 16*10/100/1000Mbps Adaptive Ethernet port Interfaces 2*100/1000Mbps SFP port SFP port Support 1000Base-X Normal mode （Switch all ports can communicate with each other） Flow Control mode Working Mode (All ports' flow control functions are disable) VLAN mode (1 to 16 cannot communicate with each other, but can communicate with 17F-18F) AC (AC) Input: Rated voltage range: 100-240V~... -
Page 4: External Component Description
5. External Component Description The front panel consists of 16*10/100/1000Mbps Adaptive Ethernet port, 2*1000Mbps SFP port, 1*Mode switch, a series of LED indicators. The rear panel provides an AC power connector, a Ground Terminal. Its appearance is shown below: Front Panel The front panel consists of LED indications and network ports. - Page 5 Cooling Solution The switch adopts turbo fan for ventilation to ensure that the equipment can work normally under the specified environment. When placing the case, leave enough space of 10cm on both sides of the case and the rear panel to facilitate air circulation. PD power supply wiring The PoE power supply design supports the iEEE802.3af and 802.3at power supply standards, and uses Alternative a mode power supply, that is, 12+, 36- power supply in...
-
Page 6: Installing And Connecting The Switch
6. Installing and Connecting the Switch This part describes how to install your Ethernet Switch and make connections to it. Please read the following topics and perform the procedures in the order being presented. 6.1 Installation Please follow the following instructions in avoid of incorrect installation causing device damage and security threat. -
Page 7: Power On The Switch
2) Use the screws provided with the equipment rack to mount the Switch on the rack and tighten it. 6.1.3 Power on the Switch The Switch is powered on by the AC 100-240V 50/60Hz internal high-performance power supply. Please follow the next tips to connect: AC Electrical Outlet: It is recommended to use single-phase three-wire receptacle with neutral outlet or multifunctional computer professional receptacle. - Page 8 CE Mark Warning: This is a Class A product. In home environment, this product may cause radio interference. In this case, the user may be required to take appropriate measures. Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content.
