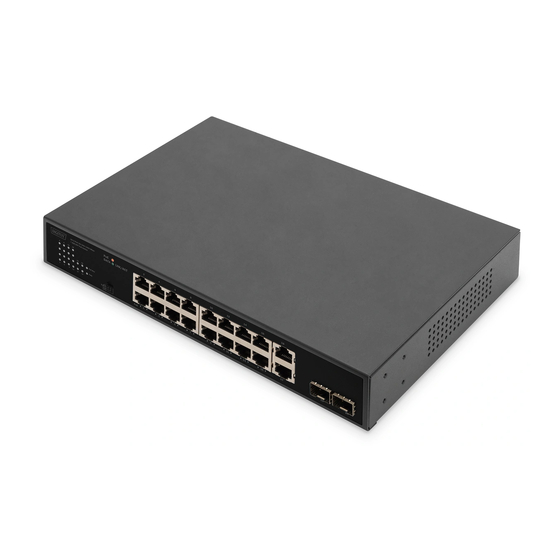

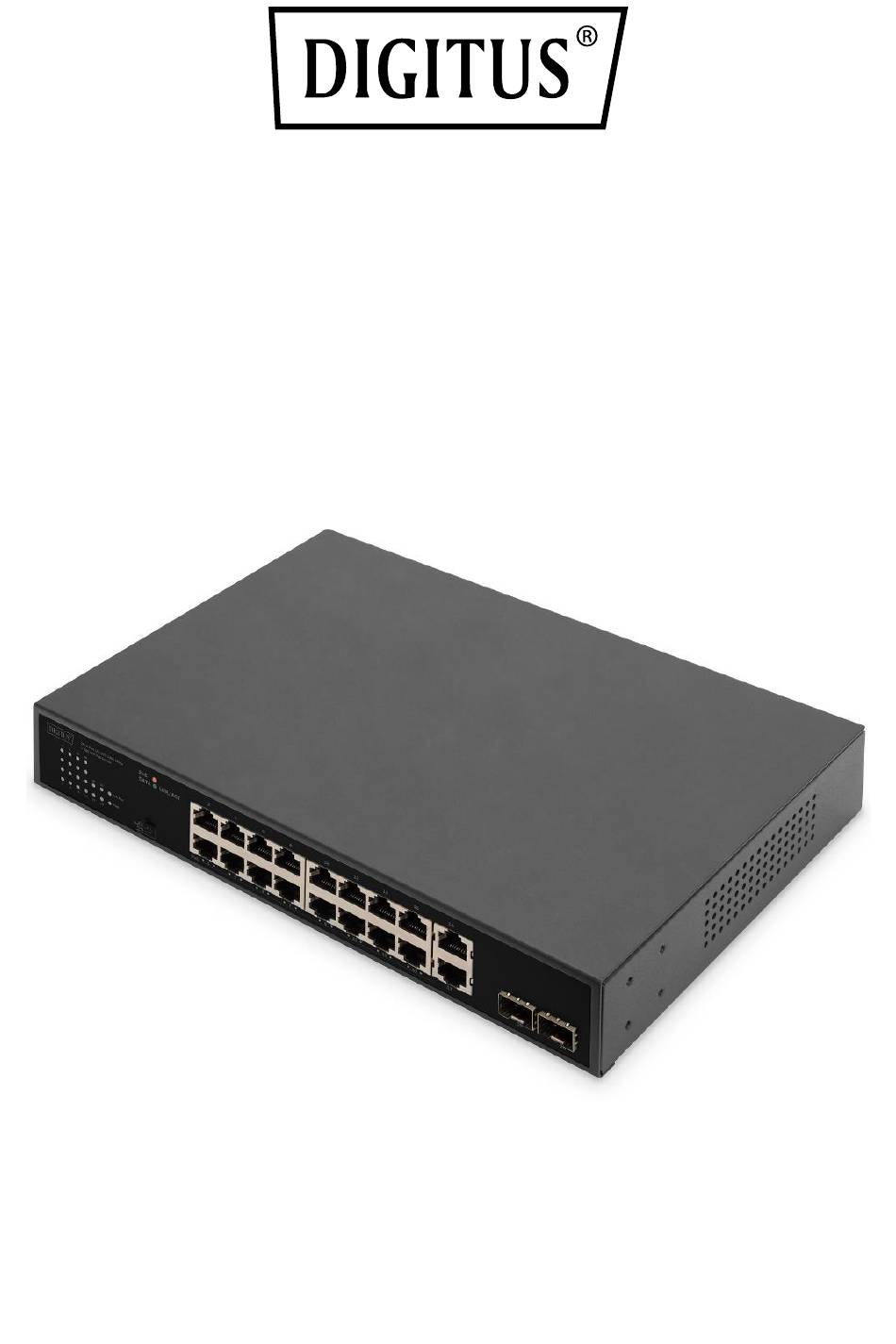

- Page 1 16+2 Port 10/100/1000 Mbps + 2 Gigabit SFP PoE Switch Quick Installation Guide DN-95358...
- Page 2 1. Introduction DN-95358 is a 16-port 10/100/1000Mbps PoE + 2G Gigabit RJ45 +2 Gigabit SFP PoE switch. The PoE ports can automatically detect IEEE 802.3af/at-compliant Powered Devices (PDs) and supply them with power. Your network is able to extend power and data transmission via a single cable to locations where there are no power lines or outlets that you could use to install devices such as APs, IP cameras or IP phones and the like.
-
Page 3: Package Contents
3. Package Contents PoE Switch x 1 User Guide x 1 Power Cord x 1 Hanging ears x 2 Rubber Feet x 4 Screw x 8 4. Specifications 16+2 Port 10/100/1000 Mbps + 2 Gigabit SFP Model PoE Switch IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z,... -
Page 4: Hardware Description
5. Hardware Description Front Panel The Front Panel Consists of 16-Port 10/100/1000Mbps Auto-Negotiation Ethernet RJ45 Ports, 2-Port Gigabit RJ45 Port and 2*1000Mbps SFP port. The LED indicators also on located on the panel. 16*10/100/1000Mbps 2*10/100/1000 2*1000 Mbps indicator Switch PoE Port Mbps port SFP port LED indicator... - Page 5 corresponding configuration take effect. Rear Panel The rear panel of 16GE(PoE)+2GE+2G SFP PoE Switch indicates an AC inlet power socket, Grounding Column. Power Socket Grounding Column Installation the Switch This part describes how to install your Ethernet Switch and make connections to it.
- Page 6 Desktop Installation Install the Switch on a desktop, please attach these cushioning rubber feet provided on the bottom at each corner of the Switch in case of the external vibration. Allow adequate space for ventilation between the device and the objects around it.
- Page 7 Turn on the switch Plug in the negative connector of the provided power cord into the power socket of the device, and the positive connector into a power outlet. After the device is powered on, it begins the Power-On Self- Test.
