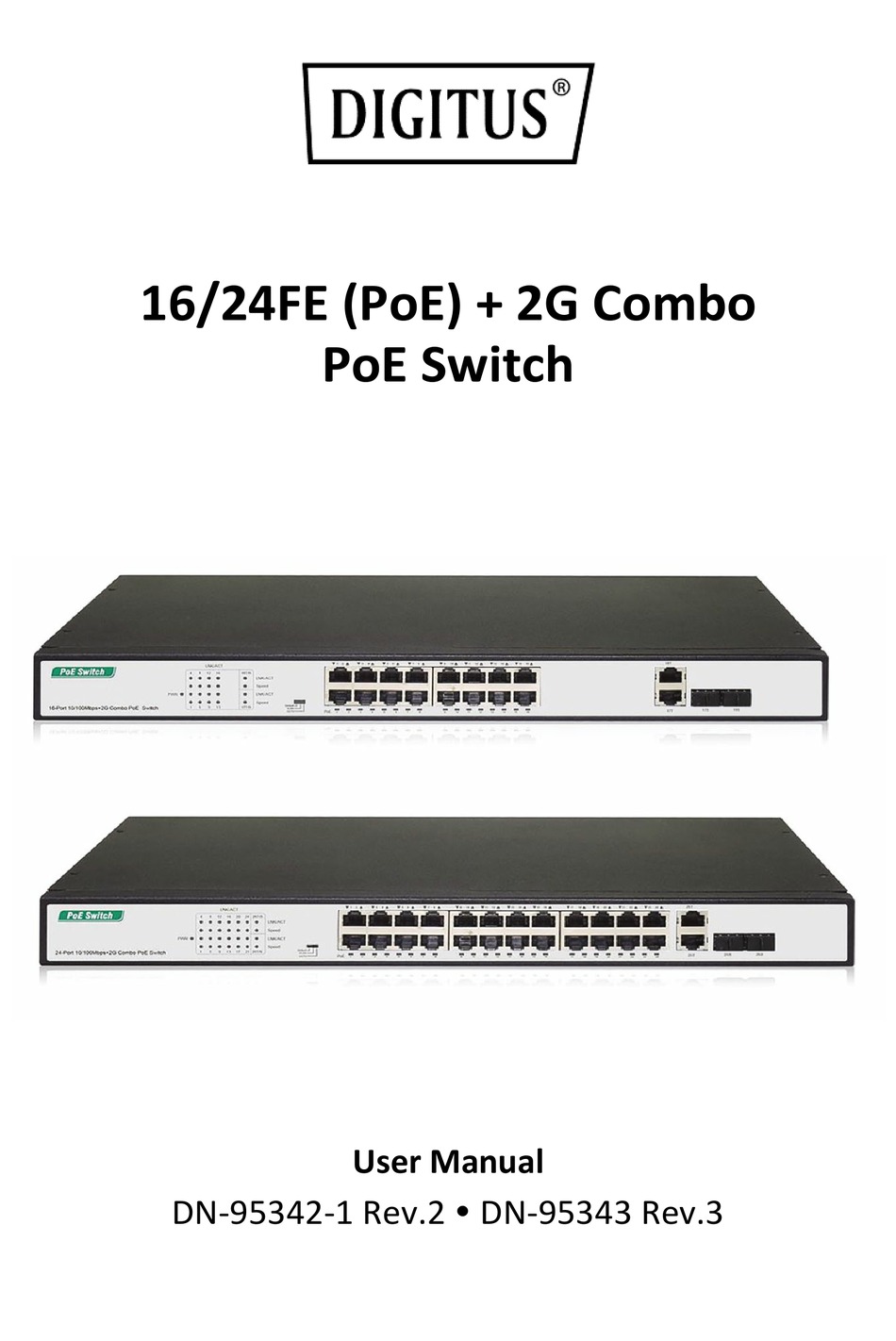

- Page 1 16/24FE (PoE) + 2G Combo PoE Switch User Manual DN-95342-1 Rev.2 DN-95343 Rev.3...
- Page 2 Introduction The DIGITUS® Combo PoE Switch are Gigabit Uplink Unmanaged Switch which provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to boost your old network to 1000Mbps. Increase the speed of your network server and backbone connections, making Gigabit connection to a server or uplinking a network necessarily.
-
Page 3: Package Contents

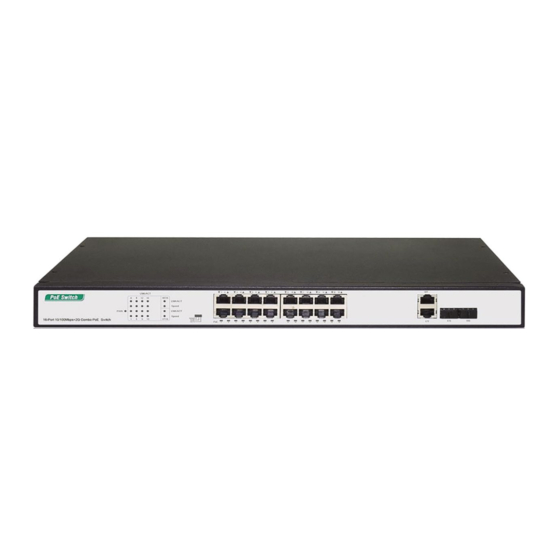

If any part is lost and damaged, please contact your local agent immediately. Hardware Description Front Panel The Front Panel Consists of DIGITUS 10/100M Auto-Negotiation Ethernet RJ45 Ports, 2-Port Gigabit Combo Port. The LED indicators are also shown on the panel. DN-95343... -
Page 4: Led Indicator
LED indicator Color Function Off: No Power supply Green Light: Indicates the switch has power Off: No device is connected to the corresponding port Light: Indicates the link through that port is successfully LNK/ACT Green established at 10/100/1000Mbps. Blink: Indicates that the Switch is actively sending or receiving data over that port. - Page 5 Rear Panel The rear panel of DIGITUS Combo PoE Switch indicates an AC inlet power socket, Grounding Column. Power Socket Grounding Column Installation the Switch This part describes how to install your Ethernet Switch and make connections to it. Please follow the following instructions in avoid of incorrect installation causing device damage and security threat.
-
Page 6: Desktop Installation
Desktop Installation Install the Switch on a desktop, please attach these cushioning rubber feet provided on the bottom at each corner of the Switch in case of the external vibration. Allow adequate space for ventilation between the device and the objects around it. The installation diagram is as follows: (Example: DN-95343 Rev.2) Rack-mountable Installation... -
Page 7: Specifications
After the device is powered on, it begins the Power-On Self-Test. The PWR LED indicator will light on all the time. Specifications Model DN-95342-1 Rev.2 DN-95343 Rev.2 Description 16FE (PoE) + 2G Combo 24FE (PoE) + 2G Combo IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z,... - Page 8 1000BASE-X: MMF or SMF SFP module PWR, PoE, LINK/ACT, Speed MAC Address Table 8K, Auto-learning, Auto-aging Transfer mode Store-and-Forward 10Base-T: 14881pps/Port Frame Forward Rate 100Base-TX: 148810pps/Port 1000Base-T/X: 1488095pps/Port Switching Capacity 7.2G 8.8G Packet forwarding rate 5.4Mpps 6.5Mpps Packet buffer 4M bit Dimensions (L*W*H) 440*207*44 mm Fan x 2...
- Page 9 This is a Class A product. In home environment, this product may cause radio interference. In this case, the user may be required to take appropriate measures. Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content.
