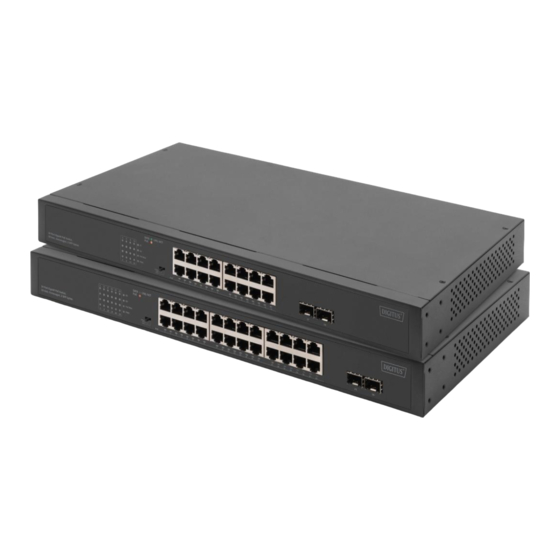

- Page 1 16/24-Port Gigabit Network Switch, 19 Inch, Unmanaged, 2 Uplink Ports, SFP Quick Installation Guide DN-95347-2 • DN-95348-2...
- Page 2 1. Introduction The PoE switch offers an outstanding solution for the efficient power supply of network components that support the IEEE802.3af/at standard. With an impressive single port output power of up to 30W, it enables the reliable supply of PoE-enabled devices. The automatic detection and identification of standard PoE receiving devices makes the power supply intelligent and prevents potential damage from non- standard or conventional devices.
-
Page 3: Package Contents
3. Package Contents 1x PoE Switch 1x User Guide 1x Power Cord 2x Rack Mount Kit 4x Rubber Feet 8x Screw 4. Specifications 16-Port Gigabit Network 24-Port Gigabit Network Model Switch, 19 Inch, Unmanaged, Switch, 19 Inch, Unmanaged, 2 Uplink Ports, SFP 2 Uplink Ports, SFP... -
Page 4: Hardware Description
5. Hardware Description Front Panel The following diagram shows the front panel of PoE Switch: DN-95347-2 LED indicator DIP Switch 16x 10/100/1000 Mbps RJ45 Port 2x 1000Mbps SFP Slot DN-95348-2 LED indicator DIP Switch 24x 10/100/1000 Mbps RJ45 Port 2x 1000Mbps SFP Slot DIP Switch: The DIP switch is located on the left panel. - Page 5 LED indicator Color Function Off: No Power supply. Green Light: Indicates the switch has power. Off: No device is connected to the corresponding port. Light: Indicates the link through that port is successfully LNK/ACT Green established at 10/100/1000Mbps. Blink: Indicates that the Switch is actively sending or receiving data over that port.
- Page 6 6. Installation the Switch Please follow the following instructions in avoid of incorrect installation causing device damage and security threat. Before cleaning the switch, unplug the power plug of the switch first. Do not clean the switch with wet cloth or liquid; ...
- Page 7 Turn on the switch Connect the power cord, plug in, and turn on the power. After the switch is started, the switch automatically initializes. If all port indicators are on and off, the system is successfully reset. The power LED indicator is steady on. Note: Please confirm the voltage is correct before power on, otherwise the switch will be damaged.
- Page 8 CE Mark Warning: This is a Class A product. In home environment, this product may cause radio interference. In this case, the user may be required to take appropriate measures. Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content.
