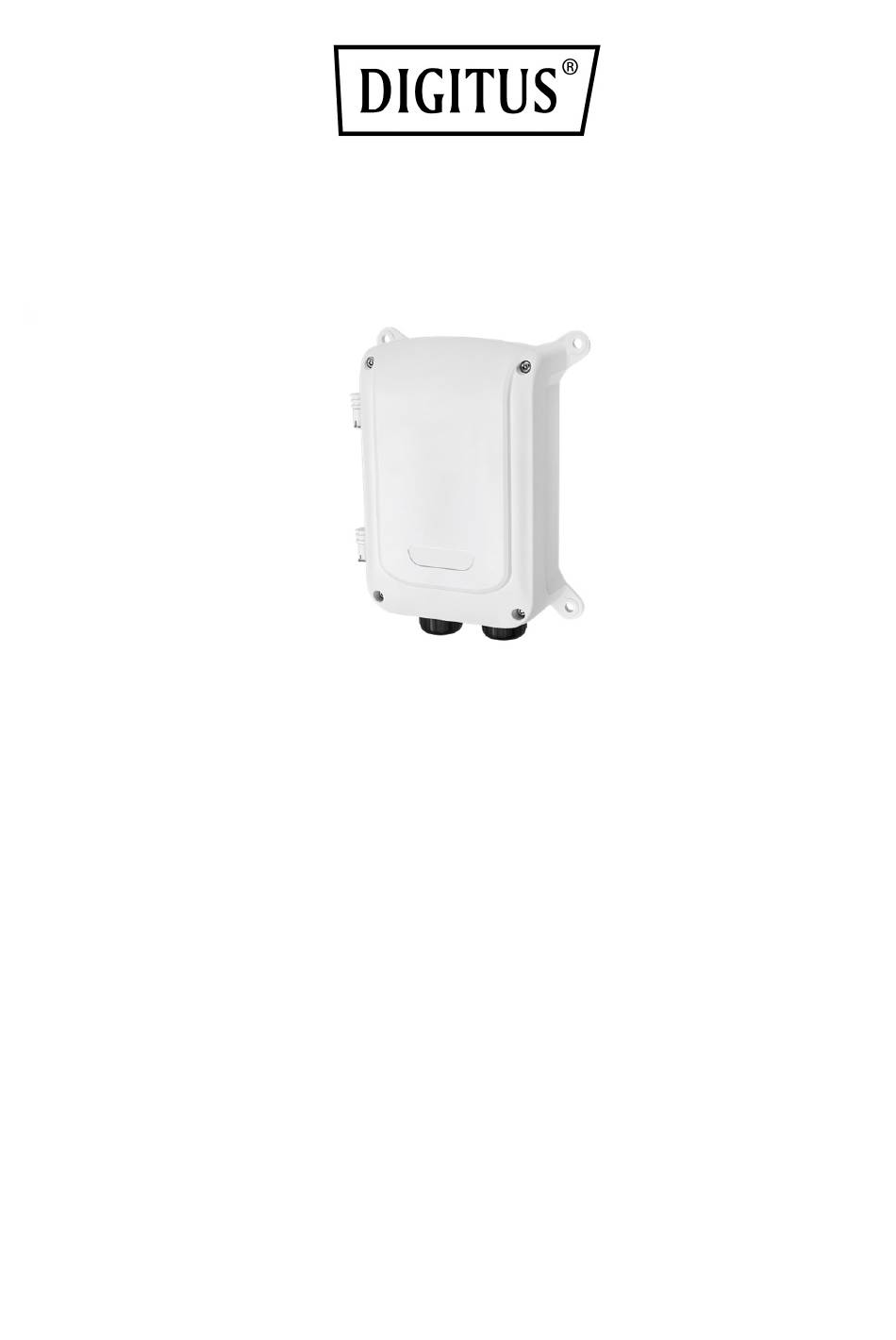

Outdoor 4-Port Fast Ethernet
PoE Switch + 1 Uplink Port
Quick Installation Guide
DN-95345
Introduction

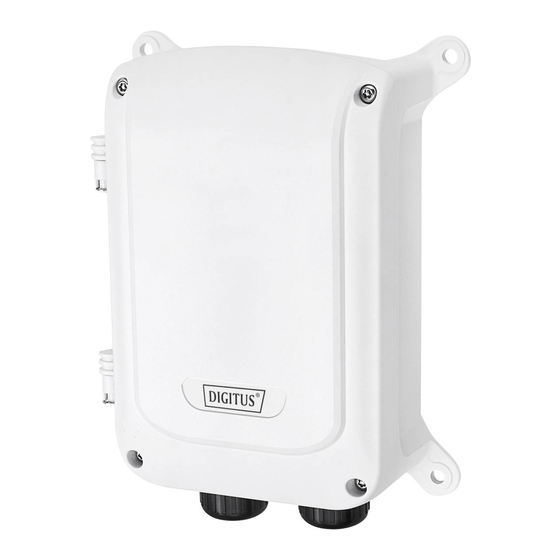

The DIGITUS® outdoor PoE switch is a high quality PoE switch in a
weatherproof housing with the IP67 protection class.The housing is very
sturdy and conforms to the IK10 vandalism protection class. The PoE switch
offers a maximum range of up to 250 meters for PoE 802.3af devices and up
to 200 meters for PoE 802.3at devices with a transmission rate of 10Mbps.
When using the standard 100m range, the transmission rate is 100Mbps.
This outdoor switch serves as an all-in-one device that is ready for use
immediately after connecting it to the mains voltage. The device requires no
settings to be made thanks to plug and play. If you you're your PoE devices
into a free PoE port, the switch will automatically detect power supply and
PoE mode. The all-in-one solution for outdoor PoE applications requires no
separate power supply and no external overvoltage protection.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Digitus DN-95345
Summary of Contents for Digitus DN-95345
- Page 1 Quick Installation Guide DN-95345 Introduction The DIGITUS® outdoor PoE switch is a high quality PoE switch in a weatherproof housing with the IP67 protection class.The housing is very sturdy and conforms to the IK10 vandalism protection class. The PoE switch offers a maximum range of up to 250 meters for PoE 802.3af devices and up...
- Page 2 Package Contents * 1x PoE switch * 1x Quick Installation Guide * 1x T25 L-wrench Important 1. Install the PoE switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust. 2. Make sure the ventilation openings on the switch are not blocked. 3.
- Page 3 Port LED1 Port LED2 Ex Mode Dip Switch EX ON Ports 1 & 2 up to 250m PoE distance. When enabled, each port is isolated, but is linked to the uplink ports. EX OFF Normal communication for ports 1 ~ 5 EX mode in 802.3af (15.4W): Camera connection up to 250m@10Mbps via EXPoE ports.
- Page 4 Installation Use the included M10 hex socket screws to secure the power box to a pole-mount or corner mount bracket. a pole-mount or corner mount bracket. 3/4" conduit...
- Page 5 The mounting hole definition is illustrated below. The same mounting hole pattern apply to all pole-mount and corner- mount brackets. Outdoor PoE switch: DN-95345...
- Page 6 Important 1. If the need should arise for connecting two outdoor switches, use the uplink ports #4 or #5. If you use PoE ports for cross-switch connections, the 12KV surge protection will not apply. 2. The cabinet must be grounded using a ground wire between the ground screw and earth ground.
- Page 7 This is a Class A product. In home environment, this product may cause radio interference. In this case, the user may be required to take appropriate measures. Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content.
