PoE+ Gigabit Switch
Web Management
16-Port + 2 Gigabit SFP
(IPv6)
Quick Installation Guide
(DN-95315)
FCC Warning
This device has been tested and found to
comply with limits for a Class A digital device,
pursuant to Part 2 and 15 of FCC Rules.
These
limits
are
designed
to
provide
reasonable
protection
against
harmful
interference when the equipment is operated
in
a
commercial
environment.
equipment generates and radiates radio
frequency energy and, if not installed and
used in accordance with the user's manual, it
may cause interference in which case users
will be required to correct interference at their
own expenses.
CE Warning
This is a Class A product. In a domestic
environment, this product may cause radio
interference in which case the user may be
required to take adequate measures.
Introduction
The
Switch
provides
16
10/100/1000Mbps NWAY RJ-45 ports and
additional 2 Gigabit SFP Open Slot to uplink.
It is designed for easy installation and high
performance in an environment where the
traffic on the network and the number of user
increased continuously. With the newest
Gigabit chip set, 19" Gigabit Ethernet switch
can fully support the highest speed without
hanging on problem even when Full-Duplex is
full loaded.
The
switch
also
provides
automatic
crossover detection functionality on each
port. It is simple and easy up-link to another
switch without any crossover cable.
The
rack-mount
size
is
specifically
designed for medium to large workgroups.
The switch can be installed where the space
is limited; moreover, it provides smooth
network migration and easy upgrade the
network capacity. The 19" size can be
rack-mount on 19" cabinet.
Key Features
 Complies with IEEE 802.3 Ethernet,
IEEE 802.3u Fast Ethernet ,IEEE 802.3ab
Gigabit Ethernet, IEEE 802.3af PoE and
IEEE 802.3at PoE+ Standards
 Provides 16 x 10/100/1000Mbps RJ-45
ports and 2 Gigabit SFP Open Slot
This
 16-port shares total power 130W and
supports Max. 30 W for each PSE/PoE port
 19" rack-mount size
 Non-blocking & Non-head-of-line blocking
full wire speed forwarding
 Store-and-forward operation support
 Supports 9 KB JUMBO packet
 Provides 16K MAC address entry
 Supports broadcast storm filtering
 All ports provide Auto-Negotiation and Auto
-MDI/ MDI-X functions
 Supports flow control: back pressure for
Half-duplex and IEEE 802.3x for Full-duplex
mode
 Smart plug & play
x
Package Contents
Before you start to install this Switch, please
verify your package contain the following
items:
• One PoE Gigabit Ethernet Switch
• Rack-mount Kit for Rack Installation
• One AC Power Cord
• One CD ( User's Manual )
Note: If any of these items is missing or
damaged, please contact your local supplier for
replacement.

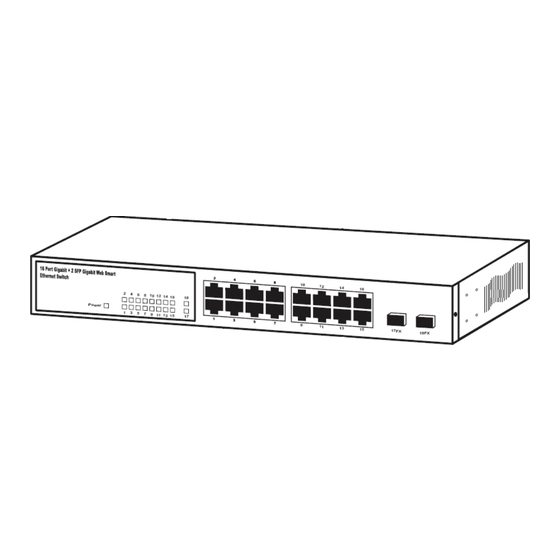

Front Panel (LEDs)
LED Indicators of 16
Ports Gigabit
+ 2 Gigabit SFP Ethernet Switch
LED
Status
Description
On
Power on
Power
off
Power off
LINK/
On
Link
ACT
Flashing Data activating
Port 1~16
Port is linked to Power
On
Device
PoE
Port 1~16
No Power Device is
Off
connected
SFP
On
SFP module is plugged
Port 17 –
No SFP module is
Off
18
plugged
