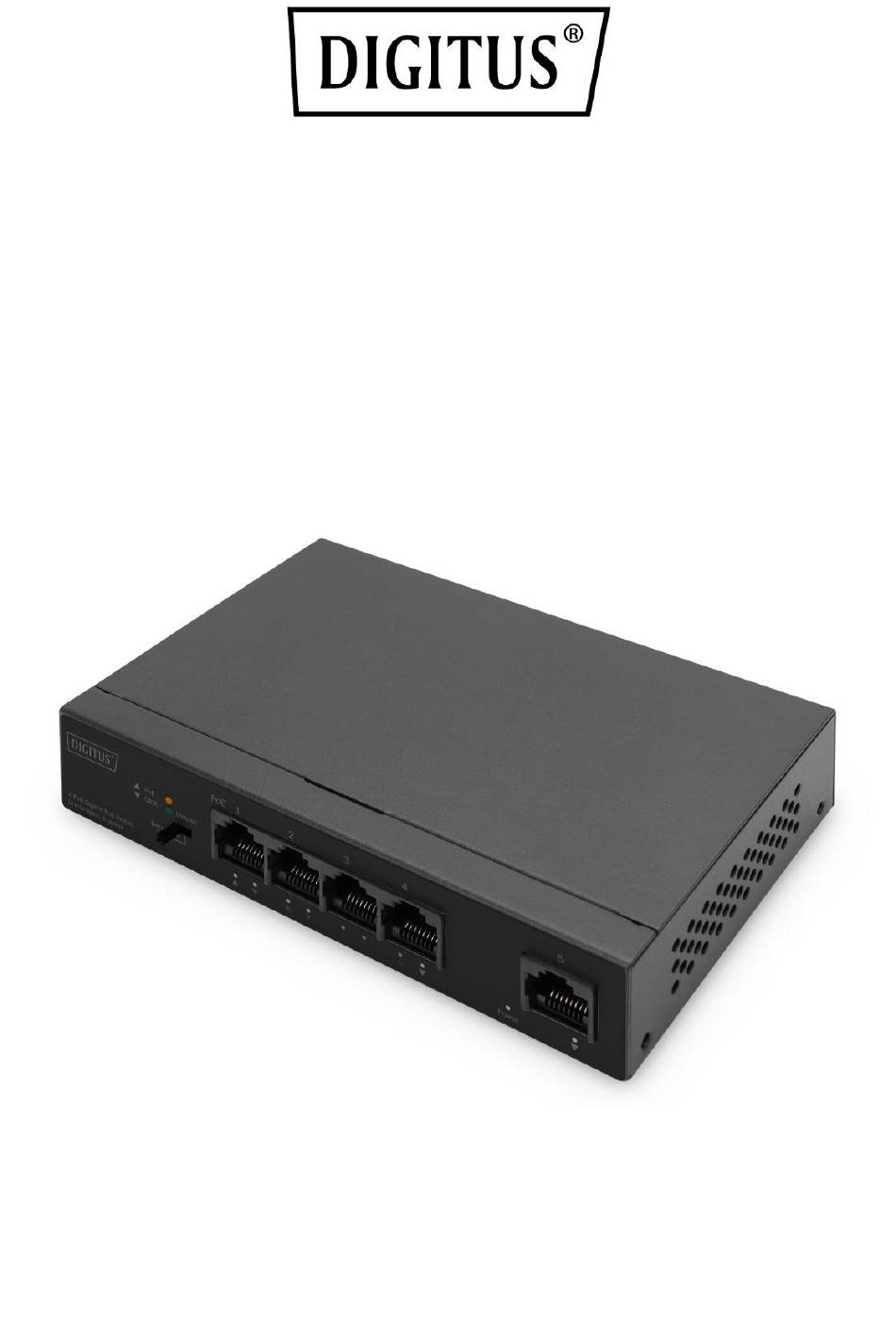

- Page 1 DIGITUS 4 Port Gigabit PoE Switch, Unmanaged, 1 Uplink Quick Installation Guide DN-95330-1...
- Page 2 1. Introduction The DIGITUS 5-Port Gigabit Desktop Switch with four Power over Ethernet ports and one additional uplink Port, offers your network significant improvement in terms of performance and efficiency. Thanks to PoE support, you only need a single (network) cable for power and data transfer.
-
Page 3: Package Contents
3. Package contents 1x PoE Switch 1x QIG 1x Power Cord 4. Specifications Model 4-Port Gigabit+1GE PoE Switch IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3az, Standard IEEE802.3x, IEEE802.3af, IEEE802.3at 10BASE-T: UTP category 3,4,5 cable（≤100m） Network - 100BASE-TX: UTP category 5, 5e cable（≤100m） Media(Cable) 1000BASE-T: UTP category 5e, 5 cable（≤100m）... -
Page 4: Hardware Description

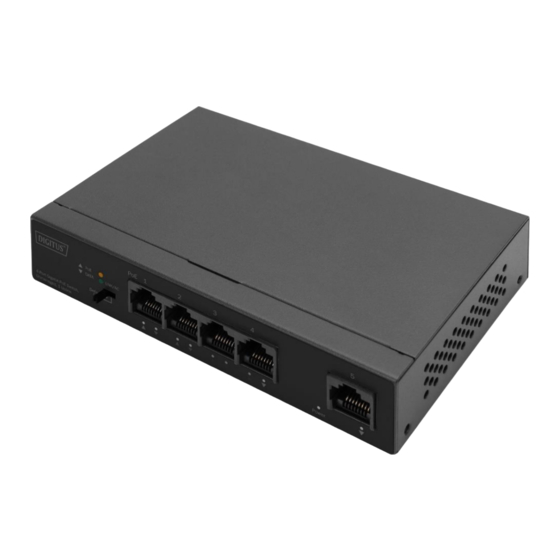

5. Hardware Description Front Panel The front panel consists of 5*10/100/1000Mbps adaptive RJ45 ports and related indicators, as shown in the following figure: LED Indicator DIP Switch 5*10/100/1000 Mbps RJ45 Ports 4-Port Gigabit+1GE Port description: 10/100/1000Mbps RJ45 Ports Supports 10Mbps, 100Mbps and 1000Mbps rate adaptation, and supports auto-MDI /MDIX. - Page 5 LED Indicator The LED indicators of the Switch are shown in the following table. Users can monitor the work and running status of the Switch conveniently and quickly through the following indicators: Color Function Off: No Power supply. Green Light: Indicates the Switch has power.
- Page 6 Installation the Switch Precautions: To avoid equipment damage and personal injury, observe the following precautions: The Switch room should be dry and ventilated, free from corrosive gases and strong electromagnetic interference. The humidity of the Switch equipment room should be lower than 90% and around 25 degrees Celsius.
-
Page 7: Installation Environment
6. Installation Environment Before installation, make sure that the proper working environment is available, including power requirements, adequate space, proximity to other equipment to be connected, and other equipment in place. Please confirm the following installation requirements: Ensure the stability of the workbench and good grounding; ... - Page 8 Turn on the switch The PoE switch can be used with AC power supply. Powering on the switch, it will automatically initialize and its LED indicators will respond as follows: Firstly, the Power LED indicator will light up. ...
