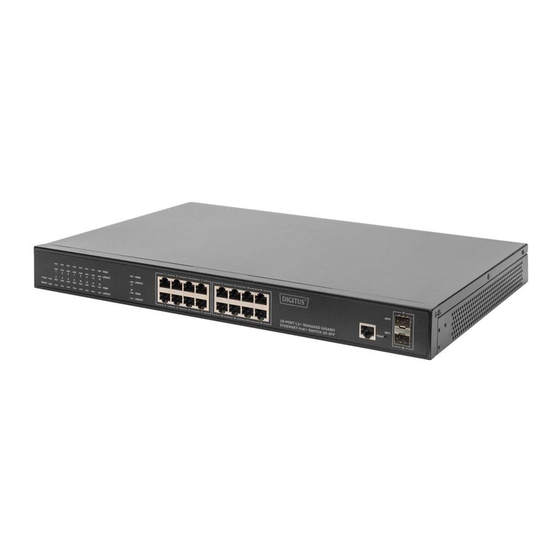

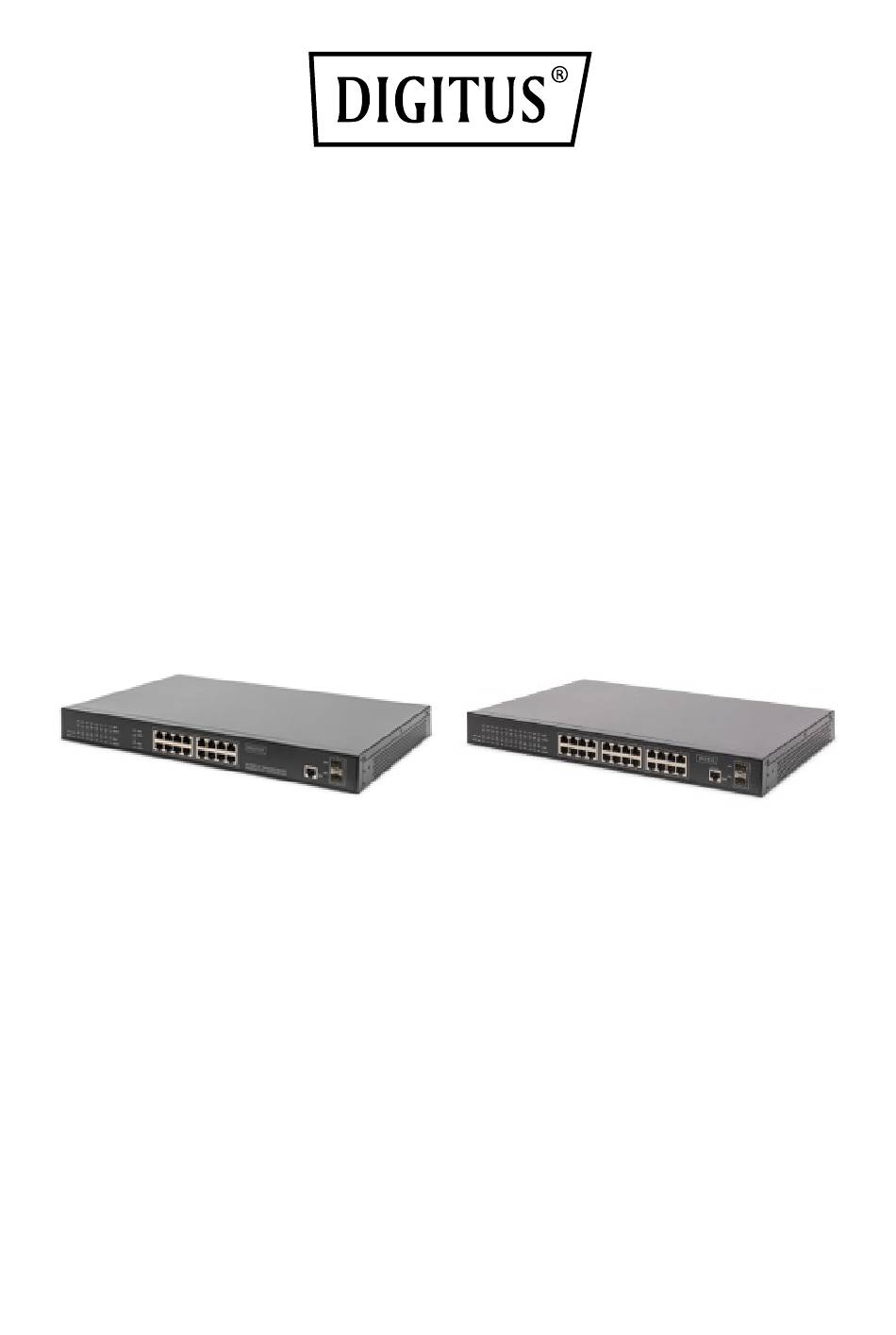

- Page 1 GIGABIT MANAGED PoE SWITCH DN-95351 (16 Port) DN-95352 (24 Port) Quick Start Guide...
- Page 2 Introduction Gigabit managed switch designed and developed solely for the purpose of building high-performance gigabit network requirements. Provide a comprehensive security protection system Perfect QoS strategy and rich VLAN function Management and maintenance are simple and can be applied to small and medium enterprises Core layer of community and school.
-
Page 3: Product Display
2*mounting brackets 4*mats 6*brackets screw Product Display Front panel sketch map 1. DN-95351: 16*10/100/1000M PoE Port+2*1000M SFP+1*Console, Rackmount, 19-inch steel case. 2. DN-95352: 24*10/100/1000M PoE Port+2*1000M SFP+1*Console, Rackmount, 19-inch steel case PWR: The indicator lights up to indicate that the switch is connected to the power supply. - Page 4 Back panel sketch map The 19-inch steel case, back panel sketch map Power adapter interface: The power supply of the switch is inserted into the port, insert additional adapter Single phase three wire socket: The power supply of the switch is inserted into the port, and the input voltage of AC terminal is 100 -240V 50/60Hz Grounding: Make the equipment ground Product mounting...
- Page 5 Mounting Switch Rack Mounting 1. Check the grounding and stability of the rack. 2. Secure the supplied rack-mounting brackets to each side of the device with supplied screws, as illustrated in the following figure. 3. After the brackets are attached to the device, use suitable screws (not provided) to secure the brackets to the rack, as illustrated in the following figure.
-
Page 6: Connect Port
Connect Port Connect Ethernet port Connect an Ethernet port of the switch to the device by RJ45 cable as the following figure shows Figure 3-1 Connect Ethernet port Connect SFP port The optical fiber module is grabbed from the side and inserted smoothly along the switch SFP slot until the optical module is in close contact with the switch. -
Page 7: Connect The Power Cord
Figure 4-1 Single phase three wire power outlet Connect the power cord The Rackmount direct access to AC100~240V, 50~60Hz city electricity Figure 4-2 Power core connect Connecting to the Ground The grounding cable is important to protect the switch from electrical interference. -
Page 8: Check After Installation
Check after installation Please check the following items after installation: check whether there is enough space for heat exchange, air circulation is smooth check the power supply socket power supply switch is in acc ordance with the specifications ... - Page 9 Managed PoE Switch Hardware Parameters Type DN-95351 DN-95352 16*10/100/1000M 24*10/100/1000M Port 2*SFP 2*SFP 1*Console 1*Console PoE standards IEEE802.3af/at, single port PoE power 30W PoE Port PoE Budget 380W Reset Bandwidth 56Gbps 56Gbps Packet forwarding 40.32Mpps 40.32 Mpps 500Mhz 128M Buffer 4.1M...
- Page 10 Management switch WEB software function IEEE 802.3x IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z IEEE Standards 802.3ad IEEE 802.3q, IEEE 802.3q/p IEEE 802.1w, IEEE 802.1d, IEEE 802.1S, IEEE802.1X MAC Address 16K MAC addresses; MAC address learning and aging STP (Spanning Tree Protocol) Up to 4095 VLAN VLAN Voice VLAN,...
- Page 11 Support 256 groups of ACL Teams that support 4 different priorities per port Security User port + IP address + MAC ACL based on IP and MAC Security properties of port-based MAC address quantities Support system CPU self-protection 802.1p port queue priority algorithm Teams that support 4 different priorities per port Cos/Tos, QOS sign WRR (Weighted Round Robin),...
