ACME DMX512 Dynamic Scan User Manual page 5

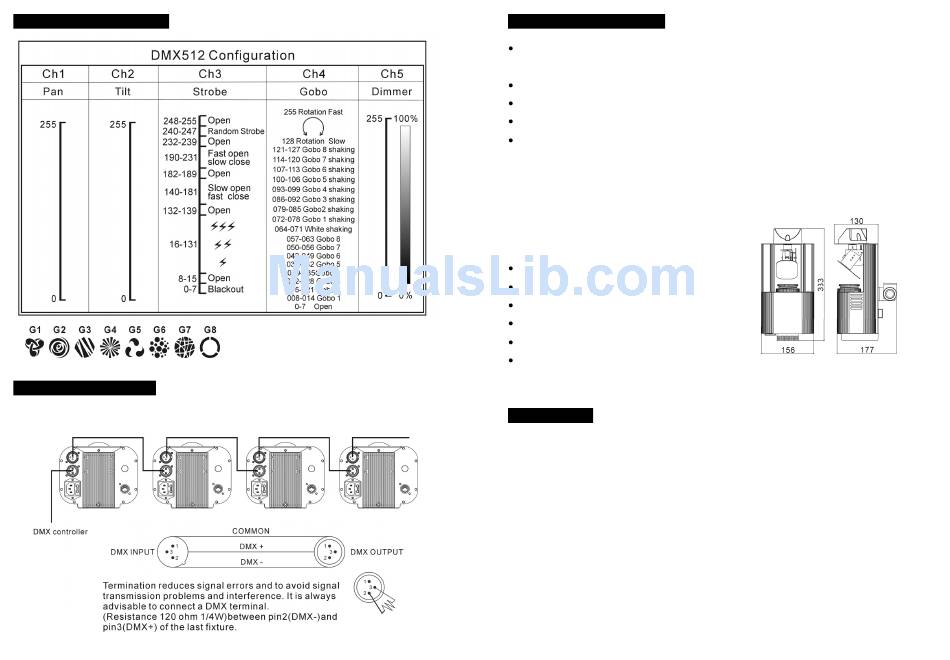

5. DMX 512 Configuration
6. DMX 512 Connection
The DMX 512 is widely used in intelligent lightings and with a maximum of 512 channels.
7A
2. Technical Specification
It can be operated by DMX512 control or can be used as an individual unit without
controller.
Please use a 3 pin XLR cable/plug when link in master/slave mode.
Gobo wheel with 8 gobos plus open
Smooth 0-100% dimming, and variable strobe speed.
5 Channels
Channel 1 = Pan
Channel 2 = Tilt
Channel 3 = Strobe
Channel 4 = Gobo
Channel 5 = Dimmer
Voltage: AC 100-240V~50/60Hz
Fuse: T 2A
LED: 1 x 10W LED
Power Consumption: 31W
Dimension: 177 x 156 x 333 mm
Weight: 3kg
3. Installation
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit
is firmly fixed to avoid vibration and slipping while operating. Always ensure that the
structure to which you are attaching the unit is secure and is able to support a weight of 10
times of the unit's weight. Also always use a safety cable that can hold 12 times of the
weight of the unit when installing the fixture.
The equipment must be fixed by professionals. And it must be fixed at a place where is out
of the touch of people and has no one pass by or under it.
