ACME Xperior 700SZ Spot User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

TM
Xperior
700SZ Spot
User Guide
Please read these instructions carefully before use

Advertisement

Table of Contents
loading

Related Manuals for ACME Xperior 700SZ Spot

Summary of Contents for ACME Xperior 700SZ Spot

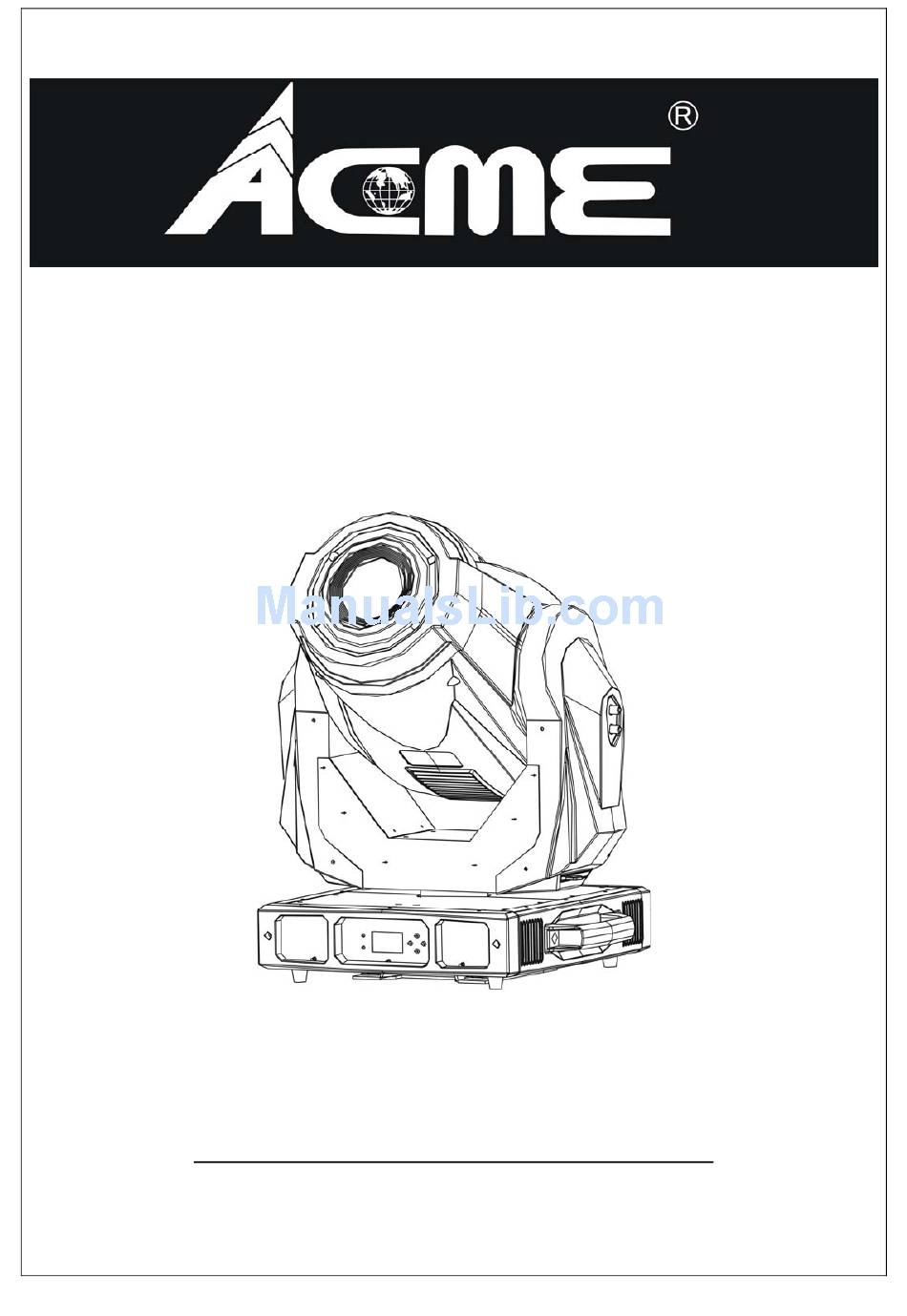

  • Page 1 Xperior 700SZ Spot User Guide Please read these instructions carefully before use...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Safety Instruction..................2 2. Installation ....................4 3. Technical Specification ................5 4. Description ....................8 4.1 Description of the fixture ..................8 4.2 Control Panel......................8 5. Gobo and Lamp..................9 5.1 Inserting/Exchanging rotating gobos ...............9 5.2 Lamp ........................10 6.

  • Page 3: Safety Instruction

    1. Safety Instruction Please read carefully the instruction manual, which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 during its operation, and allow about 15 minutes for cooling the unit down before replacing bulb or maintenance as it could be very hot. Avoid any inflammable liquids, water or metal objects entering the unit. Once it happens, cut off the mains power immediately. Do not operate in dirty or dusty environment, do clean fixtures regularly.

  • Page 5: Installation

    2. Installation Unpacking the fixture (for flight case pack only) 1. Stop the flight case via the brake sheet above the wheels. 2. Unlock the lock modules (1) and open the cover board. 3. Prop the cover board with lid bracket. 4.

  • Page 6: Technical Specification

    3. Technical Specification Power supply - AC 100V~240V 50/60Hz Power Consumption - 881W (230V) - 919W (120V) Fuse - T 15 A Lamp - Philips MSR Gold 700/2 Mini FastFit Battery backup display - Setting DMX address or other functions without connecting to mains power. - Battery for LCD display charges automatically when the fixtures connects to the mains power.
  • Page 7 - Color wheel: 7 diachronic colors + open. - Rainbow effect in both directions. - Easy calibration and maintenance by magnetic home positioning. - CMY speed adjustable. - Optional multiple preset colors and macros available. Gobo wheel - Gobo size: Ø26.8mm (Ø24mm for image) - Gobo Wheel 1: 7 rotating, index able, easily replaceable gobos + open.
  • Page 8 Photometric diagram DMX Channels Mode Mode 1 Mode 2 Mode 3 22-CH 22-CH 29-CH Shutter Pan Fine Dimmer Pan Fine Tilt Cyan Tilt Tilt Fine Magenta Tilt Fine Pan /Tilt Speed Yellow Pan /Tilt Speed Shutter Color Function Dimmer Gobo 1 Pan/Tilt Macro Color R-Gobo 1...

  • Page 9: Description

    Iris Zoom Focus Shutter Dimmer Dimmer Fine 4. Description 4.1 Description of the fixture 1. Arm 2. Front panel 3. head 4. Tilt lock button (Black) 5. Tilt unlock button (Gray) 6. Pan lock 7. Handle 8. Base 9.Antenna (for XP-700SZ WT only) The head can be locked for transportation protection-the tilt lock button (4) is pressed and the pan lock/unlock lever (6) is in lock position.

  • Page 10: Gobo And Lamp

    ○ Button MENU To enter into move backward or leave the menu To go backward to move up in the menu DOWN To move down in the menu ENTER To perform the desired functions ○ 4 Antenna (for XP-700SZ WT only) Receive wireless signal from a wide range ○...

  • Page 11: Lamp

    CAUTION: Never unscrew the screws of the rotating gobo as the ball bearing will otherwise be opened! Please follow the steps below to insert/change rotating gobos 1. Open the cover by loosening the fastening screws on the cover. 2. Push the gobo plate (follow the direction 1) and gently pull out the plate (follow the direction 2).

  • Page 12: How To Set The Unit

    tube rupture. The risk increases with age, temperature and improper handling of the lamp. Do not use the lamp longer than its lifespan. Make sure the lamp is located in the center of the reflector for the best projection. Change Lamp In case of replacement of the lamp or maintenance, do not open the fixture within 15 minutes until the unit cools down after switching off.

  • Page 13: Main Function

    Fig.4 Fig.5 Explanation of fig.5: Lamp 40°C Present temperature of base CPU is 40°C Present start address Md.1 22Ch. Present channel mode is mode 1 (22 channels mode) Lamp 30°C Present temperature of lamp is 30°C Warning signal blinking direct resetting error 6.2 Main Function Turn on the unit, press MENU button into menu mode, press UP and DOWN button until the required function is shown on the monitor.
  • Page 14 DMX Address Mode 1(22) Mode 2(22) DMX Channel Mode Mode 3(29) DMX Functions View DMX Value Active WDMX Setting Retransmit Reset Menory Pan Inverse Tilt Inverse Fixture Setting P/T Feedback Bl.o. P/T Moving Bl.o. Color Change Bl.o. Gobo Change On/Off MENU State/Power On Off Via Dmx...
  • Page 15 DMX Functions Enter menu mode, select DMX Functions, press ENTER button to confirm, use UP and DOWN button to select DMX Address, DMX Channel Mode, View DMX Value or WDMX Setting. DMX Address—DMX512 address setting Select DMX Address, press ENTER button to confirm, the present address will blink on the display, use UP and DOWN button to adjust the address from 0 to 512, press ENTER button to store.
  • Page 16 Press MENU button back to the last menu or let the unit idle one minute to exit menu mode. WDMX Setting—wireless control setting (For the unit with wireless receiver built-in only) Select WDMX Setting, press ENTER button to confirm. Use UP and DOWN button to select Active, Retransmit or Reset Memory, press ENTER button to store.
  • Page 17 Pan Inverse Select Pan Inverse, press ENTER button to confirm, present mode will blink on the display, use UP and DOWN button to select No (normal) or Yes (pan inverse), press ENTER button to store. Press MENU button back to the last menu or let the unit idle one minute to exit menu mode.
  • Page 18 Yes (blackout while changing gobo), press ENTER button to store. Press MENU button back to the last menu or let the unit idle one minute to exit menu mode. Lamp Setting ° Attention: The lamp will not be on unit detected temperature is lower than 45 Enter menu mode, select Fixture Setting, press ENTER button to confirm, use UP and DOWN button to select On/Off, State/Power on, Off Via DMX, On if DMX on, Off if DMX off, Cooling Mode, Ignition Delay or Low Power Delay..
  • Page 19 display, use UP and DOWN button to select Yes (Lamp turns on when DMX signal is detected) or No (keep the present state), press ENTER button to store. Press MENU button back to the last menu or let the unit idle one minute to exit menu mode.(If the lamp is off via DMX signal, you can reconnect the DMX controller to make the lamp on).
  • Page 20 and DOWN button to select Display Inverse, Backlight Auto Off, Backlight Intensity or Temperature unit. Display Inverse Select Display Inverse, press ENTER button to confirm, present mode will blink on the display, use UP and DOWN button to select No (normal display) or Yes (inverse display), press ENTER button to store.
  • Page 21 automatically test pan, tilt, color, CMY, gobo, gobo rotation, shutter, dimmer, prism, prism rotation, frost, zoom, iris, focus, flatb and lamp on/off. Press MENU button back to the last menu or exit menu mode after auto test. Manual Test Select Manual Test, press ENTER button to confirm, the present channel will show on the display, use Up and DOWN button to select channel, press ENTER button to confirm, then use UP and DOWN button to adjust the value, press ENTER button to store, the fixture will run as the channel value indicates.
  • Page 22 and DOWN button to select Pan/Tilt, Color/CMY, Gobo, Shutter/Dimmer, Focus/Zoom/Prism/Frost , Iris/Flatb or All. — Pan/Tilt Reset Pan/Tilt Select Pan/Tilt, press ENTER button to confirm, use UP and DOWN button to select Yes (the unit will run built-in program to reset pan and tilt to their home positions) or No, press ENTER button to store.

  • Page 23: Home Position Adjustment

    — Reset All Select All, press ENTER button to confirm, use UP and DOWN button to select Yes (the unit will run built-in program to reset all motors to their home positions) or No, press ENTER button to store. Press MENU button to exit. Special Functions Enter menu mode, select Special Functions, press ENTER button to confirm, use UP and DOWN button to select Fixture Maintenance or Factory Setting.
  • Page 24 Pan—pan home position adjust Enter offset mode, Select Pan, press ENTER button to confirm, the present position will blink on the display, use UP and DOWN button to offset the value from -128 to 127, press ENTER button to store. Press MENU button to exit. Tilt—Tilt home position adjust Enter offset mode, Select Tilt, press ENTER button to confirm, the present position will blink on the display, use UP and DOWN button to offset the value from -128 to 127, press...
  • Page 25 Color—Color home position adjust Enter offset mode, Select Color, press ENTER button to confirm, the present position will blink on the display, use UP and DOWN button to offset the value from -128 to 127, press ENTER button to store. Press MENU button to exit. Cyan—Cyan home position adjust Enter offset mode, Select Cyan, press ENTER button to confirm, the present position will blink on the display, use UP and DOWN button to offset the value from 0 to 255, press...

  • Page 26: Error Information

    blink on the display, use UP and DOWN button to offset the value from 0 to 255, press ENTER button to store. Press MENU button to exit. Prism—Prism home position adjust Enter offset mode, Select Prism, press ENTER button to confirm, the present position will blink on the display, use UP and DOWN button to offset the value from 0 to 255, press ENTER button to store.
  • Page 27 Temperature Sense Error It appears when temperature check board is damaged. Lamp Too Hot Power Off It appears when temperature is detected higher than 110℃. Check if the unit is properly ventilated, or fans or temperature check board may is damaged. Lamp Too Hot Low Power It appears when detected temperature is higher than 105℃.

  • Page 28: Control By Universal Dmx Controller

    7. Control By Universal DMX Controller 7.1 Connection ATTENTION Termination reduces signal errors and to avoid signal transmission problems and interference. It is always advisable to connect a DMX terminal (Resistance 120 ohm 1/4W between pin2 (DMX-) and pin3 (DMX+) of the last fixture). 1.

  • Page 29: Channel Mode Setting

    when one of the units’ power is disconnected. 4. Each lighting unit needs to have a DMX address to receive the data by the controller. The address number is between 0-511 (usually 0 & 1 are equal to 1). 5. The end of the DMX 512 system should be terminated to reduce signal errors. 6.

  • Page 30: Dmx 512 Configuration

    7.4 DMX 512 Configuration Please refer to below configurations to control the fixtures Attention: 1. The unit will maintain the last condition until reset if you cut-off the DMX signal) 2. For the channel Function, keep the value for about 5 seconds, then the corresponding function will take into effect.
  • Page 31 22 Channels mode 1: 22Channels(Mode 1) Pan/Tilt Pan Fine Tilt Tilt Fine Shutter Speed Slow Open 248-255 Random 240-247 Strobe Slow Open 204-239 Slow close Slow Close 168-203 Fast Open Slow Open 132-167 Fast Close 16-131 Open 8-15 Blackout Fast Ch10 Ch11 Cyan...
  • Page 32 22Channels(Mode 1) Ch12 Ch13 Ch14 Ch15 Ch16 Preset Color Gobo 1 R-Gobo 1 Gobo2 Prism 234-255 Color11 213-233 Color10 128-255 192-212 Color9 171-191 Color8 149-170 Color7 128-148 Color6 8-127 107-127 Color5 086-106 Color4 064-085 Color3 043-063 Color2 No Function 022-042 Color1 000-021 White Ch17 Ch18...
  • Page 33 22 Channels mode 2: 22Channels(Mode 2) Magenta Cyan Shutter Dimmer Yellow Color 255 Rotation Fast 100% 100% 100% 100% Open 248-255 Random 240-247 Strobe 194 Rotation Slow Slow Open 190-193 Stop 204-239 Slow close 189 Rotation Slow Slow Close 168-203 Fast Open Slow Open 132-167...
  • Page 34 22Channels(Mode 2) Ch12 Ch13 Ch14 Ch15 Ch16 R-Prism Iris Focus Zoom 255 Rotation Fast 194 Rotation Slow 190-193 Stop 189 Rotation Slow 128 Rotation Fast 0-127 Index 100% 100% Ch17 Ch18 Ch19 Ch20 Ch21 Ch22 Pan/Tilt Pan Fine Tilt Tilt Fine Frost Function Speed...
  • Page 35 29 Channels mode: 29Channels(Mode 3) Pan/Tilt Pan Fine Tilt Tilt Fine Function Speed Slow Fast Ch10 Ch11 Ch12 P/ T Macro Pan/Tilt Cyan Magenta Yellow Color Speed Macro 248-255Macro31 240-247Macro30 255 Rotation Fast Slow 100% 100% 100% 232-239Macro29 224-231Macro28 216-223Macro27 208-215Macro26 194 Rotation Slow 200-207Macro25...
  • Page 36 29Channels(Mode 3) Ch13 Ch14 Ch15 Ch16 Ch17 Ch18 R-Gobo 1 Preset Color Color Macro Gobo 1 R-Gobo 1 Speed Fine 234-255 Color11 235-255Macro12 Slow 214-234Macro11 213-233 Color10 255 Rotation Fast 194-213Macro10 192-212 Color9 173-193 Macro9 171-191 Color8 153-172 Macro8 194 Rotation Slow 149-170 Color7 132-152 Macro7 190-193 Stop...

  • Page 37: Lighting Library Download

    The whole series of Xperior fixtures’ personalities have been built into the most widely used consoles from Avolites, Compulite, Daslight, MA Lighting, Wholehog and Zero 88. Please visit their websites or ours: http://www.acme.com.cn/ to download the latest Fixture Personality Library.

  • Page 38: Update Software

    8. Update Software Download update file from our web site, follow the user manual of IU-01 to update the fixture via IU-01(not included). 9. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A.

  • Page 39: Maintenance And Cleaning

    5. Change a new belt (D), put the belt around the axis gear and motor gear. 6. Plug all the connect wires back upon the belt. 7. Tighten all the screws. F. If The tilt belt is broken 1. Turn off the mains power. 2.
  • Page 40 EC Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 2004/108/EC. EN55103-1:1996; EN55103-2:1996; EN61000-3-2:2006 EN61000-3-3:2008 & Harmonized Standard EN 60598-2-17: 1989 +A2: 1991 EN60598-1:2008+A11:2009 Part 1:General requirements and test Following the provisions of the low voltage directive 2006/95/EC...
