4. How To Control The Unit

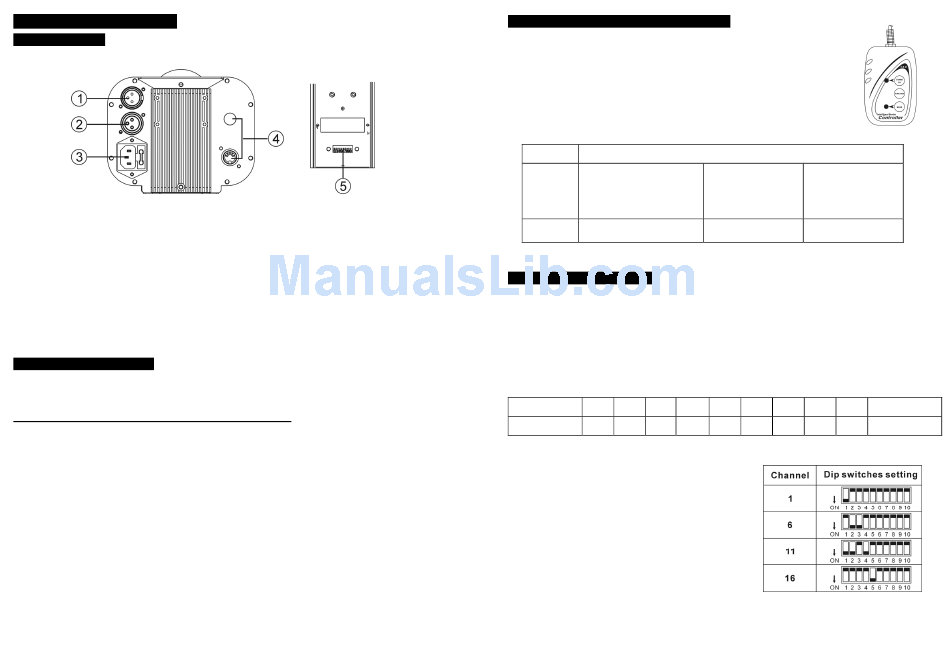

4.1 Control Panel
○
1 DMX output: For DMX512 link, use 3/5-pin XLR plug cable to link the next unit.
○
2 DMX input: For DMX512 link, use 3/5-pin XLR plug cable to input DMX signal.
○
3 Power：Connect to supply mains power.
○
4 Only for remote control: Connecting with CA-8/CA-9/CA-9RTX to control the unit for
Stand by, Function and Mode function.
○
5 Dip switches：For different function setting.
4.2 Master/Slave Operation
The unit can be linked together in daisy chain as many as you need in master/slave mode
to perform the great built-in pre-programmed lighting shows triggered by music.
In Master/Slave mode refer to the DMX settings below:
Master unit: DMX start address MUST be set to 001. (First DIP switch = ON, all others
are OFF)
Slave units: DMX start address may have any value but NOT 001 (example: set the first 3
DIP switches to ON)
2-Light Show
Dipswitch 10 "off" means the unit works normally and "on" means 2-Light show. In order to
create a great light show, you can set dip switch 10 "on" on any unit that is linking to the
master unit to get contrast movement to the master unit, even if you have two units only.
Dipswitch 10 on the first (Master) unit is no use for the 2-light show as it is the master unit
that operates the light show.
5A
4.3 Easy Controller (by CA-8/CA-9/CA-9RTX)
The easy remote control is used only in master/slave mode. By
connecting to the 4-pin jack of the first unit, you will find that the remote
controller on the first unit will control all the other units for Stand by,
Function and Mode selection
Stand by Blackout the unit
1. Synchronous Strobe
Function 2. Two light Strobe
3. Sound Strobe
Mode Strobe (LED OFF)
4.4 Universal DMX Controller
When using a universal DMX controller to control the chain of units, you have to set DMX
address by Dip switches from 1 to 9 to make sure all the units will receive its DMX signal.
The dip switch 10 is used to choose channel mode. Please refer to the following diagram
to know how to address your DMX 512 system in the binary code.
DMX 512 Address Chart:
Dip-switches # 1 # 2 # 3 # 4
Value 1 2 4
• Examples:
Unit 1：dip / on: #1 (=1)
Unit 2：dip / on: #2, #3 (2+4=6)
Unit 3：dip / on: #1, #2, #4 (1+2+8=11)
Unit 4：dip / on: #5 (=16)
Select show Select Gobo
Show (LED ON) LED blinking
# 5 # 6 # 7 # 8 # 9
8 16 32 64 128 256
6A
#10
2-Light show
