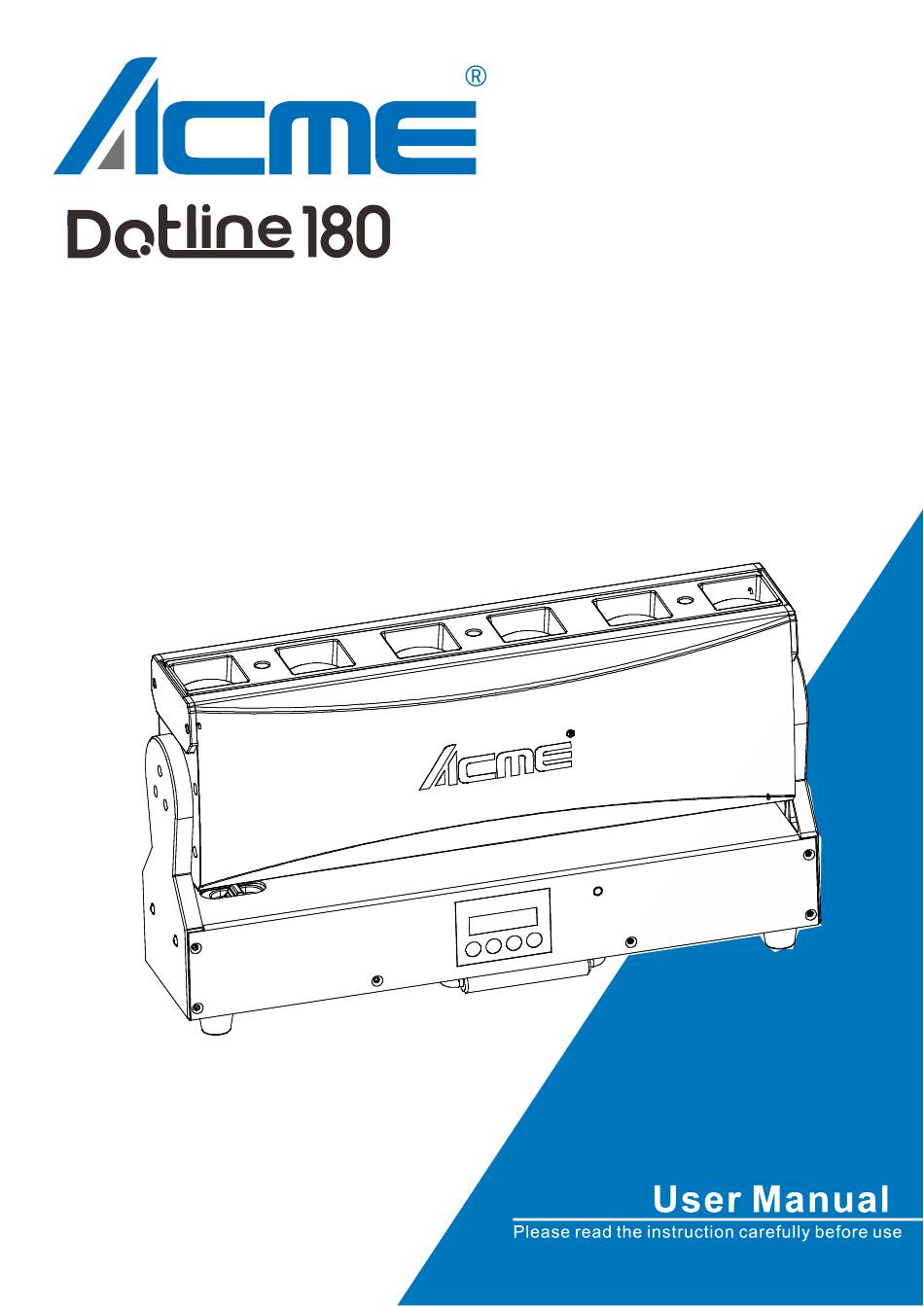

ACME Dotline180 User Manual
  1. Manuals
  2. Brands
  3. ACME Manuals
  4. Lighting Equipment
  5. Dotline180
  6. User manual

ACME Dotline180 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for ACME Dotline180

Summary of Contents for ACME Dotline180

  • Page 2: Table Of Contents

    CONTENTS 1. Safety Instructions ..................2 2. Technical Specifications ................. 4 3. How To Set The Unit ..................5 3.1 Control Panel ................... 5 3.2 Main Functions ..................7 3.3 Home Position Adjustment ..............15 4. Control By Universal DMX Controller ............17 4.1 DMX512 Connection ................

  • Page 3: Safety Instructions

    1. Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 off the mains power immediately. DO NOT operate in dirty or dusty environment, do clean fixtures regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid power wires together twist other cables. ...

  • Page 5: Technical Specifications

    2. Technical Specifications Power Voltage: AC 100~240V, 50/60Hz Power Consumption: 240W Light Source: 6x40W RGBW LED Zoom Range: 3.5°~38° Movement: Tilt: 220° Dimmer/Shutter: 0~100% smooth dimming, adjustable strobe speeds Control: DMX Channel: 32/14 Channels Control Mode: DMX512, RDM, Art-Net Firmware Upgrade: Update via DMX link Construction: Display: OLED display Data In/Out: 3-pin or 5-pin XLR, RJ-45...

  • Page 6: How To Set The Unit

    500mm 113mm 3. How To Set The Unit 3.1 Control Panel...
  • Page 7 1. Button: MENU To select the programming functions To go backward in the selected functions DOWN To go forward in the selected functions ENTER To confirm the selected functions 2. Display: To show the various menus and the selected functions 3.

  • Page 8: Main Functions

    10. FUSE(T 5A): Protect the unit from damage of the overcurrent 11. PUSH BUTTON 1 (Head Push Button): Before the fixture is powered on, please push the button to “UNLOCK” of the head 12. PUSH BOTTON 2: When the fixture is online, please push the button to “LOCK” 3.2 Main Functions Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until the required function is shown on the monitor.
  • Page 10 DMX Setting To select DMX Setting, press the ENTER button to confirm, use the UP/DOWN button to select ArtNet Setup, DMX Address, Channel Mode or RDM Device ID. ArtNet Setup To select ArtNet Setup, press the ENTER button to confirm. Use the UP/DOWN button to select Ethernet IP Setup or ArtNet Port Setup, press the ENTER button to store.
  • Page 11 Fixture Setting To select Fixture Setting, press the ENTER button to confirm. Use the DOWN/UP buttons to select Artnet to DMX, Light Mode, Dimmer Curve, Dimmer Speed, Invert Tilt, Tilt Feedback, Bl.O. Tilt Moving, Fan Mode, Invert Pixel Order or Tilt Speed Mode. Artnet to DMX To select Artnet to DMX, press the ENTER button to confirm.
  • Page 12 Dimmer Speed To select Dimmer Speed, press the ENTER button to confirm. Use the UP/DOWN button to select Smooth or Fast, press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode. Invert Tilt To select Invert Tilt, press the ENTER button to confirm.
  • Page 13 Auto Test To select Auto Test, press the ENTER button to confirm and the unit will run a self-test. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode. Manual Mode To select Manual Mode, press the ENTER button to confirm.
  • Page 14 Language To select Language, press the ENTER button to confirm. Use the UP/DOWN button to select English or Chinese, press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode. Fixture information To select Fixture information, press the ENTER button to confirm, use the UP/DOWN button to select LED Temperature, Fixture Usage Time, LED Light Time, Fan Speed, USB Upgrade File, Error...
  • Page 15 Error Logs Select Error Logs, press the ENTER button to confirm. Use the UP/DOWN button to select Fixture Errors or Reset Error Log, press the ENTER button to store. Select Reset Error Log, press the ENTER button to confirm. Use the UP/DOWN button to select No or Yes, press the ENTER button to store. Select Yes, press the ENTER button to confirm.

  • Page 16: Home Position Adjustment

    Factory Setting To select Factory Setting, press the ENTER button to confirm, use the UP/DOWN button to select No or Yes, press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode. RDM FUNCTIONS Select the MANUFACTURER menu to display the manufacturer of the fixture.
  • Page 17 Motor Offset Enter offset mode, Select Motor Offset, press the ENTER button to confirm, use the UP/DOWN button to select Tilt Offset or Zoom Offset, press the ENTER button to store. Press the MENU button to exit. Tilt Offset Enter offset mode, Select Tilt Offset, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to store.

  • Page 18: Control By Universal Dmx Controller

    4. Control By Universal DMX Controller 4.1 DMX512 Connection 1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.

  • Page 19: Address Setting

    4.2 Address Setting If you use a universal DMX controller to control the units, you have to set DMX address from 1 to 512 so that the units can receive DMX signal. Press the MENU button to enter menu mode, select DMX Settings, press the ENTER button to confirm, use the UP/DOWN button to select DMX Address, press the ENTER button to confirm, the present address will blinking the display, use the UP/DOWN button to adjust the address from 001 to 512, press the ENTER button to store.
  • Page 20 000-255 38°3.5° Dimmer 000-255 0%100% 000-255 Dimmer Fine Strobe 000-031 Shutter closed 032-063 shutter open 064-095 Strobe effect fast to slow 096-127 shutter open 128-159 Pulse-effect in sequences 160-191 shutter open 192-223 Random strobe effect slow to fast 224-255 shutter open LED1 RED 000-255 0%100%...
  • Page 21 LED4 BLUE 000-255 0%100% LED4 WHITE 000-255 0%100% LED5 RED 000-255 0%100% LED5 GREEN 000-255 0%100% LED5 BLUE 000-255 0%100% LED5 WHITE 000-255 0%100% LED6 RED 000-255 0%100% LED6 GREEN 000-255 0%100% LED6 BLUE 000-255 0%100% LED6 WHITE 000-255 0%100% Special Function 000-060 No function...
  • Page 22 000-255 Dimmer Fine Strobe 000-031 Shutter closed 032-063 shutter open 064-095 Strobe effect fast to slow 096-127 shutter open 128-159 Pulse-effect in sequences 160-191 shutter open 192-223 Random strobe effect slow to fast 224-255 shutter open Macro 000-008 No function 009-038 macro1 039-068...

  • Page 23: Troubleshooting

    5. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connect power and main fuse. 2.
  • Page 24 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 2014/30/EU. EN 55032: 2015; EN 61000-3-2: 2014; EN 61000-3-3: 2013; EN 55103-2: 2009. &...

This manual is also suitable for:

Dotline350
