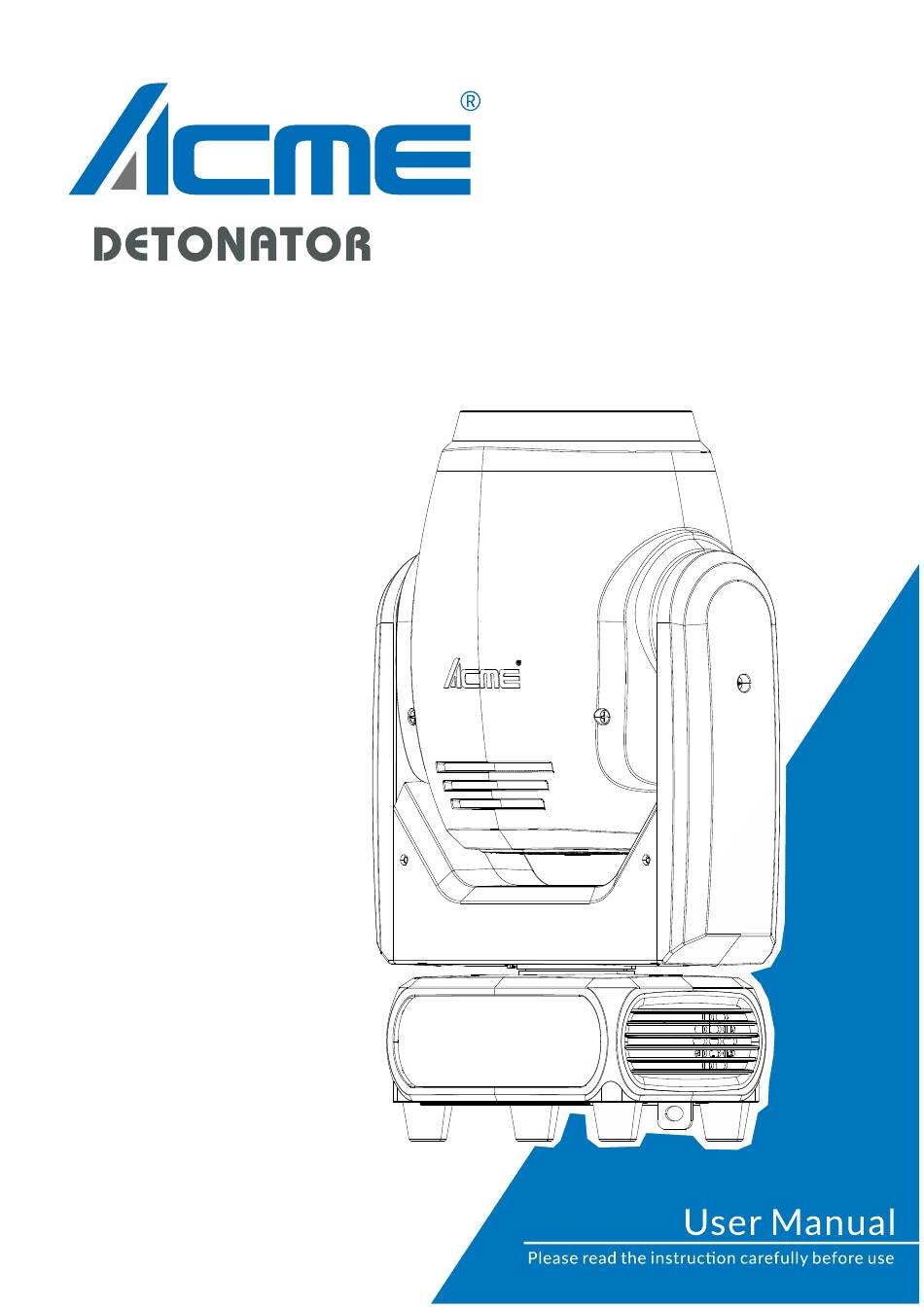

ACME DETONATOR User Manual
  1. Manuals
  2. Brands
  3. ACME Manuals
  4. Lighting Equipment
  5. DETONATOR
  6. User manual

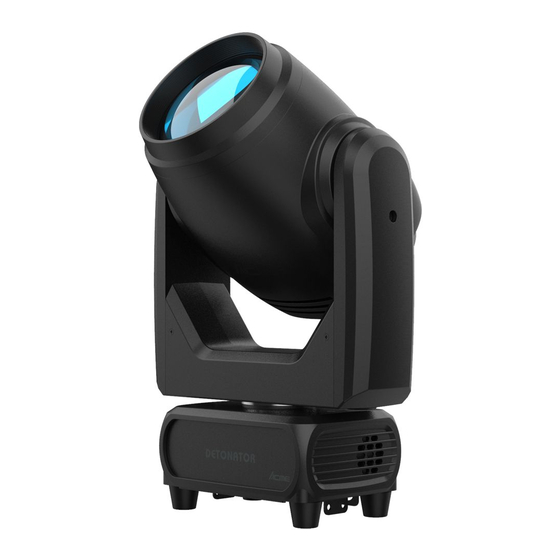

ACME DETONATOR User Manual

Hide thumbs Also See for DETONATOR:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DETONATOR and is the answer not in the manual?

Questions and answers

Related Manuals for ACME DETONATOR

Summary of Contents for ACME DETONATOR

  • Page 2: Table Of Contents

    CONTENTS 01/ Safety Information ....................2 02/ Technical Specifications ..................5 03/ Overview ........................7 04/ Connecting Power and Data ................7 4.1 Connecting Power ................... 7 4.2 Connecting Data....................8 05/ Fixture Installation ....................9 06/ Effect Wheels ......................10 07/ Configuring the Device for DMX Control ............

  • Page 3: 01/ Safety Information

    01/ Safety Information Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 off the mains power immediately. DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid entanglement of the power cord with other wires. ...
  • Page 5 External sources of light beams from direct sunlight or any other strong light source,  which penetrate the front lens of lighting fixtures, can cause severe internal damage. DO NOT expose the fixture front lens to light beams from direct sunlight or any other strong light source from any angle while unpacking, installation, use, and extended idle times outdoors.

  • Page 6: 02/ Technical Specifications

    02/ Technical Specifications AC Power 180-240Vac; 50/60Hz Max. Power 120W Consumption Light Source T0-90-V2-80H Color Temperature 8000K Beam Angle 2° Color Wheel 10 colors + open Gobo Wheel Static Gobo Wheel 10 gobos + open 540° Tilt 270° Movement 16 bit movement resolution Automatic pan/tilt repositioning DMX Channels DMX512...
  • Page 7 Power Cable Included Items Two brackets User Manual (this document) Dimensions 286x166x434mm 11.3"x6.5"x17.1" Weight 8.2 kg 18.1 lbs Photometric Diagram: - 6 -...

  • Page 8: 03/ Overview

    03/ Overview For DMX512 link, use a network cable to link the next units to 1. DMX OUT output DMX signal For DMX512 link, use a network cable to link the unit and DMX 2. DMX IN controller to input DMX signal 3.

  • Page 9: Connecting Data

    4.2 Connecting Data The fixture is equipped with RJ45 sockets for DMX input and output. Use a high-quality DMX cable designed for RS-485 and RJ45 connectors in order to connect the controller with the fixture or one fixture with another. Building a serial DMX chain: Connect the DMX data output from the controller to the fixture’s data input socket.

  • Page 10: 05/ Fixture Installation

    05/ Fixture Installation  DO install and operate by qualified operator. Fixture(s) should be installed in areas outside walking paths, seating areas, or away from areas were unauthorized personnel might reach the fixture by hand. NEVER stand directly below the fixture(s) when rigging, removing or servicing.

  • Page 11: 06/ Effect Wheels

    Hanging the fixture: 06/ Effect Wheels DANGER! Replace the color wheel / gobo wheel with the device switched off only. Unplug from mains before replacing the color wheel / gobo wheel! - 10 -...

  • Page 12: 07/ Configuring The Device For Dmx Control

    07/ Configuring the Device for DMX Control 7.1 Address Setting All fixtures should be given a DMX starting address when operating with a DMX controller, in order to ensure that the correct fixture responds to the correct control signal. Incorrect settings will result in unpredictable responses from the lighting controller.

  • Page 13: Dmx Protocol

    7.2 DMX Protocol CHANNEL VALUE FUNCTION 16ch 000-255 0°540° 000-255 PAN FINE TILT 000-255 0°270° 000-255 TILT FINE PAN/TILT SPEED 000-255 Fast to Slow COLOR WHEEL 000-007 Open 008-012 Color 1 013-017 Color 2 018-022 Color 3 023-027 Color 4 028-032 Color 5 033-037...
  • Page 14 Color 9 + Color 10 Color 10 Color 10 + Open 086-127 Open 128-189 Counter-Clockwise Rotation, Fast to Slow 190-193 Stop 194-255 Clockwise Rotation, Slow to Fast GOBO WHEEL 1 000-007 Open 008-014 Gobo 1 015-021 Gobo 2 022-028 Gobo 3 029-035 Gobo 4 036-042...
  • Page 15 STROBE 000-007 Close 008-015 Open 016-131 Strobe from Slow to Fast 132-139 Open 140-181 Fast Open Slow Close from Slow to Fast 182-189 Open 190-231 Slow Open Fast Close from Slow to Fast 232-239 Sound-activated Strobe 240-247 Random Strobe from Slow to Fast 248-255 Open DIMMER...
  • Page 16 RDM functions: Certain menus of the device and functions can be called up via the RDM protocol. The parameter IDs are implemented as follows for different commands: Command Command Command Parameter ID ‘Discovery’ ‘Set’ ‘Get’ DISC_UNIQUE_BRANCH √ DISC_MUTE √ DISC_UN_MUTE √...
  • Page 17 Focus -128~127 Reset Device Model ID (Displays the device operating hours) Device Hours (Displays the LED operating hours) Lamp Hours MF_Label ACME DEV_Label BEAM 200 III Ver_Label (Displays the device temperature) Sensor Pan Inverse Pan Tilt Menu Tilt Inverse Pan Tilt Feedback...
  • Page 18 MAIN MENU SUBMENU CHOICES/VALUES Blackout Hold No DMX Status Manual Show Primary Prim/Sec Secondary 1 Secondary 2 Show Menu Show 0 Show 1 Show Show 2 Show 3 Show 4 Sound On Off Sound Sensitivity 0-100 (Set the password to reset the device to factory defaults) Factory Defaults - 17 -...

  • Page 19: 08/ Error Information

    08/ Error Information Error codes are shown continuously in the display when the fixture fails and they will not disappear until the fixture is repaired. CPU-B Error Check whether the 485 (DATA) leads on the PCB board are installed in place or disconnected.
  • Page 20 Tilt Reset Error Check whether the position of the tilt where the magnet is installed falls off or is damaged. Check whether there are obstacles in the tilt operating range. Check whether the Hall element on the tilt is damaged. Check whether the lead connecting the Hall element on the tilt and the PCB board is in poor contact or disconnected.
  • Page 21 Color Error Check whether the position of the color wheel where the magnet is installed falls off or is damaged. Check whether there are obstacles in the color wheel operating range. Check whether the Hall element on the color wheel is damaged. Check whether the lead connecting the Hall element on the color wheel and the PCB board is in poor contact or disconnected.
  • Page 22 Prism Error Check whether the position of the prism where the magnet is installed falls off or is damaged. Check whether there are obstacles in the prism operating range. Check whether the Hall element on the prism is damaged. Check whether the lead connecting the Hall element on the prism and the PCB board is in poor contact or disconnected.
  • Page 23 Focus Error Check whether the position of the focus where the magnet is installed falls off or is damaged. Check whether there are obstacles in the focus operating range. Check whether the Hall element on the focus is damaged. Check whether the lead connecting the Hall element on the focus and the PCB board is in poor contact or disconnected.
  • Page 24 LED Timeout Use LED Too Hot Off When the fixture temperature reaches 85℃, it will automatically turn off to protect the fixture. Position of cooling fans: Cooling Fans Part Number Position Head Fan 1 3014001356 DC 12V 1.9W Head - B Base Fan 1 3014001195 DC 12V...

  • Page 25: 09/ Troubleshooting

    09/ Troubleshooting Problem Potential cause(s) Remedies Confirm that the power is switched No power to the fixture. Fixture does not respond on and cables are plugged in. or appears to be off. No output from PSU. Replace the PSU. Fixture suddenly turned Check the power supply, switches Power was turned off.

  • Page 26: 10/ Fixture Cleaning

    10/ Fixture Cleaning Regular cleaning is very important for fixture life and performance. Buildup of dust, dirt, smoke particles, fog fluid residues, etc. degrades the fixture’s light output and cooling ability. Cleaning schedules for lighting fixtures vary greatly depending on the operating environment. It is therefore impossible to specify precise cleaning intervals for the fixture.
