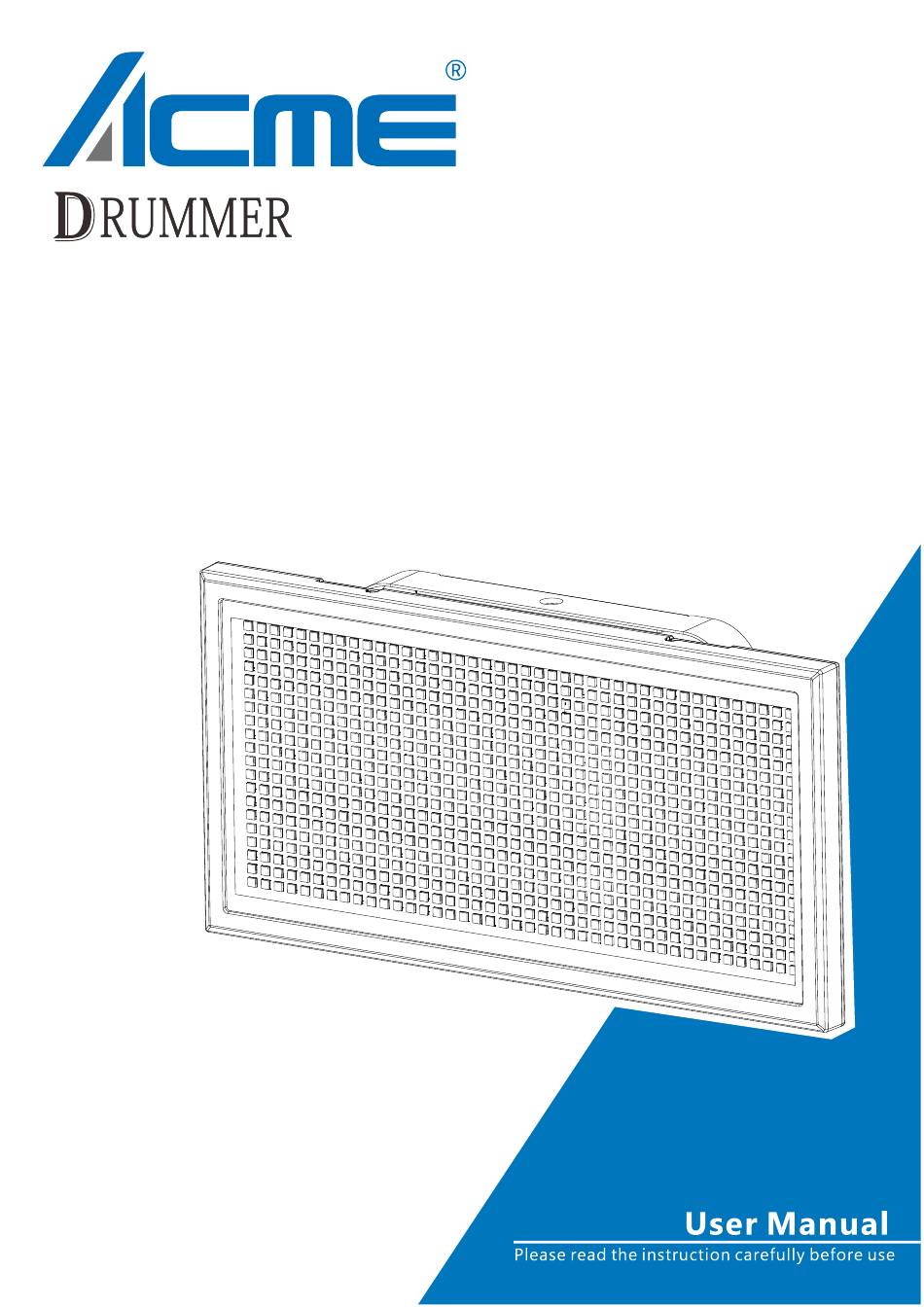

ACME DRUMMER User Manual

Hide thumbs Also See for DRUMMER:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the DRUMMER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ACME DRUMMER

Summary of Contents for ACME DRUMMER

  • Page 2: Table Of Contents

    CONTENTS 1. Safety Instructions ..................2 2. Technical Specifications ................. 4 3. Control Panel ....................6 4. Fixture Installation ..................7 5. Control By Universal DMX Controller ............13 5.1 DMX512 Connection ................13 5.2 Address Setting ..................14 5.3 DMX512 Configuration ................14 6.

  • Page 3: Safety Instructions

    1. Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4  DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid entanglement of the power cord with other wires. ...

  • Page 5: Technical Specifications

    2. Technical Specifications Power Voltage: 180-240V~ 50/60Hz Power Consumption: 170W Light Source: 840x0.2W RGB LED Beam Angle: 87.4° Dimmer/Shutter: 0-100% smooth dimming; High output strobe effect Control: DMX Channel: 5/12/23/41/72 Channels Control Mode: DMX512, RDM, Primary/Secondary Mode, Sound Mode Firmware Upgrade via DMX link Construction: Data In/Out: RJ45 in/out Power In/Out: IEC in...
  • Page 6 Dimension/Weight: 410x67x210mm, 2kgs 16.1"x2.6"x8.3"in, 4.4lbs Photometric Diagram:...

  • Page 7: Control Panel

    3. Control Panel 1. DMX IN: For DMX512 link, use a network cable to link the unit and the DMX controller 2. DMX OUT: For DMX512 link, use a network cable to link the next units 3. MIC: Picks up the beat of the music in sound active mode 4.

  • Page 8: Fixture Installation

    4. Fixture Installation DO install and operate by qualified operator. Fixture(s) should be installed in areas outside walking paths, seating areas, or away from areas were unauthorized personnel might reach the fixture by hand. NEVER stand directly below the fixture(s) when rigging, removing or servicing. Always ensure that the unit is firmly fixed to avoid vibration and slipping off during operation.
  • Page 9 Fix the fixture on a flat level surface (such as the ceiling or a wall): Installation steps: a hole needs to be made in the ceiling/wall 1. Drill a rectangular hole with a length of 265mm and a width of 170mm and four screw holes in the ceiling or wall.
  • Page 10 4. Fix the mounting bracket on the ceiling or wall with four screws. 5. Connect the fixture and the mounting bracket with a safety cable. 6. Put the back of the fixture into the mounting bracket and make the fixture flush with the mounting bracket.
  • Page 11 7. Turn the two lock catch of the mounting bracket by 90 degrees to lock the fixture. Installation steps: no need to make a hole in the ceiling/wall 1. Drill four screw holes in the ceiling or wall. 2. Loosen the knobs on both sides of the fixture and remove the hanging bracket.
  • Page 12 3. Turn the two lock catch of the mounting bracket by 90 degrees. 4. Fix the mounting bracket on the ceiling or wall with four screws.
  • Page 13 5. Connect the fixture and the mounting bracket with a safety cable. 6. Put the back of the fixture into the mounting bracket and make the fixture flush with the mounting bracket. 7. Turn the two lock catch of the mounting bracket by 90 degrees to lock the fixture.

  • Page 14: Control By Universal Dmx Controller

    5. Control By Universal DMX Controller 5.1 DMX512 Connection 1. To avoid erratic behavior, make sure that the output of the last DMX device in the chain is terminated by a resistor (120-ohm 1/4W) which is connected between RJ45 PIN 1 (XLR PIN 3) and RJ45 PIN 2 (XLR PIN 2) of a RJ45 connector (a male XLR connector).

  • Page 15: Address Setting

    5.2 Address Setting If you use a universal DMX controller to control the units, you have to set DMX address from 1 to 512 so that the units can receive DMX signal. Please refer to the following diagram to address your DMX512 channel for the first 4 units. Unit 1 Unit 2 Unit 3...
  • Page 16 12 Channels (Mode 2): CHANNEL VALUE FUNCTION 000-255 0%100% GREEN 000-255 0%100% BLUE 000-255 0%100% COLOR MACRO 000-009 Null 010-017 Color 1 018-024 Color 2 025-032 Color 3 033-039 Color 4 040-047 Color 5 048-054 Color 6 055-061 Color 7 062-069 Color 8 070-076...
  • Page 17 000-255 DIMMER FINE 000-255 STROBE DURATION STROBE RATE 000-006 Blackout 007-255 Strobe from Slow to Fast STROBE 000-005 Null 006-047 Ramp up 048-089 Ramp down 090-131 Ramp up-down 132-173 Lightning 174-215 Random 216-255 Sound Strobe MACRO 000-003 Null 004-012 Macro 1 013-021 Macro 2 022-030...
  • Page 18 128-255 Inversion, Slow to Fast FUNCTION 000-049 Null 050-059 Dimmer Curve: Linear 060-069 Dimmer Curve: Square Law 070-079 Dimmer Curve: Inverse Square Law 080-089 Dimmer Curve: S Curve 090-099 Null 100-109 Dimmer Speed: Fast 110-119 Dimmer Speed: Smooth 120-255 Null 23 Channels (Mode 3): CHANNEL VALUE...
  • Page 19 000-255 0%100% BLUE 5 000-255 0%100% RED 6 000-255 0%100% GREEN 6 000-255 0%100% BLUE 6 000-255 0%100% DIMMER 000-255 0%100% 000-255 DIMMER FINE 000-255 STROBE DURATION STROBE RATE 000-006 Blackout 007-255 Strobe from Slow to Fast STROBE 000-005 Null 006-047 Ramp up 048-089...
  • Page 20 000-255 0%100% GREEN 3 000-255 0%100% BLUE 3 000-255 0%100% RED 4 000-255 0%100% GREEN 4 000-255 0%100% BLUE 4 000-255 0%100% RED 5 000-255 0%100% GREEN 5 000-255 0%100% BLUE 5 000-255 0%100% RED 6 000-255 0%100% GREEN 6 000-255 0%100% BLUE 6...
  • Page 21 GREEN 10 000-255 0%100% BLUE 10 000-255 0%100% RED 11 000-255 0%100% GREEN 11 000-255 0%100% BLUE 11 000-255 0%100% RED 12 000-255 0%100% GREEN 12 000-255 0%100% BLUE 12 000-255 0%100% DIMMER 000-255 0%100% 000-255 DIMMER FINE 000-255 STROBE DURATION STROBE RATE 000-006 Blackout...
  • Page 22 72 Channels (Mode 5): CHANNEL VALUE FUNCTION RED 1 000-255 0%100% GREEN 1 000-255 0%100% BLUE 1 000-255 0%100% RED 2 000-255 0%100% GREEN 2 000-255 0%100% BLUE 2 000-255 0%100% RED 3 000-255 0%100% GREEN 3 000-255 0%100% BLUE 3 000-255 0%100% RED 4...
  • Page 23 BLUE 7 000-255 0%100% RED 8 000-255 0%100% GREEN 8 000-255 0%100% BLUE 8 000-255 0%100% RED 9 000-255 0%100% GREEN 9 000-255 0%100% BLUE 9 000-255 0%100% RED 10 000-255 0%100% GREEN 10 000-255 0%100% BLUE 10 000-255 0%100% RED 11 000-255 0%100%...
  • Page 24 RED 15 000-255 0%100% GREEN 15 000-255 0%100% BLUE 15 000-255 0%100% RED 16 000-255 0%100% GREEN 16 000-255 0%100% BLUE 16 000-255 0%100% RED 17 000-255 0%100% GREEN 17 000-255 0%100% BLUE 17 000-255 0%100% RED 18 000-255 0%100% GREEN 18 000-255 0%100%...
  • Page 25 GREEN 22 000-255 0%100% BLUE 22 000-255 0%100% RED 23 000-255 0%100% GREEN 23 000-255 0%100% BLUE 23 000-255 0%100% RED 24 000-255 0%100% GREEN 24 000-255 0%100% BLUE 24 000-255 0%100%...
  • Page 26 LED PIXEL ZONES:...

  • Page 27: Rdm Functions

    RDM FUNCTIONS Select the MANUFACTURER menu to display the manufacturer of the fixture. Select the SOFTWARE VERSION menu and the program version number of the fixture will be displayed. Select the DMX START ADDRESS menu to change the DMX512 address (001-512). Select the DEVICE MODEL DESCRIPTION menu to display the model of the fixture.

  • Page 28: Troubleshooting

    7. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for troubleshooting: A. The unit does not work and no light 1. Check the connected power. 2. Measure the voltage. 3. Check the power indicator to see whether it can be lit up or not. B.
  • Page 32 Innovation, Quality, Performance...
