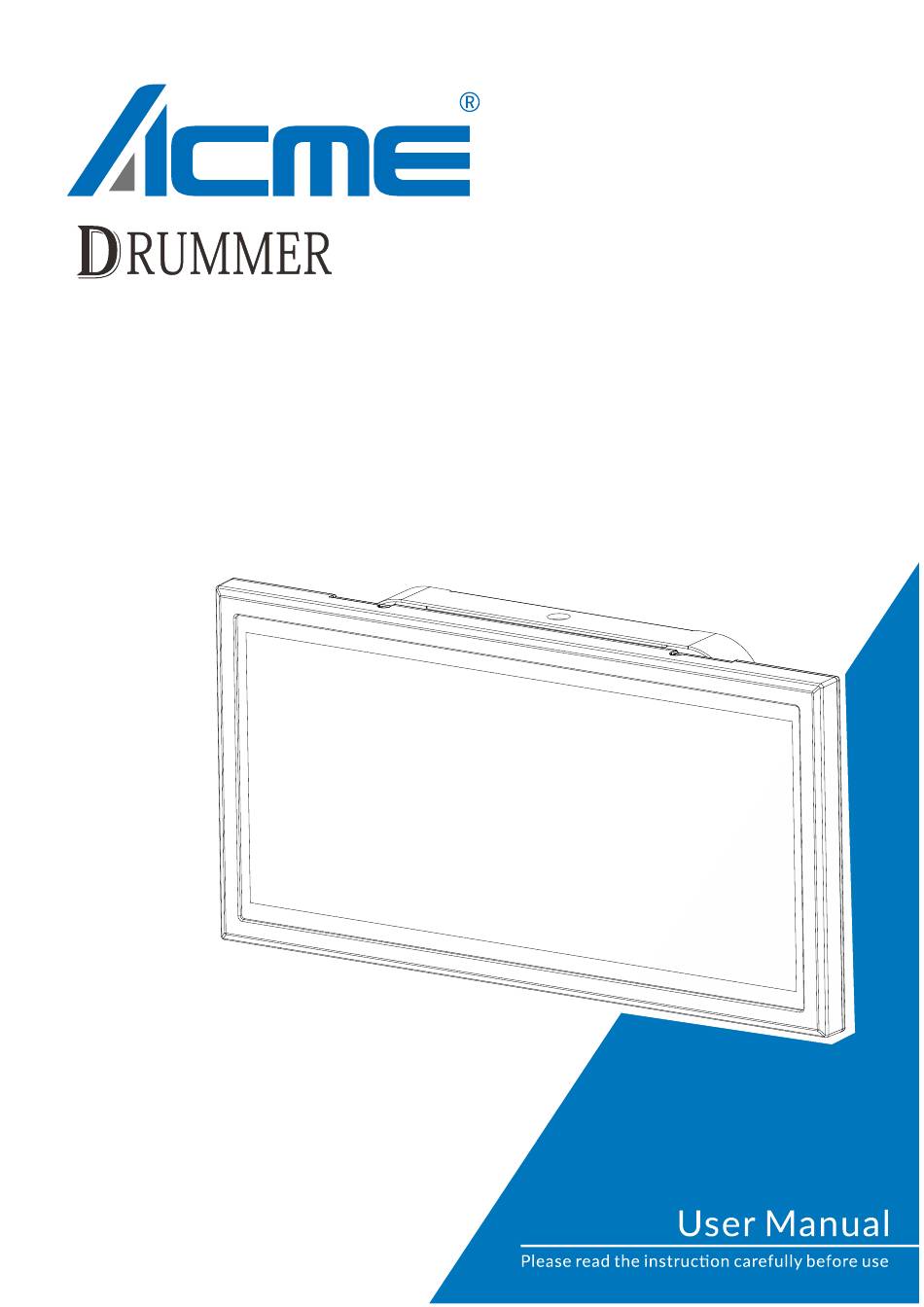

ACME DRUMMER User Manual

Hide thumbs Also See for DRUMMER:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DRUMMER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ACME DRUMMER

Summary of Contents for ACME DRUMMER

  • Page 2: Table Of Contents

    CONTENTS 01/ Safety Information ....................2 02/ Technical Specifications ..................4 03/ Overview ........................6 04/ Connecting Power and Data ................7 4.1 Connecting Power ................... 7 4.2 Connecting Data....................8 05/ Fixture Installation ....................9 06/ Operation ....................... 16 6.1 Control Menu ....................

  • Page 3: 01/ Safety Information

    01/ Safety Information Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 off the mains power immediately. DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid entanglement of the power cord with other wires. ...

  • Page 5: 02/ Technical Specifications

    02/ Technical Specifications AC Power 180-240Vac; 50/60Hz Max. Power 170W Consumption Light Source 840x0.2W RGB LED Beam Angle 87° DMX Channels 5/12/23/41/72 DMX512 Protocols Control and DMX Control Programming Operational Modes Sound Active Show Mode Firmware Update via DMX Display LCD display DMX and RDM RJ45 Connectors in/out...
  • Page 6 Photometric Diagram: - 5 -...

  • Page 7: 03/ Overview

    03/ Overview For DMX512 link, use a network cable to link the unit and DMX 1. DMX IN controller to input DMX signal For DMX512 link, use a network cable to link the next units to 2. DMX OUT output DMX signal 3.

  • Page 8: 04/ Connecting Power And Data

    04/ Connecting Power and Data 4.1 Connecting Power This fixture can operate on any 180-240V~ 50/60Hz AC mains power supply. The maximum power consumption is 170W. The fixture must be grounded/earthed and able to be isolated from AC power. The AC power supply must incorporate a fuse or circuit breaker for fault protection.

  • Page 9: Connecting Data

    4.2 Connecting Data The fixture is equipped with RJ45 sockets for DMX input and output. Use a high-quality DMX cable designed for RS-485 and RJ45 connectors in order to connect the controller with the fixture or one fixture with another. Building a serial DMX chain: Connect the DMX data output from the controller to the fixture’s data input socket.

  • Page 10: 05/ Fixture Installation

    05/ Fixture Installation  DO install and operate by qualified operator. Fixture(s) should be installed in areas outside walking paths, seating areas, or away from areas were unauthorized personnel might reach the fixture by hand. NEVER stand directly below the fixture(s) when rigging, removing or servicing.
  • Page 11 Hanging the fixture: Fix the fixture on a flat surface (such as the ceiling or a wall): Installation steps: a hole needs to be made in the ceiling/wall 1. Drill a rectangular hole with a length of 265mm and a width of 170mm and four screw holes in the ceiling or wall.
  • Page 12 3. Fix the mounting bracket on the ceiling or wall with four screws. 4. Connect the fixture and the mounting bracket with a safety cable. - 11 -...
  • Page 13 5. Put the back of the fixture into the mounting bracket and make the fixture flush with the mounting bracket. 6. Turn the two lock catch of the mounting bracket by 90 degrees to lock the fixture. - 12 -...
  • Page 14 Installation steps: no need to make a hole in the ceiling/wall 1. Drill four screw holes in the ceiling or wall. 2. Turn the two lock catch of the mounting bracket by 90 degrees. - 13 -...
  • Page 15 3. Fix the mounting bracket on the ceiling or wall with four screws. 4. Connect the fixture and the mounting bracket with a safety cable. - 14 -...
  • Page 16 5. Put the back of the fixture into the mounting bracket and make the fixture flush with the mounting bracket. 6. Turn the two lock catch of the mounting bracket by 90 degrees to lock the fixture. - 15 -...

  • Page 17: 06/ Operation

    06/ Operation 6.1 Control Menu  To access the control menus, press the [MENU] button.  Navigate the menu structure, using the [ENTER], [ UP] and [ DOWN] buttons.  To select a menu option or to confirm a selection, press the [ENTER] button. ...
  • Page 18 MAIN MENU SUBMENU CHOICES/VALUES Show 0 Show 1 Show Mode Show 2 Show 3 Sound State Sound Sense 0-100 Display Invert °C Display Settings Temperature Unit °F English Language Chinese Single Auto Test Cycle Mode 1 Mode 2 Clear No/Yes Clear No/Yes 0-255...
  • Page 19 DMX Settings Enter the control menu and select DMX Settings, press ENTER. Use the UP/DOWN button to select DMX Address, Channel Mode, No DMX Status or View DMX Value. DMX Address Select DMX Address, press ENTER. Use UP/DOWN button to select an address, confirm your selection with ENTER.
  • Page 20 View DMX Value Select View DMX Value, press ENTER. Use UP/DOWN button to select the desired DMX channel, for which the value is to be displayed. To exit the menu, press MENU, or wait 30 seconds. Fixture Settings Enter the control menu and select Fixture Settings, press ENTER. Use the UP/DOWN button to select Dimmer Curve, Dimmer Speed, White Balance, Pri.
  • Page 21 White Balance Select White Balance, press ENTER. Use UP/DOWN button to select Red, Green or Blue, confirm your selection with ENTER. Use UP/DOWN button to select a value between 125 and 255, confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. Pri.
  • Page 22 Display Settings Enter the control menu and select Display Settings, press ENTER. Use the UP/DOWN button to select Display Invert, Temperature Unit or Language. Display Invert Select Display Invert, press ENTER. Use UP/DOWN button to select No (display normal) or Yes (display inverted), confirm your selection with ENTER.
  • Page 23 Manual Mode Select Manual Mode, press ENTER. Use UP/DOWN button to select the channel for which the manual test is to be performed, confirm your selection with ENTER. Use UP/DOWN button to select a value, confirm your selection with ENTER. To exit the menu, press MENU.
  • Page 24 Temperature Select Temperature, press ENTER. The device temperature is displayed. To exit the menu, press MENU, or wait 30 seconds. Firmware Version Select Firmware Version, press ENTER. The firmware version is displayed. To exit the menu, press MENU, or wait 30 seconds. RDM UID Select RDM UID, press ENTER.
  • Page 25 Special Functions Enter the control menu and select Special Functions, press ENTER. Use the UP/DOWN button to select Factory Restore. Factory Restore Select Factory Restore, press ENTER. If you wish to reset the device to the factory settings, select Yes. If you do not wish to reset anything, select No.
  • Page 26 RDM functions: Certain menus of the device and functions can be called up via the RDM protocol. The parameter IDs are implemented as follows for different commands: Command Command Command Parameter ID ‘Discovery’ ‘Set’ ‘Get’ DISC_UNIQUE_BRANCH √ DISC_MUTE √ DISC_UN_MUTE √...

  • Page 27: Home Position Adjustment

    6.2 Home Position Adjustment  To access the control menus, press the [MENU] button.  To access the offset menus, long-press the [ENTER] button.  Navigate the offset menus, using the [ENTER], [ UP] and [ DOWN] buttons.  To select a menu option or to confirm a selection, press the [ENTER] button. ...
  • Page 28 Blue Select Blue, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. Red 1 Select Red 1, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER.
  • Page 29 Green 24 Select Green 24, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. Blue 24 Select Blue 24, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER.

  • Page 30: 07/ Configuring The Device For Dmx Control

    07/ Configuring the Device for DMX Control 7.1 Address Setting All fixtures should be given a DMX starting address when operating with a DMX controller, in order to ensure that the correct fixture responds to the correct control signal. Incorrect settings will result in unpredictable responses from the lighting controller.

  • Page 31: Dmx Protocol

    7.2 DMX Protocol 5 Channels (Mode 1) / 12 Channels (Mode 2): CHANNEL VALUE FUNCTION 12ch 000-255 0%100% GREEN 000-255 0%100% BLUE 000-255 0%100% COLOR MACRO 000-009 Null 010-017 Color 1 018-024 Color 2 025-032 Color 3 033-039 Color 4 040-047 Color 5 048-054...
  • Page 32 248-255 Color 33 DIMMER 000-255 0%100% 000-255 DIMMER FINE 000-255 STROBE DURATION STROBE RATE 000-006 Blackout 007-255 Strobe from Slow to Fast STROBE 000-005 Null 006-047 Ramp up 048-089 Ramp down 090-131 Ramp up-down 132-173 Lightning 174-215 Random 216-255 Sound Strobe MACRO 000-003 Null...
  • Page 33 247-255 Macro 28 MACRO SPEED 000-127 Normal, Slow to Fast 128-255 Inversion, Slow to Fast FUNCTION (To activate following functions, stop in DMX value for at least 3 seconds.) 000-049 Null 050-059 Dimmer Curve: Linear 060-069 Dimmer Curve: Square Law 070-079 Dimmer Curve: Inverse Square Law 080-089...
  • Page 34 BLUE 4 0%100% 000-255 RED 5 000-255 0%100% GREEN 5 000-255 0%100% BLUE 5 0%100% 000-255 RED 6 000-255 0%100% GREEN 6 000-255 0%100% BLUE 6 000-255 0%100% RED 7 000-255 0%100% GREEN 7 000-255 0%100% BLUE 7 000-255 0%100% RED 8 000-255 0%100%...
  • Page 35 RED 12 0%100% 000-255 GREEN 12 000-255 0%100% BLUE 12 000-255 0%100% RED 13 0%100% 000-255 GREEN 13 000-255 0%100% BLUE 13 000-255 0%100% RED 14 000-255 0%100% GREEN 14 000-255 0%100% BLUE 14 000-255 0%100% RED 15 000-255 0%100% GREEN 15 000-255 0%100%...
  • Page 36 GREEN 19 0%100% 000-255 BLUE 19 000-255 0%100% RED 20 000-255 0%100% GREEN 20 0%100% 000-255 BLUE 20 000-255 0%100% RED 21 000-255 0%100% GREEN 21 000-255 0%100% BLUE 21 000-255 0%100% RED 22 000-255 0%100% GREEN 22 000-255 0%100% BLUE 22 000-255 0%100%...
  • Page 37 006-047 Ramp up 048-089 Ramp down 090-131 Ramp up-down 132-173 Lightning 174-215 Random 216-255 Sound Strobe LED PIXEL ZONES: - 36 -...

  • Page 38: 08/ Error Information

    08/ Error Information Error codes are shown continuously in the display when the fixture fails and they will not disappear until the fixture is repaired. Temperature Error Check whether the temperature detecting board is normal. Check whether the components of the temperature detecting board are damaged.

  • Page 39: 09/ Troubleshooting

    09/ Troubleshooting Problem Potential cause(s) Remedies Confirm that the power is switched No power to the fixture. Fixture does not respond on and cables are plugged in. or appears to be off. No output from PSU. Replace the PSU. Fixture suddenly turned Check the power supply, switches Power was turned off.

  • Page 40: 10/ Fixture Cleaning

    10/ Fixture Cleaning Regular cleaning is very important for fixture life and performance. Buildup of dust, dirt, smoke particles, fog fluid residues, etc. degrades the fixture’s light output and cooling ability. Cleaning schedules for lighting fixtures vary greatly depending on the operating environment. It is therefore impossible to specify precise cleaning intervals for the fixture.
