Network; Ip Settings - Brickcom FB-100A Series User Manual

Network

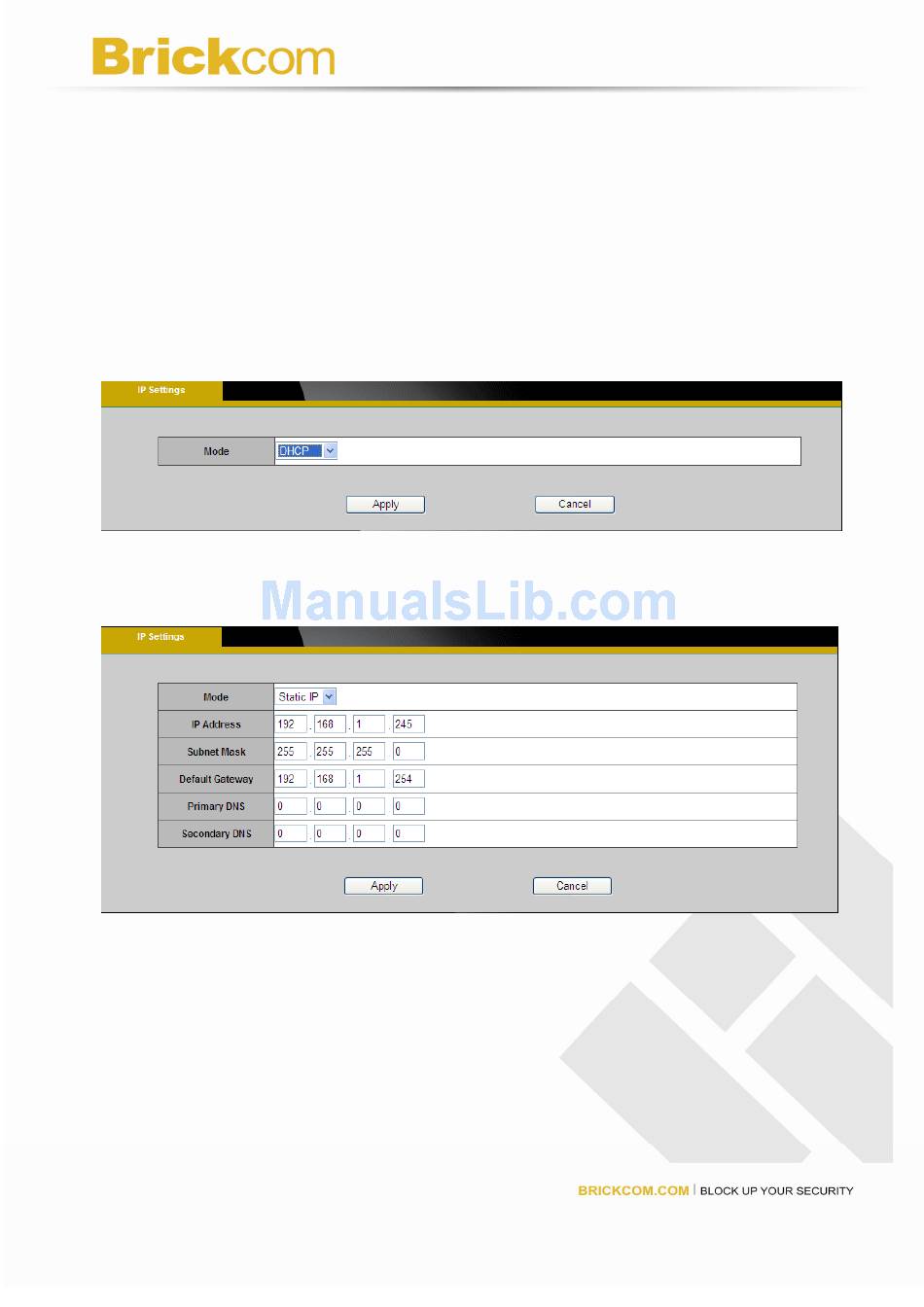

IP Settings

This section explains how to configure a wired network connection for the camera. There
are several ways to setup the camera over the Internet: (1) obtain an available dynamic IP
address assigned by a DHCP server, (2) use a static IP, or use PPPoE (Point-to-point
over Ethernet). Select the desire setup mode from the IP settings drop-down menu.
1. DHCP – If this option is selected, the camera will automatically obtain an available
dynamic IP address from the DHCP server each time it connects to the LAN.
2. Static IP - Select this option to manually assign a static IP address to the camera.
Enter the static IP address, Subnet mask, Default Gateway, Primary and
Secondary DNS provided by the ISP.
44
