Latch will not fully retract.
• Lock is not properly engaged with latch or mis-
aligned. Lock is not centered on door (See Fig. 10).
Key binds in lock.
• Lever catch not fully engaged. Lock is not centered
on door. Check for proper tailpiece and proper ori-
entation of tailpiece (See Figs. 18 - 20).

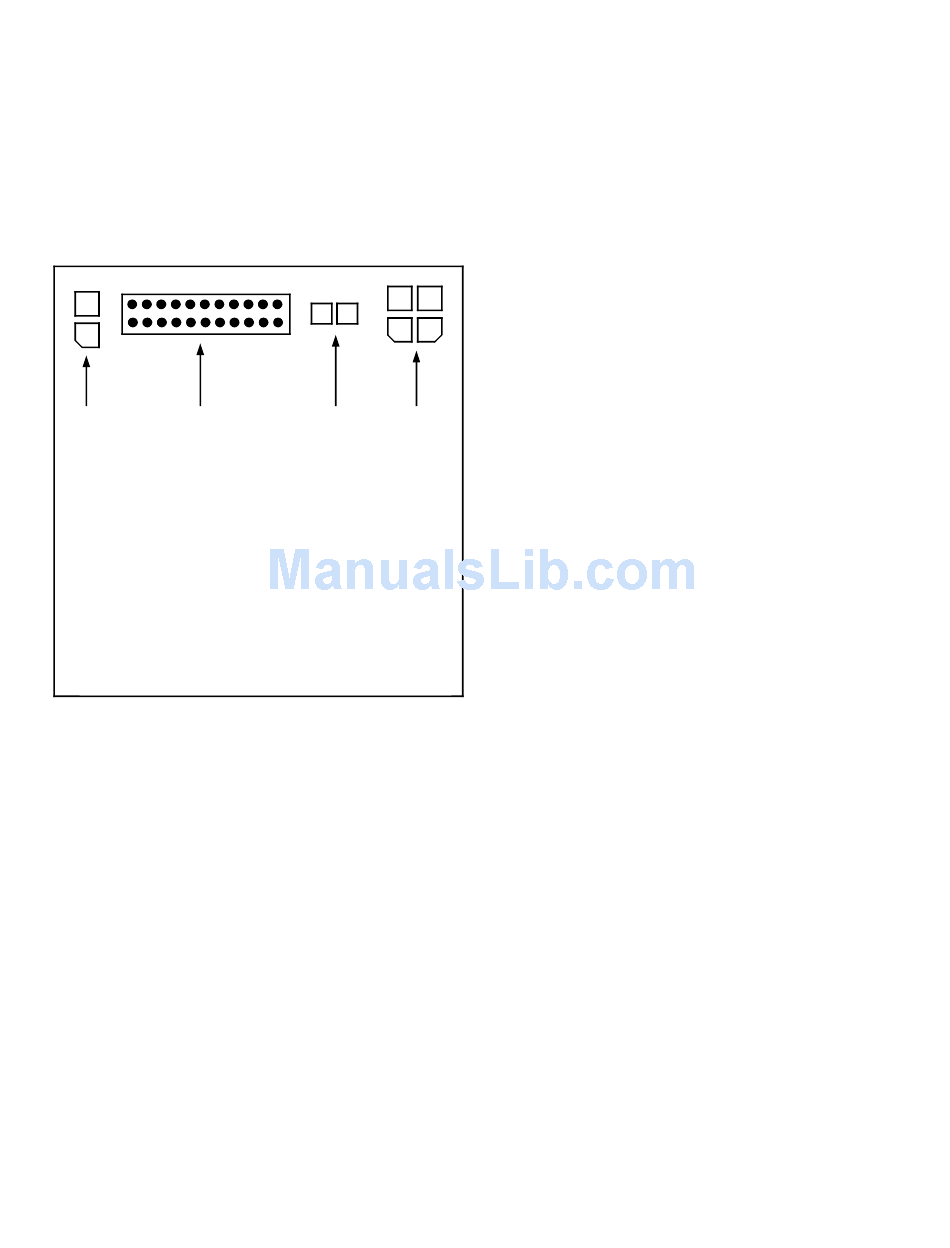

WIRE CONNECTIONS

1 2
1. Battery Wire
2. Ribbon Cable
3. Motor Wire
4. Auxiliary Power / Remote Release
Wire colors in supplied plug are as follows:
Auxiliary Power:
Red: 6-9VDC
Black: Ground
Remote Release:
Two white wires; short to activate.
FIG. 22: WIRE CONNECTIONS
3 4
