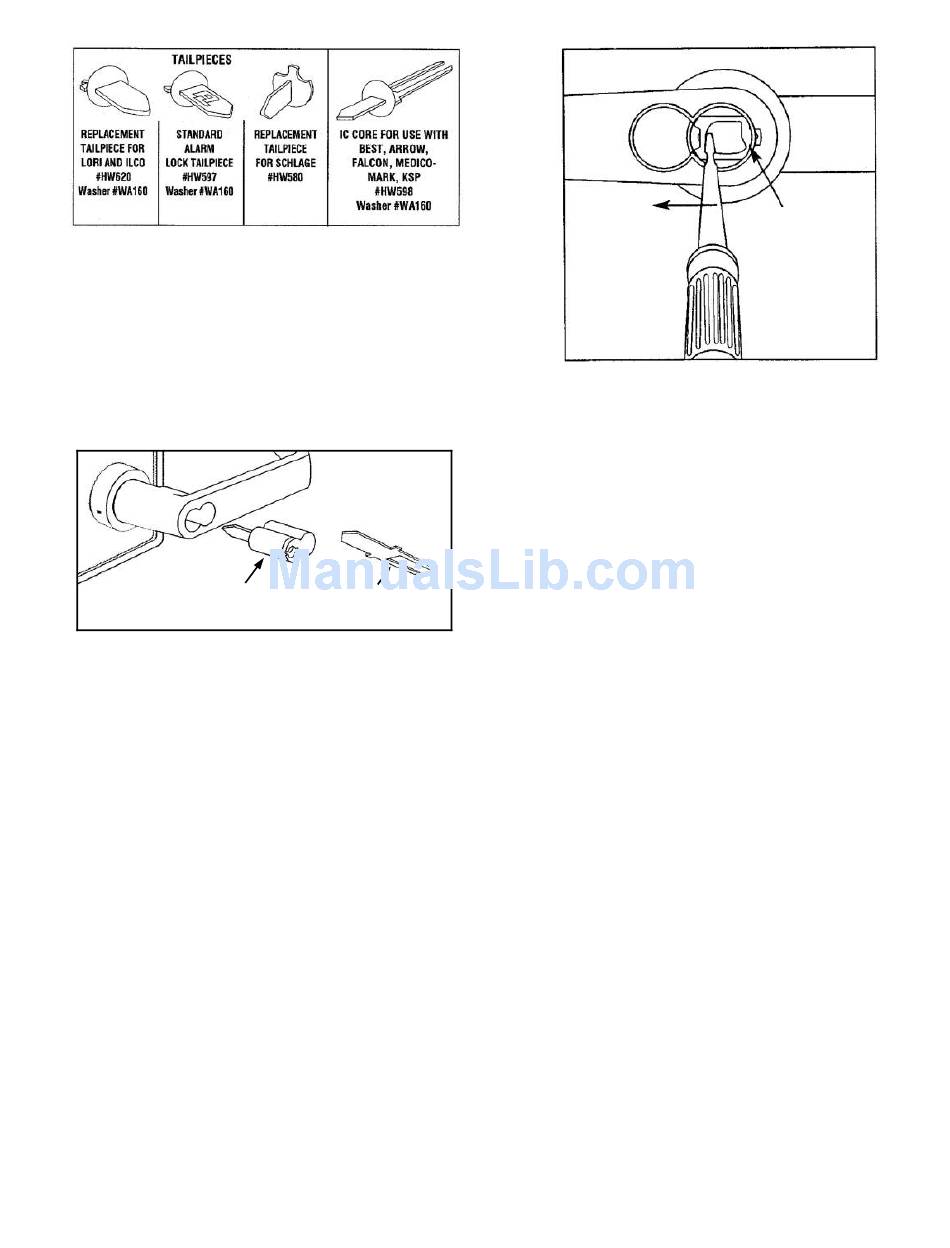

FIG. 19: STANDARD AND IC CORE TAILPIECE VARIETIES
6. Insert secondary side IC lever on spindle and push in
until it engages with the lever catch.
7. Insert control key in secondary side core and turn
clockwise. Do NOT insert tailpiece into secondary side
core.
8. With control key in secondary side core, insert core
fully into lock.
9. Turn key counterclockwise and remove key.
FIG. 20: INSTALL INTERCHANGEABLE (IC) CORE

CHANGING AN EXISTING IC CORE

1. Remove the existing primary side IC core by inserting
its control key, then turning the key clockwise and pull-
ing the key to remove the core. Set core aside.
2. Insert Alarm Lock tailpiece with washer into new core.
3. Insert new control key into new core, turn clockwise.
4. Insert new core into lever and turn key counterclock-
wise to lock in position.
5. Remove new control key.
6. Remove the existing secondary side IC core by insert-
ing its control key, then turning the key clockwise and
pulling the key to remove the core. Set core aside.
7. Do NOT insert a tailpiece. Insert new control key into
new core, turn clockwise.
8. Insert new core into lever and turn key counterclock-
wise to lock in position.
9. Remove new control key.
REMOVING THE IC CORE & LEVER
1. Remove the existing primary or secondary IC core by
inserting the control key, then turning the key clockwise
and pulling the key to remove the core.
2. Use a screwdriver to push inside of lever catch to the
side (see Fig. 21). Pull off the IC lever.
6
INTERCHANGEABLE
INTERCHANGEABLE
(IC) CORE TAILPIECE
(IC) CORE
FIG. 21: REMOVING THE IC CORE LEVER

PROGRAMMING

Your lock can be programmed (and re-programmed again
and again) to suit your changing requirements. Instead of
distributing metal keys, distribute User Codes -- and delete
them from the lock software (also called firmware) when
needed. To program your PDL5300 lock, see WI1622. To
program your DL5300, see WI1672.
DL5200, see OI345.

TROUBLESHOOTING

Electronic Trouble:
Locks works in reverse.
• Reverse motor wires in connector.
Lock will not accept new codes during programming.
• Disconnect battery connector, hold down any button
until lock resets, then reconnect and start program-
ming again.
Lock drains batteries quickly.
• Check all wires for pinching or cutting. Check for wa-
ter damage. If condition persists, consult factory.
Lock is inoperative.
• Check batteries for proper polarity and check for cut
wires.
Lock produces high pitch steady tone during lock opera-
tion.
• Low battery signal - replace batteries.
Mechanical Trouble:
Lever pulls off.
• Lever catch not fully engaged. Lock is not centered
on door. Door too thick. (See Fig. 7).
Unable to assemble primary side lever.
• Key and tailpiece orientation are incorrect (See Figs.
18 - 20).
LEVER CATCH
