5. Connect the motor wire plug (see Fig. 15 for location of
the motor wire receptacle), then connect the ribbon ca-
ble. Note: These plugs and sockets fit only one way--
do not force them. Seal the connectors with dielectric
grease (included). Upon connection of the ribbon ca-
ble, you will hear three beeps.
6. Place secondary housing over the spindle making sure
that all wires are through the housing before tightening
the two bolts. Do not allow the wires to cross or lay on
top of each other. Jiggle the connector cable to be
sure the wire opening does not pinch or cut wires be-
fore fastening bolts.
7. Secure the secondary housing to the primary housing
with the two 10-32 x 2 1/4" screws as shown in Fig. 16.

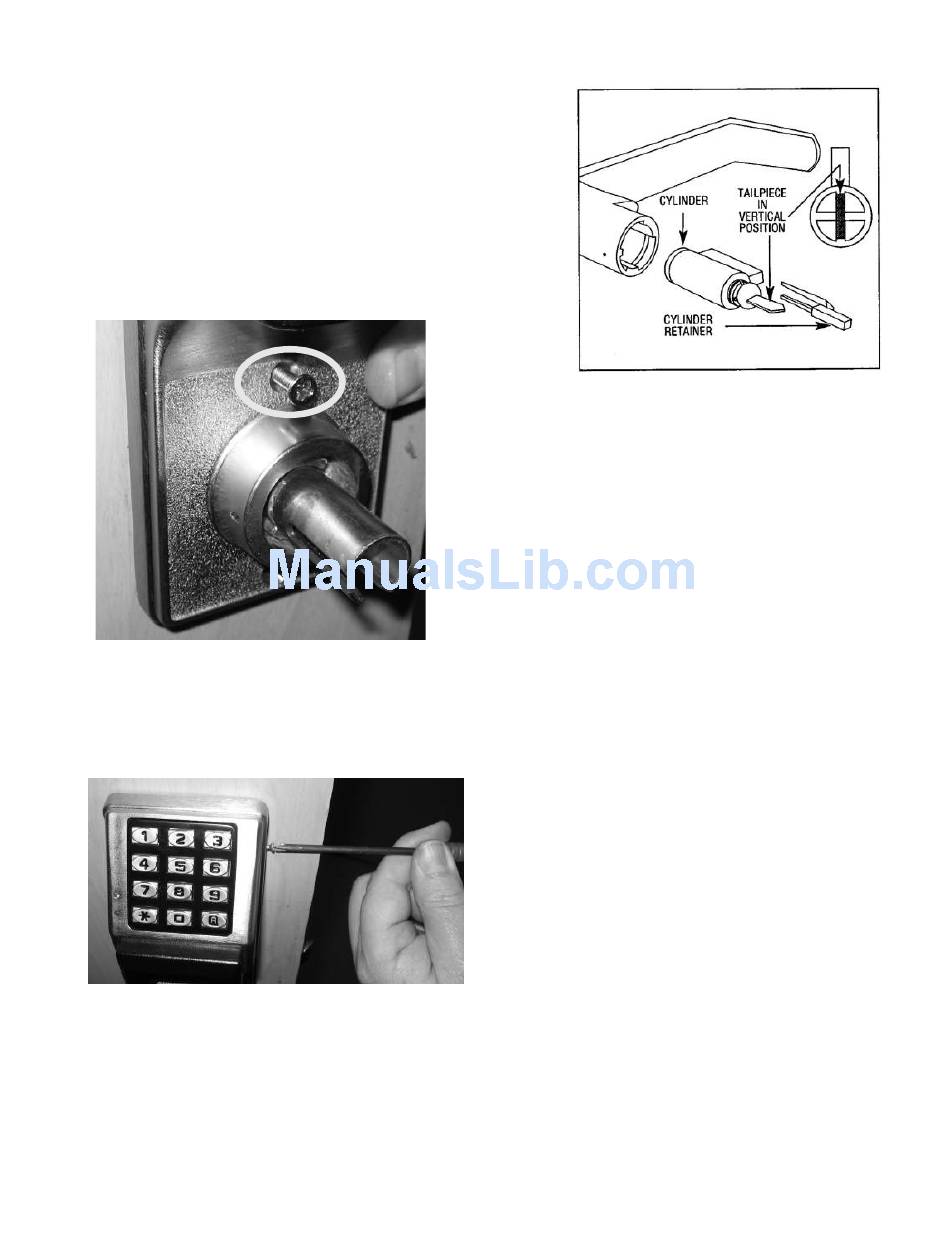

FIG. 16: SECURE THE SECONDARY TO THE PRIMARY HOUSING
8. Secure the top of the secondary housing to the secon-
dary mounting plate by inserting the two trim 4-40 flat-
head Phillips head screws. See Fig. 17.
FIG. 17: SECURE THE TOP OF THE SECONDARY HOUSING
9. ATTACHING LEVERS AND LOCKSETS
Interchangeable Core (IC) Models:
Skip to the section, "INTERCHANGEABLE (IC)
LOCKS" below.
Standard Levers and Cylinders:
Standard levers and standard lock cylinders are both
included in non-IC lock models.
a. Install the tailpiece, cylinder retainer and cylinder
into the standard lever as shown in Fig. 18.
FIG. 18: STANDARD CYLINDER-LEVER, TAILPIECE
b. Attach the primary side lever by first inserting the
metal key into the primary side lock cylinder and
turning the key 45° in either direction.
c. Insert the lever on the spindle and push the lever in
until it engages with the lever catch (it may be nec-
essary to turn the key back and forth while installing
the lever).
d. Install the secondary side lever in the same manner
as the primary.
d. Test both levers to be sure they are on securely and
operate without binding. Be sure the primary side
key retracts the latch when the key is turned in ei-
ther direction.
BE SURE TO TEST THE LEVERS AND CYLINDERS
FOR PROPER OPERATION BEFORE CLOSING
DOOR.

INTERCHANGEABLE (IC) LOCKS

Interchangeable (IC) cores require special levers. If nec-
essary, remove both the primary and secondary standard
levers (with their standard cylinders) before proceeding.
(To remove standard primary or secondary levers, insert
key into cylinder, turn key 45° in either direction, depress
the lever catch and pull off lever).
Interchangeable (IC) cores and their specialized levers are
both available from your Alarm Lock dealer.

INSTALL INTERCHANGEABLE (IC) CORES

1. Insert primary side IC lever on spindle and push in until
it engages with the lever catch.
2. Insert control key in primary side core and turn clock-
wise.
3. Insert IC core tailpiece (shown in Fig. 19 and Fig. 20)
into primary side core. Note: Tailpieces are used in
primary side cores only. Use ONLY an Alarm Lock
core tailpiece.
4. With control key in primary side core, insert core fully
into lever.
5. Turn key counterclockwise and remove control key.
AND RETAINER.
©
