Alarm Lock Trilogy DL5200 Installation Instructions Manual page 4

The latch yoke must engage the lock body housing and
the tailpiece must engage the retractor.
INSTALL SECONDARY SIDE LOCK BODY

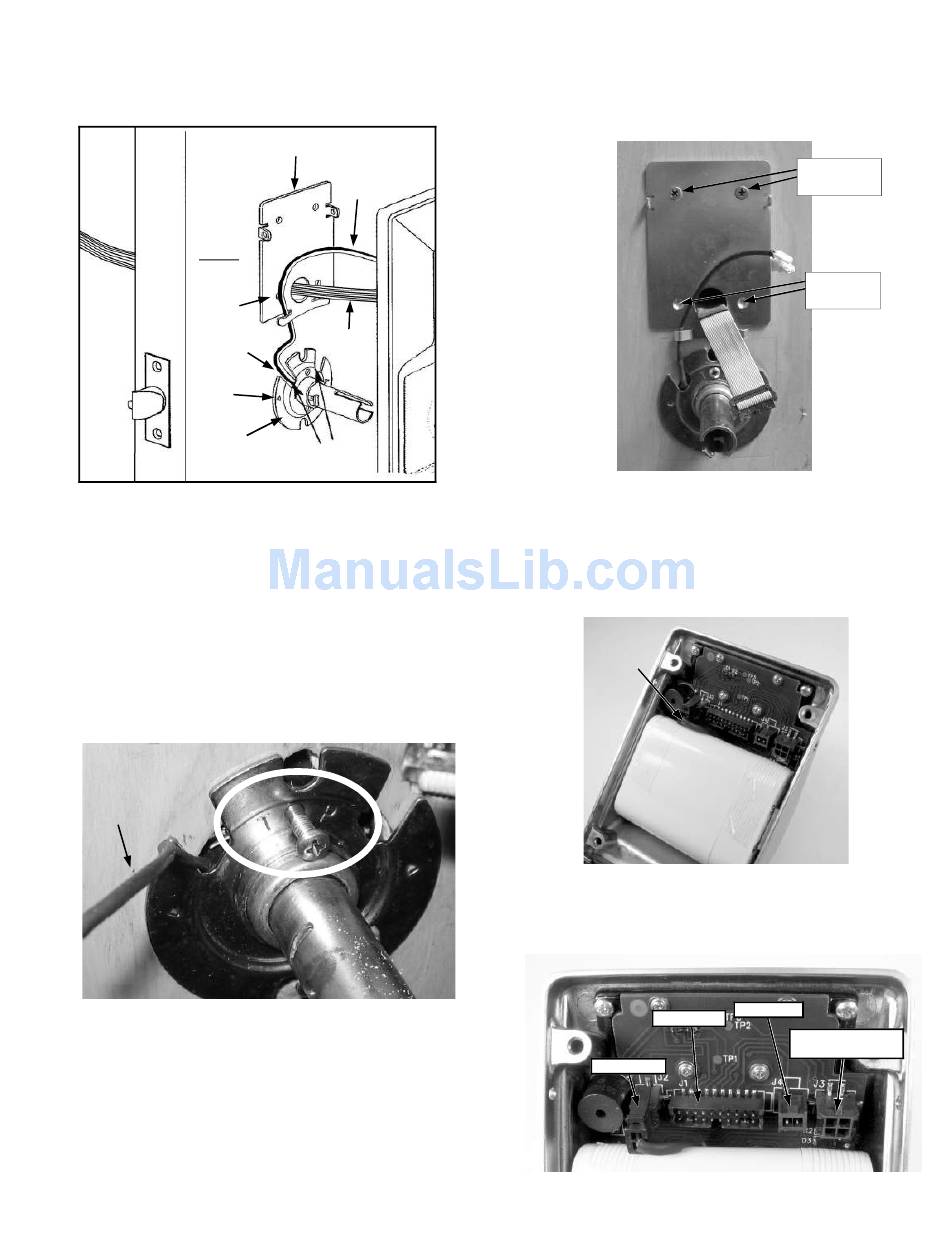

FIG. 11: INSTALL SECONDARY SIDE LOCK BODY
1. Place the secondary rose plate over spindle and on
door. Align the two slots with the two 3/8" holes in door
(the rose plate is marked with "TOP", circled in Fig. 12)
and the bent tabs facing door (the bent tabs bite into
wooden doors, preventing their rotation; for metal
doors, drill small holes to allow the rose plate to sit flush
against door). Fasten with two 8-32 x 1 1/4 Phillips pan
head screws through the secondary rose, engaging the
primary lock body. Do not over-tighten.
MOTOR
WIRE
FIG. 12: SECONDARY ROSE PLATE INSTALLATION
2. Position secondary mounting plate and pull the ribbon
cable through the mounting plate opening--be sure not
to pinch or cut the wires. Fasten secondary mounting
plate with two 8-32 flat head screws and two sheet
metal screws (do not over-tighten). Note: Be sure the
mounting plate is perfectly vertical before installing
sheet metal screws. See Fig. 13 for screw locations.
Note: As you tighten the screws, the secondary
4
SECONDARY MOUNTING PLATE
MOTOR
WIRE
BEWARE:
OF CUTTING
THE WIRES AT
THE RIBBON
CABLE
OPENING OR
THE MOTOR
RIBBON
WIRE NOTCH
CABLE
BENT
TABS
SECONDARY ROSE
SLOTS FOR
PLATE
MOTOR WIRE
mounting plate pulls in and secures the primary side
lock body to the door.
IMPORTANT: See Fig. 11 and 13: The motor wire
must come through either slot and be secured by the
motor cable notch without pinching or cutting the wire.
FIG. 13: SECONDARY MOUNTING PLATE INSTALLATION
3. Place battery pack inside secondary housing with bat-
tery plug under pack as shown. The back of the bat-
tery pack must be parallel to (flush with) the back of the
lock as shown in Fig 14.
BATTERY
WIRE
FIG. 14: INSTALL BATTERY PACK FLUSH WITH BACK OF LOCK
4. Plug the battery connector into the secondary side re-
ceptacle. See Fig. 15.
RIBBON CABLE
BATTERY WIRE
FIG. 15: RECEPTACLES LOCATED IN SECONDARY SIDE
8-32 FLAT HEAD
SCREWS
SHEET METAL
SCREWS
MOTOR WIRE
AUXILIARY POWER AND
REMOTE RELEASE
