ADJUSTING FOR DOOR THICKNESS

Plastic spacers either add or subtract the distance be-
tween the roses. Each spacer represents 1/8" of door
thickness. Locks are factory assembled for 1 3/4" thick
doors using 3 plastic spacers.
ROSE PLATE

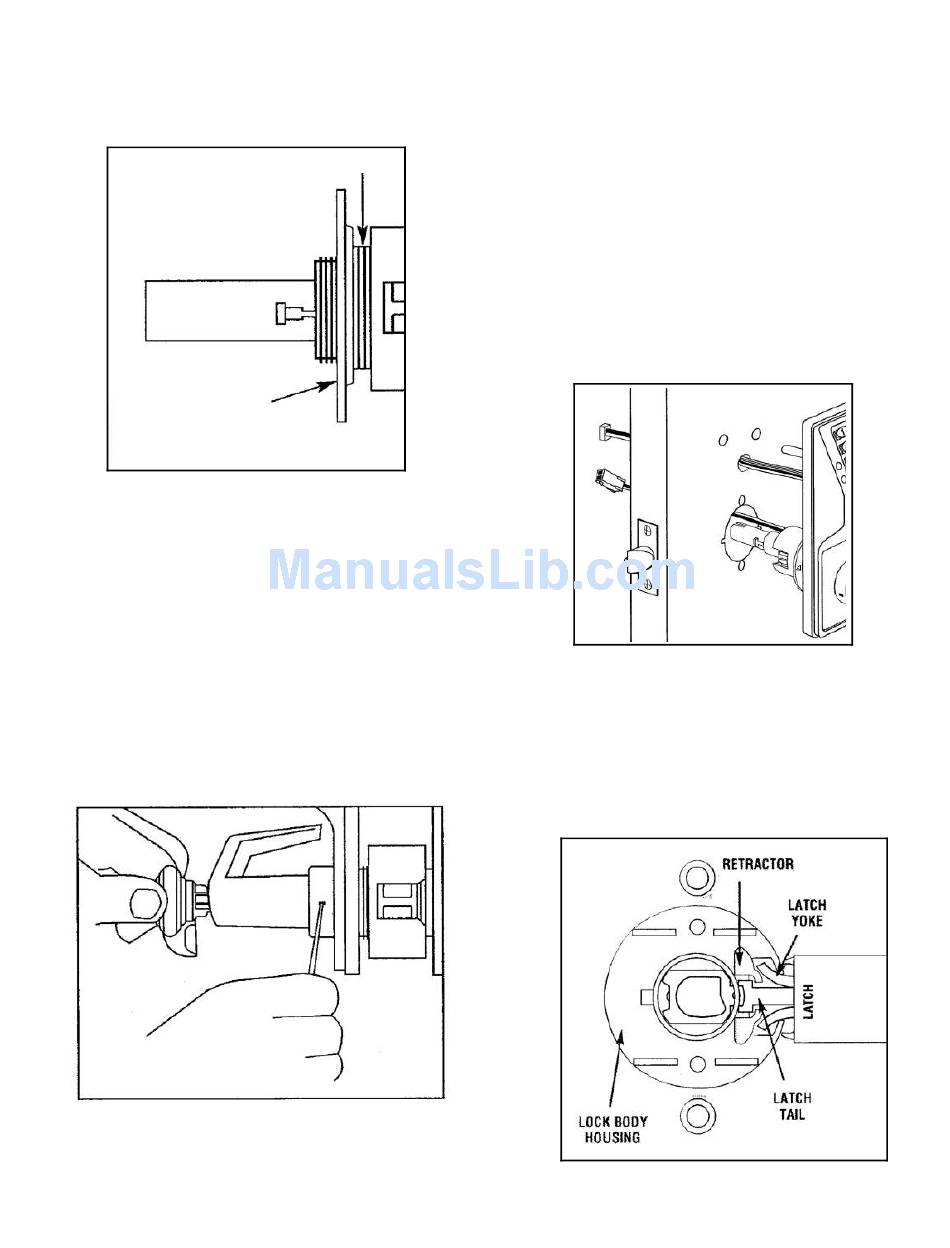

FIG. 7: ADJUST DOOR THICKNESS
For other door thicknesses:
1. Remove primary side lever by inserting the key into the
primary side cylinder and turning the key 45° (either
direction). Depress the lever catch and pull lever.
2. Remove primary housing and unscrew primary side
rose plate.
For 1 5/8" door, remove one plastic spacer.
For 1 7/8" door, add one plastic spacer.
3. Screw mounting rose plate up to spacers.
4. Reassemble housing and lever.
For other door thicknesses, consult factory.

TO REVERSE LEVER HANDING

FIG. 8: REVERSE LEVER HANDING
With the secondary lever and housing off:
1. Insert key into primary side cylinder, turn key 45° (either
direction) and depress lever catch. Pull lever off.
PLASTIC SPACERS
PRIMARY
MOUNTING
2. Use the primary side spindle to rotate the lock body
180 degrees. Be sure lever catch (shown in Fig. 6)
faces the door edge. If necessary, depress the lever
catch to allow the primary side spindle to rotate 180
degrees.
3. With key in cylinder untouched (still at 45°), position
lever on spindle and press until lever catch engages.
Remove key and test lever for proper engagement by
turning and pulling.
models, see pages 5 and 6.

LOCK INSTALLATION

Important: Before proceeding, be sure to physically block
the door to prevent its closing during the installation proce-
dure.
INSTALL PRIMARY SIDE AND LOCK BODY
FIG. 9: INSTALL PRIMARY SIDE AND LOCK BODY
(Lever, Housing & Lock body)
1. Insert motor wire plug through the large 2 1/8" hole and
the ribbon cable through the 1" hole as shown in Fig. 9.
2. Insert primary side lock body into door and be sure to
properly engage the lock body with the latch as shown
in Fig. 10.
FIG. 10: VIEW FROM SECONDARY SIDE OF DOOR
For interchangeable core (IC)
3
