SmartNode 2290 Series
Leased-Line Extenders over IP
Quick Start Guide
Important
intended nor approved for use in an industrial or residential environment.
Part Number: 07M2292-QS, Rev. B
Revised: February 9, 2012
—This is a Class A device and is intended for use in a light industrial environment. It is not
Sales Office: +1 (301) 975-1000
Technical Support: +1 (301) 975-1007
E-mail: support@patton.com
WWW: www.patton.com
Advertisement
Table of Contents
Related Manuals for Patton SmartNode 2290 Series
Summary of Contents for Patton SmartNode 2290 Series
-
Page 1: Quick Start Guide
SmartNode 2290 Series Leased-Line Extenders over IP Quick Start Guide Important —This is a Class A device and is intended for use in a light industrial environment. It is not intended nor approved for use in an industrial or residential environment. -
Page 2: Installing The Smartnode Extender
• This device contains no user serviceable parts. The equipment shall be returned to Patton Electronics for repairs, or repaired by qualified service personnel. WARNING • Mains Voltage: Do not open the case when the power cord is con- nected. For systems without a power switch, line voltages are present within the power supply when the power cord is connected. -
Page 3: Installing An Interface Cable On The Extender's Voice Ports

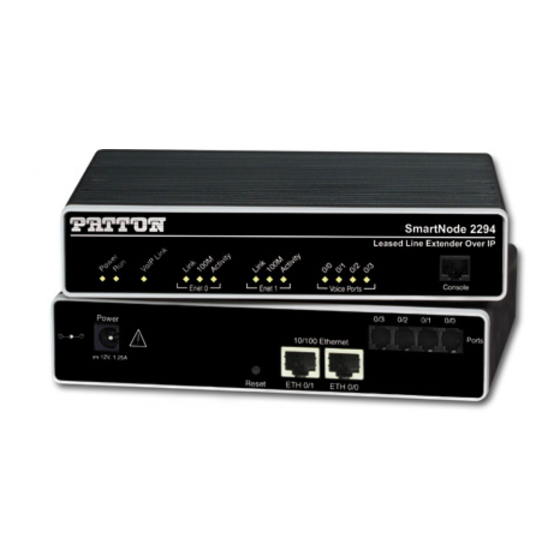

Figure 1. Rear view showing location of Ethernet connectors and voice ports (SmartNode 2294 shown) . 2 5 0 / 1 0 / 0 r t s RJ-11, male RJ-11, male FXS connection Figure 2. SmartNode 2290 Series Quick Start Guide... - Page 4 FXO connection Figure 3. o le r ts Socket Plug RJ-11 pinout diagram Figure 4. RJ-11 socket Table 1. Signal Ring (-) Tip (+) Unit must not connect directly to telecom network voltage (TNV). Note SmartNode 2290 Series Quick Start Guide...
-
Page 5: Installing The Ethernet Cable
0 / 1 0 / 0 r t s Straight-through cable RJ-45, male RJ-45, male 1 Rx+ 2 Rx- 3 Tx+ 6 Tx- Connecting a SmartNode 2294 Series device to a hub Figure 5. SmartNode 2290 Series Quick Start Guide... -
Page 6: Connecting To External Power Source
Verify that the green Power LED is lit. 2.0 Configuring the SmartNode extender Patton SmartNodes can be used for a wide variety of IP-based network applications. To support and ease the configuration of the SmartNodes configuration, templates for the most important applications are available on the Patton server at www.patton.com/voip. -
Page 7: Configure The Ip Address
Factory default IP address and network mask configuration Table 3. IP Address Network Mask Interface Ethernet 0 (ETH0) DHCP DHCP 192.168.1.1 255.255.255.0 Interface Ethernet 1 (ETH1) Both Ethernet interfaces are activated upon power-up. SmartNode 2290 Series Quick Start Guide... -
Page 8: Connect With The Serial Interface
PC or workstation that supports the serial interface (e.g. HyperTerm). Serial Terminal o l e r t s A Patton Model 16F-561 RJ45 to DB-9 adapter is included with Note each SmartNode Series device Figure 8. - Page 9 Reboot both units and connect them back-to-back through their Ethernet 0/1 ports. Voice connections will automatically be set up between the units. The steps above will configure the IP addresses as well as the required configurations for voice connections. SmartNode 2290 Series Quick Start Guide...
-
Page 10: Additional Information
3.0 Additional Information For detailed information about configuring and operating guidance, set up procedures, and troubleshooting, refer to the SmartNode 2290 Series User Manual available online at www.patton.com/manuals/ and the SmartWare Software Configuration Guide available online at www.patton.com/ SN2290.pdf smartnode. -
Page 11: Compliance Information
The safety advice in the documentation accompanying this product shall be obeyed. The conformity to the above directive is indicated by CE sign on the device. The signed Declaration of Conformity can be downloaded at www.patton.com/certifications. SmartNode 2290 Series Quick Start Guide... -
Page 12: Copyright Statement
The information in this document is subject to change without notice. Patton Electronics assumes no liability for errors that may appear in this document. Trademarks statement The term SmartNode is a trademark of Patton Electronics Company. All other trademarks presented in this docu- ment are the property of their respective owners. Warranty For warranty, trademark and compliance information, refer to the SmartNode 2290 Series User Manual located online at www.patton.com/manuals.
