MIG/MAG operating point
The operating point (welding output) is specified using the principle of MIG/MAG one-dial operation, i.e.
the user need only specify the operating point by setting the required wire speed, for example, and the
digital system will calculate the optimum values for welding current and voltage (operating point).
The operating point setting can also be specified using the accessory components such as the remote
control, welding torch, etc.
5.8.8.1
Selecting the display unit
AMP
HOLD

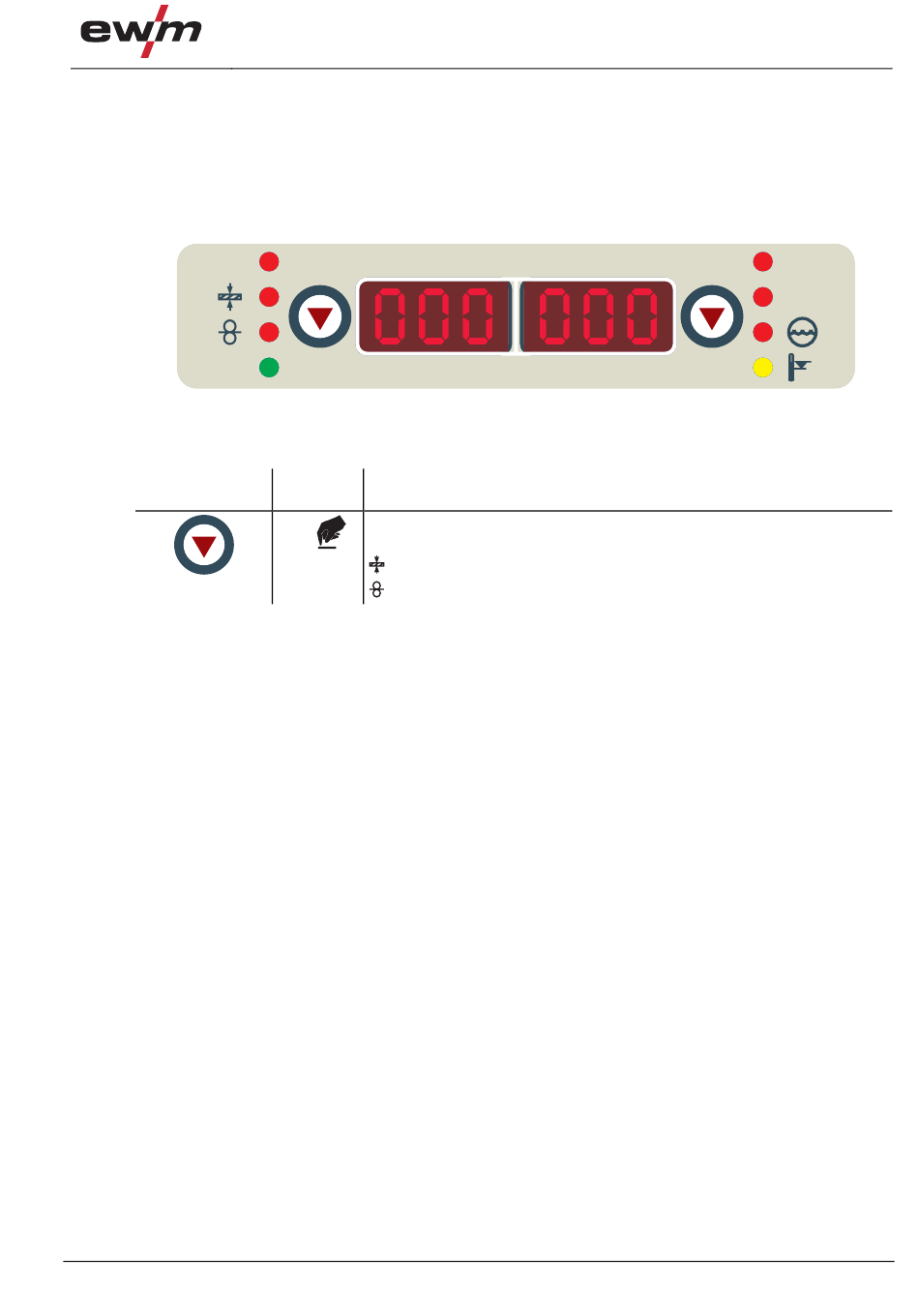

The operating point (welding performance) can be displayed as the welding current, material thickness or
wire speed.
Operating
element
Application example
Aluminium is to be welded.
•
Material = AlMg,
•
Gas = Ar 100%,
•
Wire diameter = 1.2 mm
The correct wire speed is not known and is to be determined.
•
Select the appropriate JOB (see "JOB list" sticker)
•
Switch to the material thickness display
•
Set the material thickness as appropriate (e.g. 5 mm)
•
Switch to the wire speed display
The resulting wire speed will be shown (e.g. 8.4 m/min).
5.8.8.2
Accessory components for operating point setting
The operating point can also be set with various accessory components such as
•
remote controls
•
special torches
•
PC software
•
robot and industrial bus interfaces (optional mechanised welding interface required – not possible for
all machines in this series!)
You will find an overview of accessory components in the "Accessories" chapter. See the operating
instructions for the machine in question for a more detailed description of the individual machines and
their functions.
099-005157-EW501
09.06.2011
Taurus Synergic
Action
Result
Switching the display between:
n x
Welding current
AMP
Material thickness
Wire speed
Design and function
Figure 5-12
MIG/MAG welding
VOLT
PROG
