USB port
Network
abnormal
Net
indication
light
HDD
abnormal
HDD
indication
light
IR Receiver IR
Alarm
indication Alarm
light

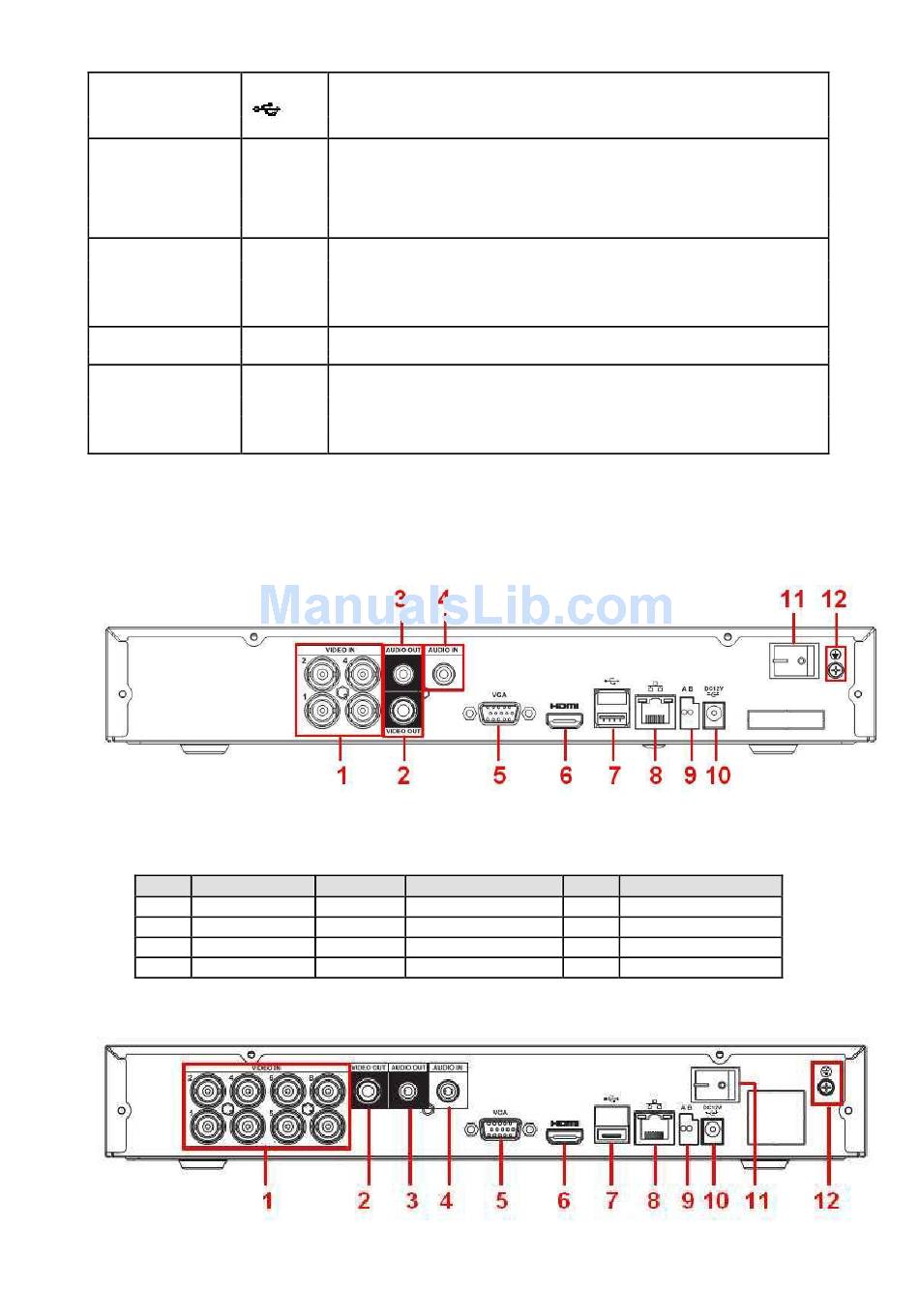

2.2 Rear Panel

The 4-channel series product rear panel is shown as in Figure 2-2.
Please refer to the following sheet for detailed information.
SN Name
1 Video input
4 Audio input
7 USB port
10 Power socket
The 8-channel series product rear panel is shown as in Figure 2-3.
To connect USB storage device, USB mouse.
Network error occurs or there is no network connection, the
light becomes red to alert you.
HDD error occurs or HDD capacity is below specified
threshold value, the light becomes red to alert you.
It is to receive the signal from the remote control.
Here you can view there is external alarm input or not. The
light becomes on when there is an external alarm. The light
become off when the external alarm stops.
Figure 2-2
SN Name
2 Video output
5 Video VGA output
8 Network port
11 On/off button
SN Name
3 Audio output
6 HDMI port
9 RS-485 input port
12 GND port
