4.5.3 Video Loss

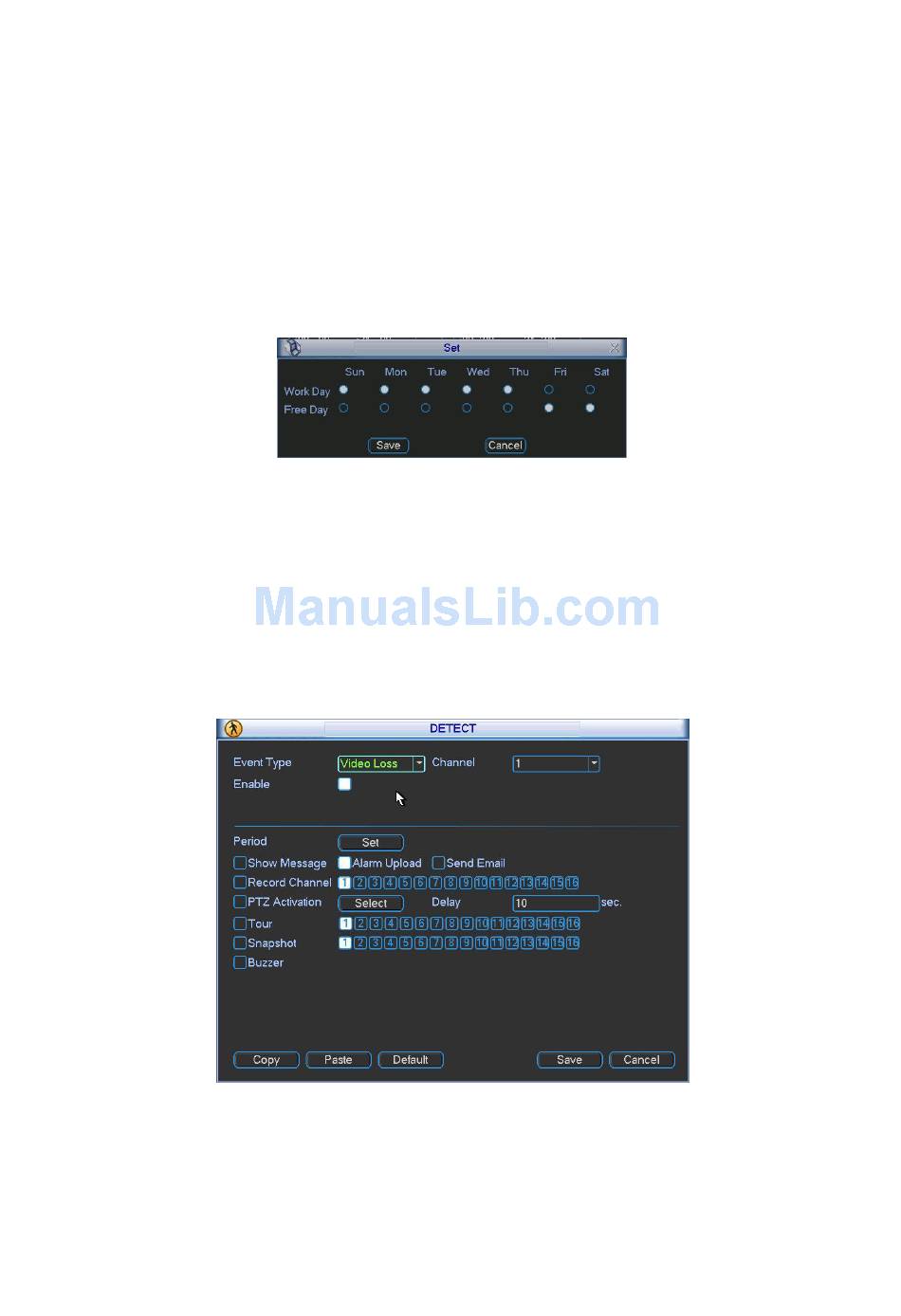

In Figure 4-18, select video loss from the type list. You can see the interface is shown as in
Figure 4-23. This function allows you to be informed when video loss phenomenon
occurred. You can enable show message function.
Tips:
You can enable preset/tour/pattern activation operation when video loss occurs.
Please refer to chapter 4.5.2 motion detection for detailed information.

4.5.4 Camera Masking

When someone viciously masks the lens, or the output video is in one-color due to the
environments light change, the system can alert you to guarantee video continuity. Camera
masking interface is shown as in Figure 4-24. Here you can enable alarm output or show
message in the screen.
Figure 4-21
Figure 4-22
Figure 4-23
