Data bit: Select data bit.
•
Stop bit: Select stop bit.
•
Parity: There are three choices: none/odd/even.
After completed all the setups please click save button, system goes back to the previous menu.
For detailed setup, please refer to chapter 4.9 preset/patrol/pattern/scan.

5.3.7 Display

Display setup interface is shown as below. See Figure 5-24.
•
Transparency: Here is for you to adjust transparency. The value ranges from 128 to 255.
•
Channel name: Here is for you to modify channel name. System max support 25-digit (The
value may vary due to different series). Please note all your modification here only applies
to DVR local end. You need to open web or client end to refresh channel name.
•
Time display: You can select to display time or not when system is playback.
•
Channel display: You can select to channel name or not when system is playback.
•
Resolution: There are five options: 1920*1080,1280× 1024(default),1280× 720,1024× 768,
800*600. Please note system needs to reboot to activate current setup.
•
Enable tour: Activate tour function.
•
Interval: Input proper interval value here. The value ranges from 5-120 seconds. In tour
process, you can use mouse or click Shift to turn on window switch function.
for opening switch function,
•
Motion tour type: System support 1/4 window tour.
•
Alarm tour type: System support 1/4 window tour.
Please highlight icon
After completing all the setups please click save button, system goes back to the previous menu.

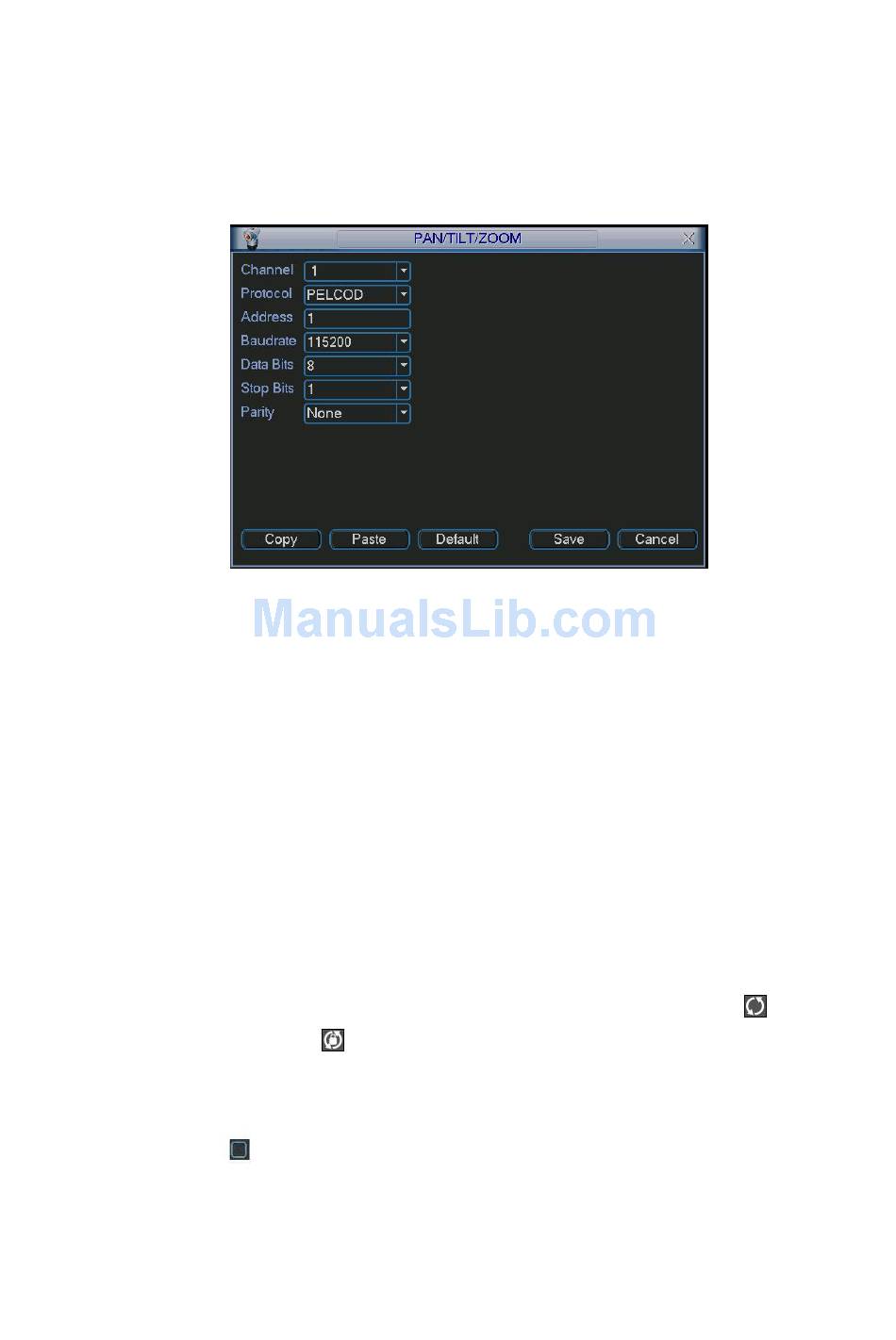

Figure 5-23
stands for closing switch function.
to select the corresponding function.
