Advanced

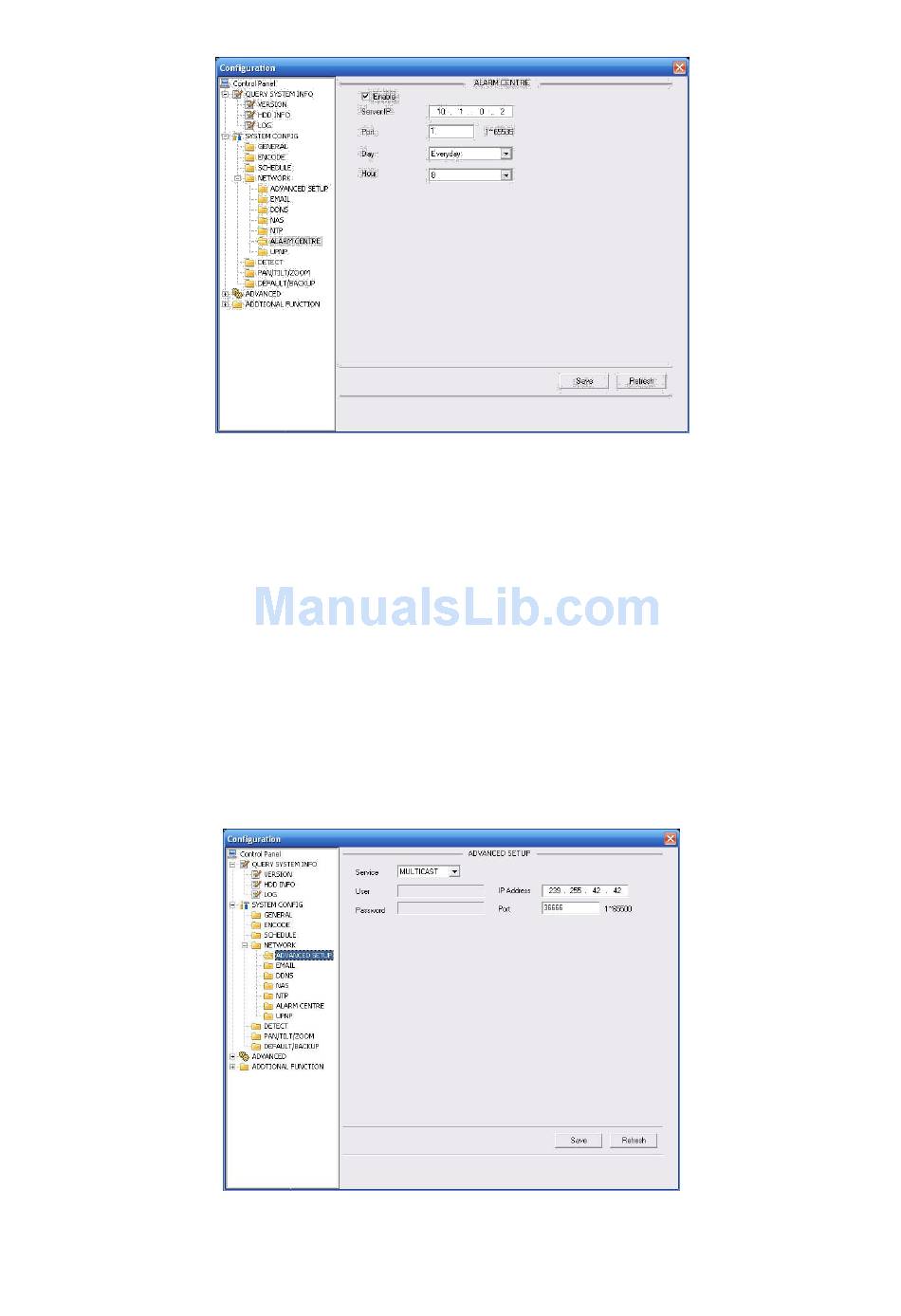

The advanced interface is shown as in Figure 7-40.
Multiple cast
Please refer to chapter 5.3.5.3 for detailed multiple cast setup information.
PPPoE
Please input the PPPoE user name and password you get from the IPS (internet service
provider) and enable PPPoE function. Please save current setup and then reboot the device to
get the setup activated.
Device connects to the internet via PPPoE after reboot. You can get the IP address in the
WAN from the IP address column.
Note:
After PPPoE successful dial, you need to go to the device local end to get device current
IP address and then use the client-end to access this IP address.
Figure 7-39
Figure 7-40
101
