Backup - Eclipse Security Tribrid User Manual


Modify
Double click one mark information item, you can see system pops up a dialogue box for
you to change mark information. You can only change mark name here.

Delete
Here you can check the mark information item you want to delete and then click Delete
button, you can remove one mark item. .
Note

After you go to the mark management interface, system needs to pause current
playback. System resume playback after you exit mark management interface.

If the mark file you want to playback has been removed, system begin playbacking
from the first file in the list.

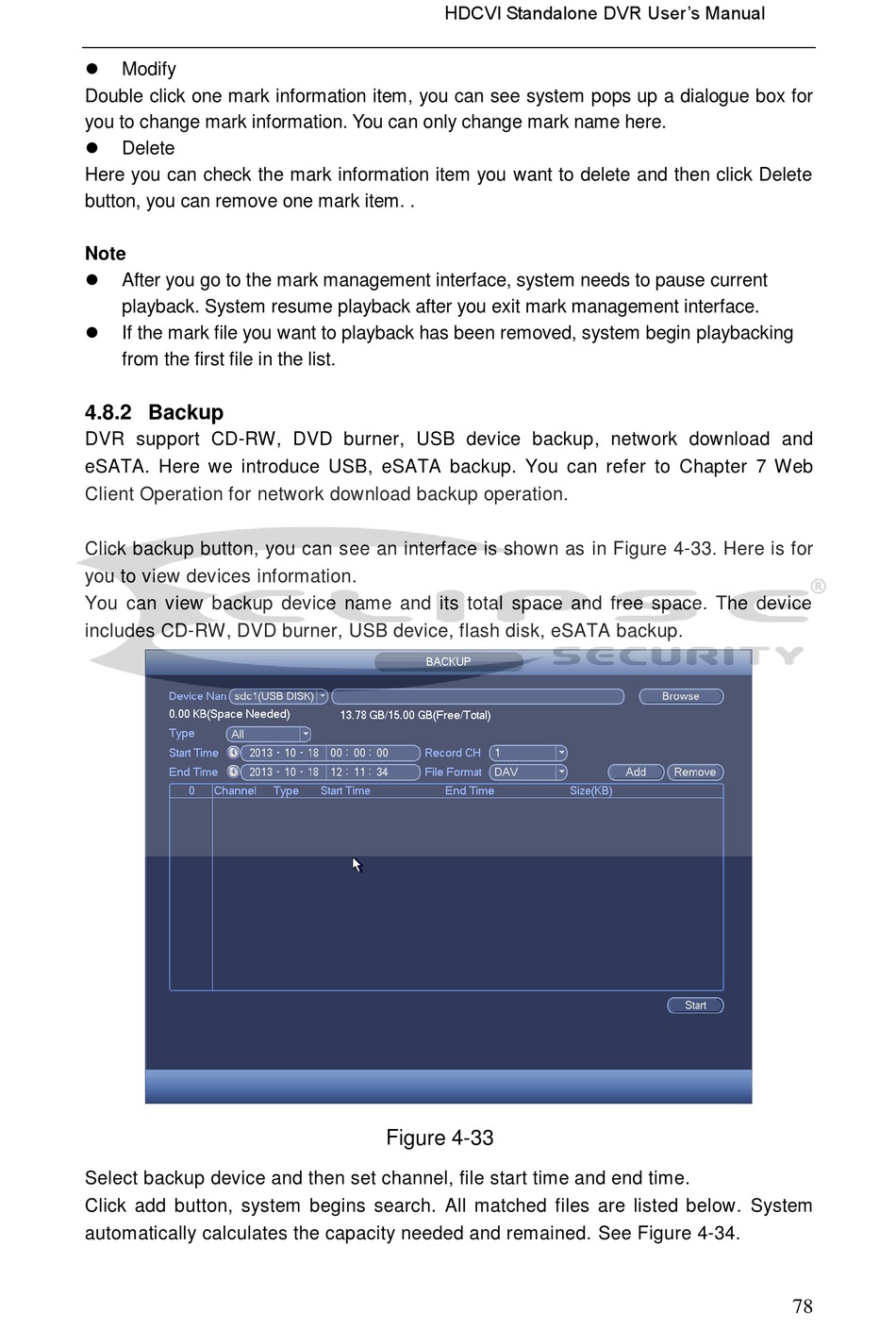

4.8.2 Backup

DVR support CD-RW, DVD burner, USB device backup, network download and
eSATA. Here we introduce USB, eSATA backup. You can refer to Chapter 7 Web
Client Operation for network download backup operation.
Click backup button, you can see an interface is shown as in Figure 4-33. Here is for
you to view devices information.
You can view backup device name and its total space and free space. The device
includes CD-RW, DVD burner, USB device, flash disk, eSATA backup.
Select backup device and then set channel, file start time and end time.
Click add button, system begins search. All matched files are listed below. System
automatically calculates the capacity needed and remained. See Figure 4-34.
HDCVI Standalone DVR User's Manual
Figure 4-33
78
