3 Installation and Connections

Note: All the installation and operations here should conform to your local electric
safety rules.

3.1 Check Unpacked DVR

When you receive the DVR from the forwarding agent, please check whether there is any
visible damage. The protective materials used for the package of the DVR can protect
most accidental clashes during transportation. Then you can open the box to check the
accessories.
Please check the items in accordance with the list. Finally you can remove the protective
film of the DVR.
Note
Remote control is not a standard accessory and it is not included in the accessory bag.

3.2 About Front Panel and Real Panel

The model in the front panel is very important; please check according to your purchase
order.
The label in the rear panel is very important too. Usually we need you to represent the
serial number when we provide the service after sales.

3.2.1 HDD Installation

This series DVR has 1 to 8 HDDs (no limitation for capacity). Please use HDD of 7200rpm
or higher. Usually we do not recommend the HDD for the PC.You can refer to the
Appendix for recommended HDD brand.
All figures listed here are for reference only.
Please follow the instructions listed below to install hard disk.
3.2.2 1U Series
The mini 1U series DVR has one SATA HDD and 1U series DVR has two SATA HDDs.

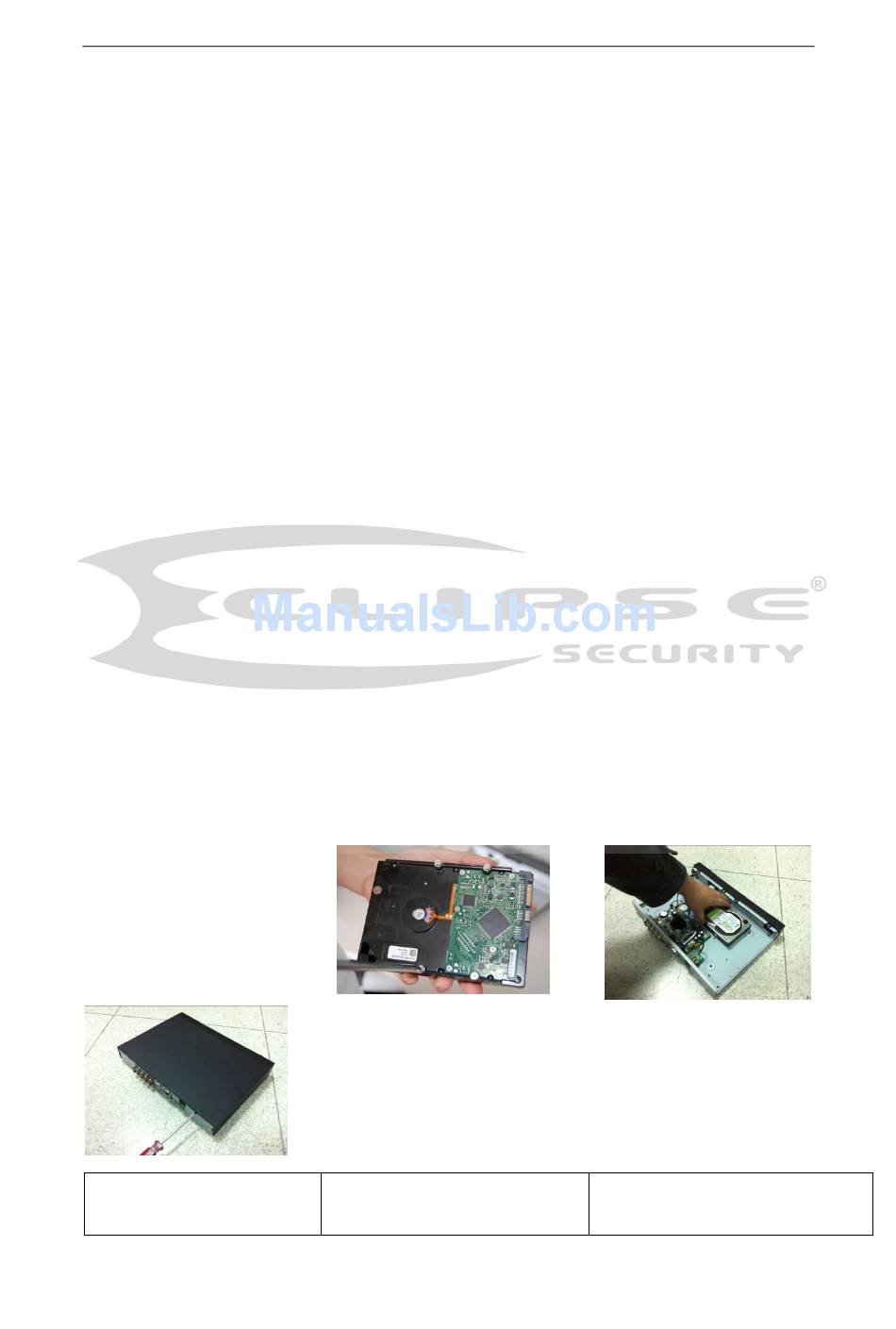

1. Loosen the screws of the
upper cover and side panel.
HDCVI Standalone DVR User's Manual
2. Fix four screws in the HDD
(Turn just three rounds).
3. Place the HDD in accordance with
the four holes in the bottom.
