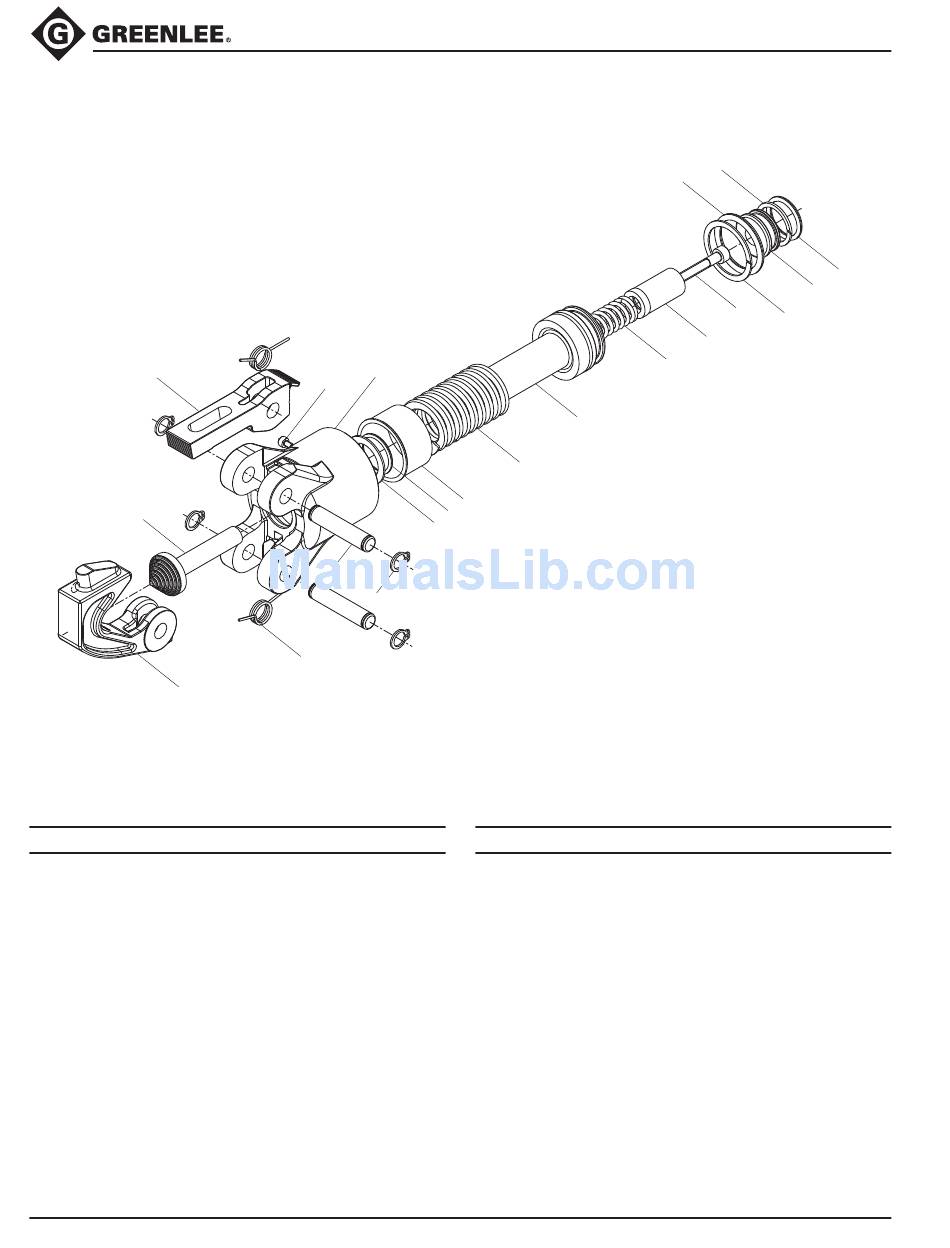

Head and Ram Illustration and Parts List—EK6IDL
3
8
2
Key Part No. Description
1 52067891 Fixed head ................................................. 1
52068198 Head and latch kit (includes 2, 3)
2 Movable head ............................................ 1
3 Latch head ................................................ 1
52068196 Fastener kit (includes 4–7)
4 Pin ............................................................. 2
5 Retaining ring ............................................ 4
6 Spring ........................................................ 2
7 Screw ........................................................ 1
8 52067893 Cone die .................................................... 1
52068197 Ram kit (includes 9–13)
9 Ram ........................................................... 1
10 Sleeve ........................................................ 1
11 Piston cup, small ....................................... 1
12 Bushing ..................................................... 1
13 Adapter disk .............................................. 1
Greenlee / A Textron Company
1
7
12
17
13
4
5
6
Qty Key
14
15
16
17*
18*
19*
20*
21*
8
Battery-powered In-line Tools
19
15
9
14
Part No. Description
52068199 Spring kit (includes 14, 15)
Compression spring .................................. 1
Spring ........................................................ 1
52068200 Hex screw, M5 x 3 ..................................... 1
O-ring (included in 50047957) ................... 1
Piston backup ring
(included in 50047957) .............................. 1
O-ring, 28.17 x 3.53 N870
(included in 50047957) .............................. 1
Backup ring (included in 50047957) .......... 1
O-ring (included in 50047957) ................... 1
4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
20
21
11
16
18
10
Qty
