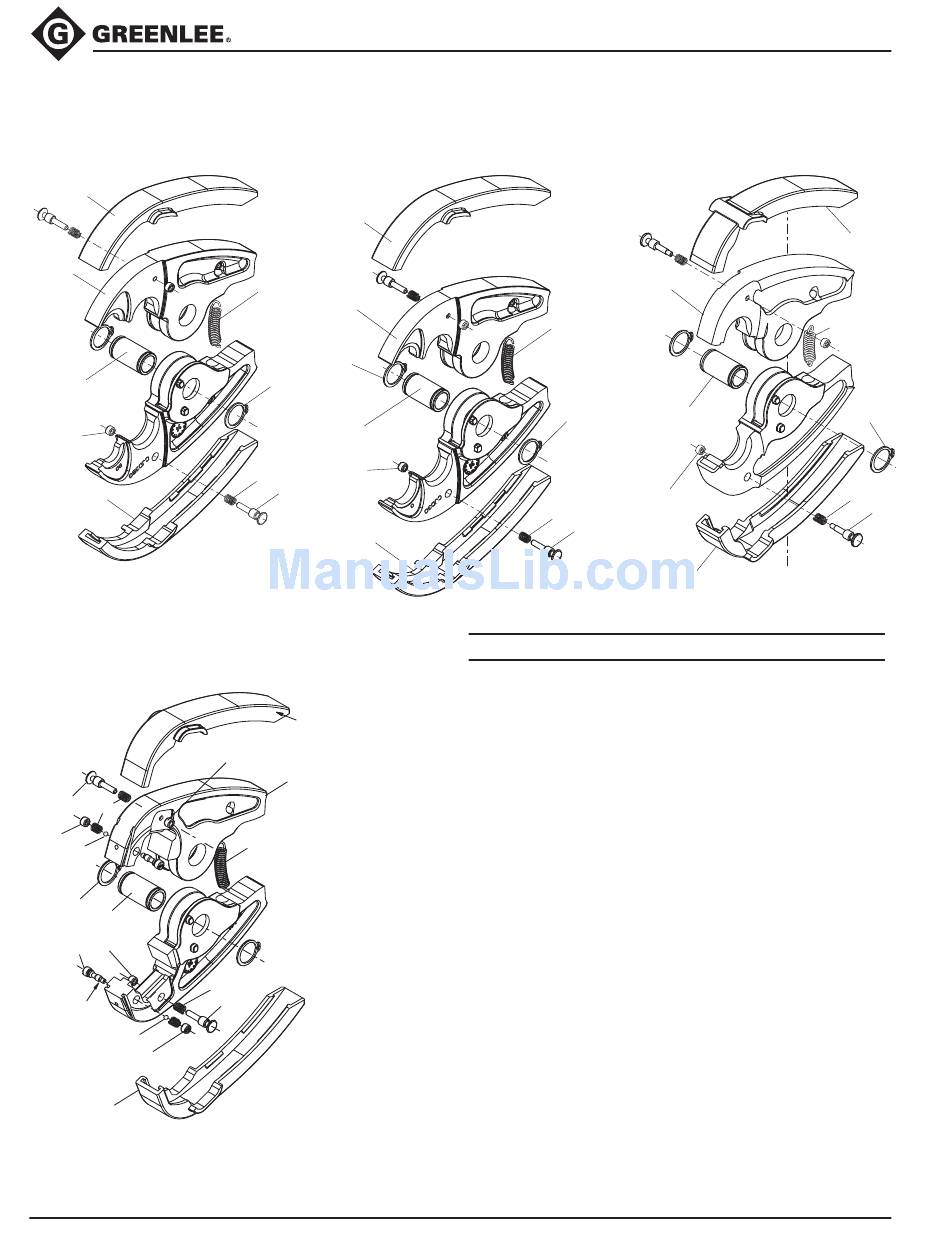

Illustration and Parts List—Optional Accessories—EK628L
CJD3BG
118A
110A
114
115
118A
CJK Kearney
117
116
119
120
113
114
115
121
116
glued in with
Loctite 270
(green) 120
119
118B
Greenlee / A Textron Company
118A
111
110C
113
113
114
115
116
117
118A
118B
115
110B
111
117
Battery-powered In-line Tools
CJD3O
111
113
116
117
Key Part No. Description
52027121 CJD3BG crimping jaw unit
(includes 110–118)
CJD3O crimping jaw unit
52027122
(includes 110–118)
52024068 CJD3 crimping jaw unit (includes 110–118)
52020114 CJK Kearney crimping jaw unit
(includes 110–118, 119-121)
110A Jaw, CJD3BG ............................................ 2
110B Jaw, CJK ................................................... 2
110C Jaw, CJD3O ............................................. 2
110D Jaw, CJD3 ................................................. 2
111 52022544 Extension spring ........................................ 1
52049402 Jaw pivot kit (includes 113, 114)
113 Retaining ring ............................................ 2
114 Pin pivot .................................................... 1
115 Bushing ..................................................... 2
116 Compression spring .................................. 2
117 Lock adapter ............................................. 2
118A 52025125 Jaw covers, CJD3O/CJD3BG (set of 2) .... 1
118B 52022386 Jaw covers, CJK (set of 2) ........................ 1
118C 52021086 Jaw covers, CJD3 (set of 2) ...................... 1
119 Bushing ..................................................... 2
120 Ball, 3 mm ................................................. 2
121 Locking pin ................................................ 1
50103750 Die pin kit, "W"-style dies
(includes 115–117)
50105108 Die pin kit, Kearney-style dies
(includes 116, 119–121)
14
