Greenlee GATOR EK6IDL Service Manual page 18

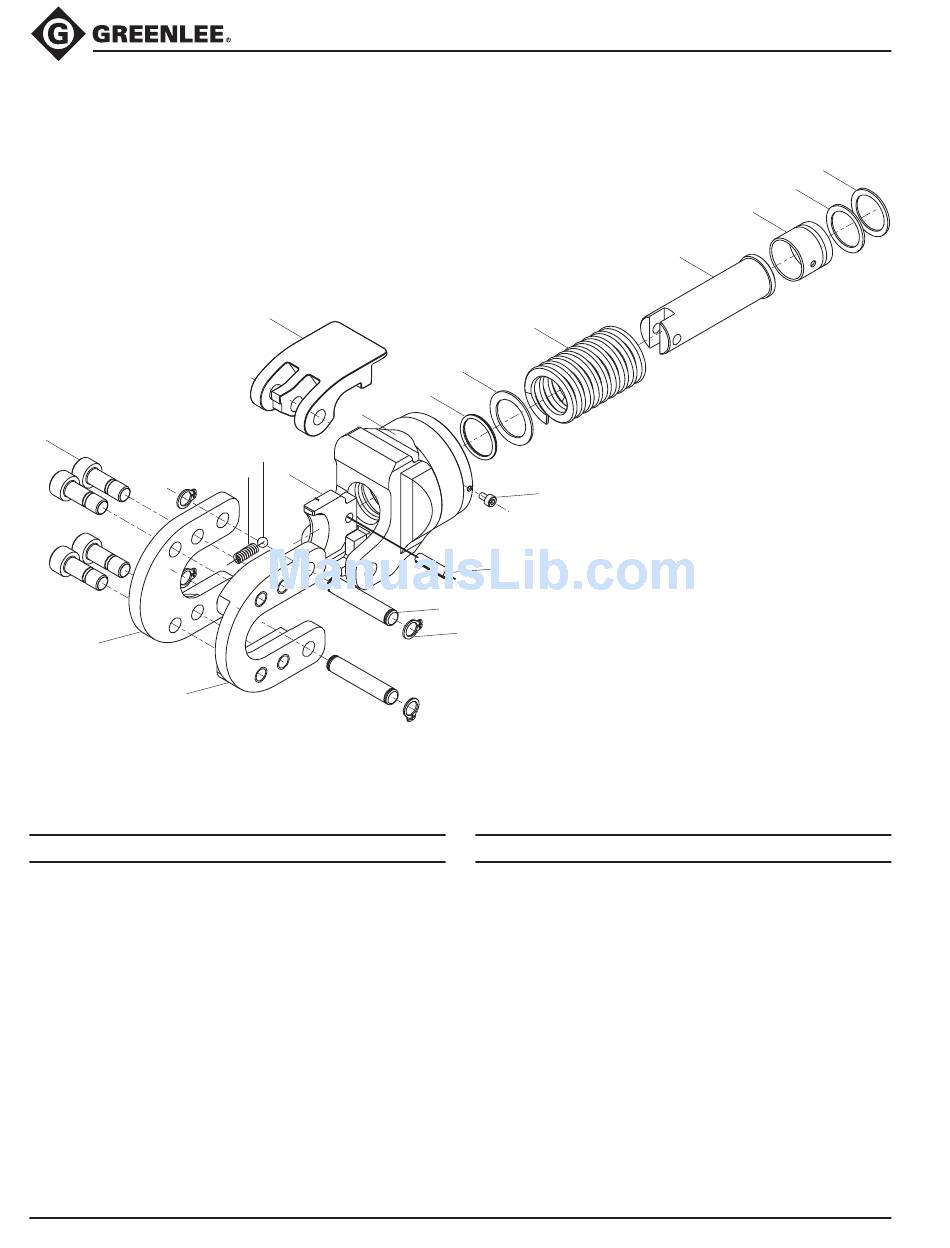

Head and Ram Illustration and Parts List—ESG25L
17
18
19
Key Part No. Description
Head assembly (includes 1–19)
52057103
1* Backup ring (included in 50047957) .......... 1
2* O-ring (included in 50047957) ................... 1
3 52020648 Piston cup ................................................. 1
4 52057107 Ram ........................................................... 1
5 Compression spring .................................. 1
6 Adapter disk .............................................. 1
7* O-ring (included in 50047957) ................... 1
8 52057109 Base .......................................................... 1
9 52057108 Latch ......................................................... 1
Greenlee / A Textron Company
9
8
15
16 14
Battery-powered In-line Tools
5
6
7
10
11
12
13
Qty Key Part No.
10 52057106
11 52057111
12 52057115
13
14 52057105
15 52057114
16 52057113
17 52057112
18 52057104
19 52057110
18
4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
3
4
Description
Screw ........................................................ 1
Blade pin ................................................... 1
Pivot pin .................................................... 2
Retaining clip ............................................. 4
Movable blade ........................................... 1
Ball ............................................................ 1
Spring ........................................................ 1
Screw ........................................................ 4
Fixed blade ................................................ 1
Guide plate ................................................ 1
1
2
Qty
